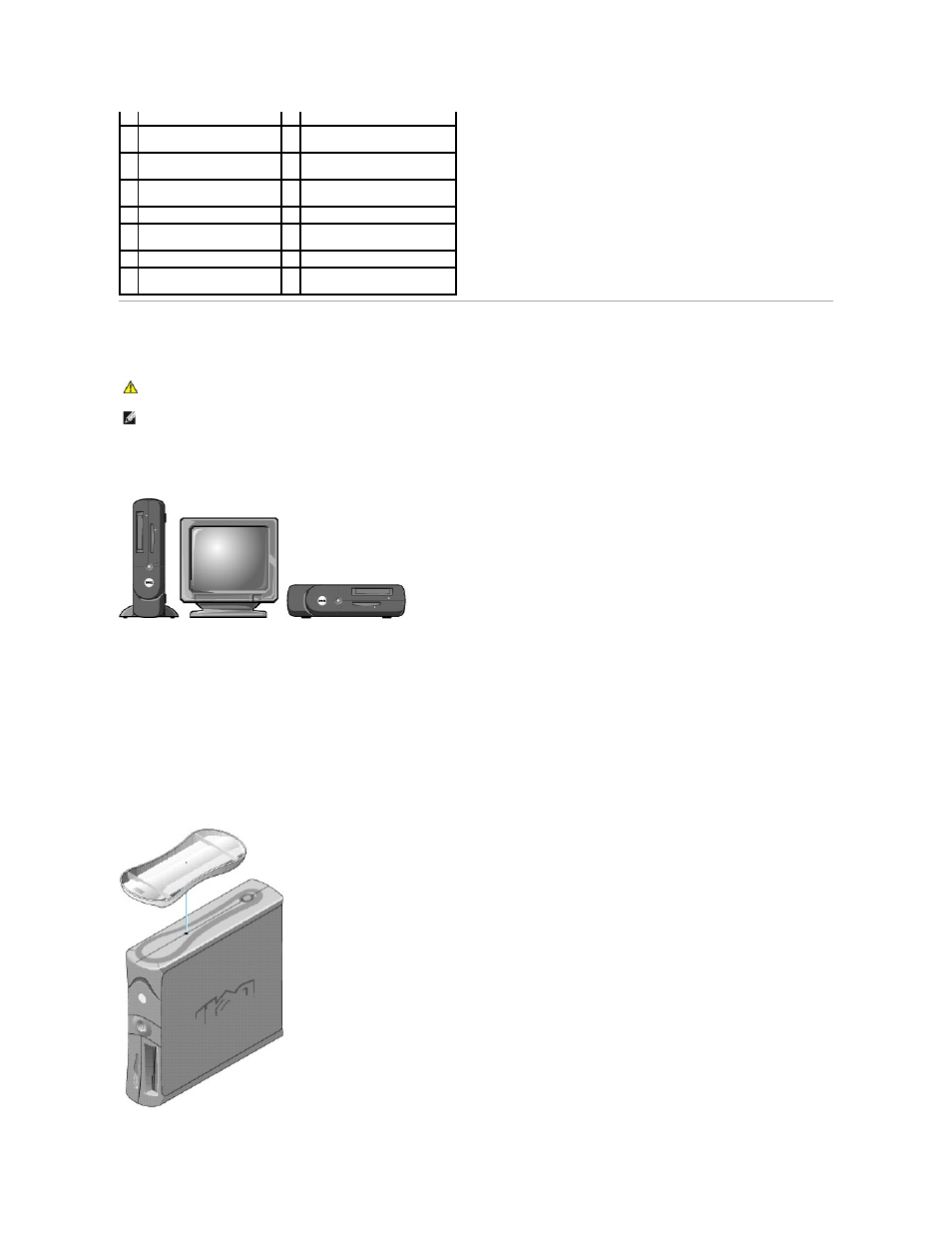

Attaching and Removing the Computer Stand
Your computer can be used in either a vertical or horizontal position.
To use the computer in a vertical position, you must attach the computer stand:
1. Place the computer on its right side so that the drive bays are at the bottom.
2. Fit the stand onto what was the left side of the computer:
a. Position the stand as shown in the following illustration by aligning the large round hole in the stand with the securing button on the side of the
cover and aligning the captive screw in the stand with the screw hole in the cover.
b. When the stand is in place, tighten the thumbscrew.
3. Rotate the computer so that the stand is at the bottom and the drives are at the top.
3 battery socket (BATTERY) 13 power connector (12VPOWER)
4 front-panel connector
(FRONTPANEL)
14 processor and heat sink
connector (CPU)
5 IDE hard-drive connector
(IDE1)
15 memory module connectors
(DIMMs 1 and 2)
6 serial ATA hard-drive
connector (SATA1)
16 processor fan connector (FAN)
7 internal speaker (SPEAKER) 17 password jumper
8 standby power light
(AUX_PWR)
18 power connector (POWER)
9 PCI card connector (PCI1)
10 PCI riser board connector
(PCI2)
CAUTION: Before you begin this procedure, follow the safety instructions in the Product Information Guide.
NOTE: Place your computer on a soft surface to prevent scratching the top cover.
