Chassis Speaker
Dell™ OptiPlex™ 170L User's Guide
Installing the Optional Chassis Speaker
Removing the Chassis Speaker
Installing the Optional Chassis Speaker
1. Follow the procedures in " Before You Begin ."
2. Lay the computer on its side so that the system board is on the bottom of the inside of the computer.
3. Insert the four tabs on the speaker into four slots on the chassis.
4. Slide the speaker toward the hard drive until the speaker is seated securely.
5. Attach the cable to the connector on the I/O panel .
Desktop Computer
Minitower Computer
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

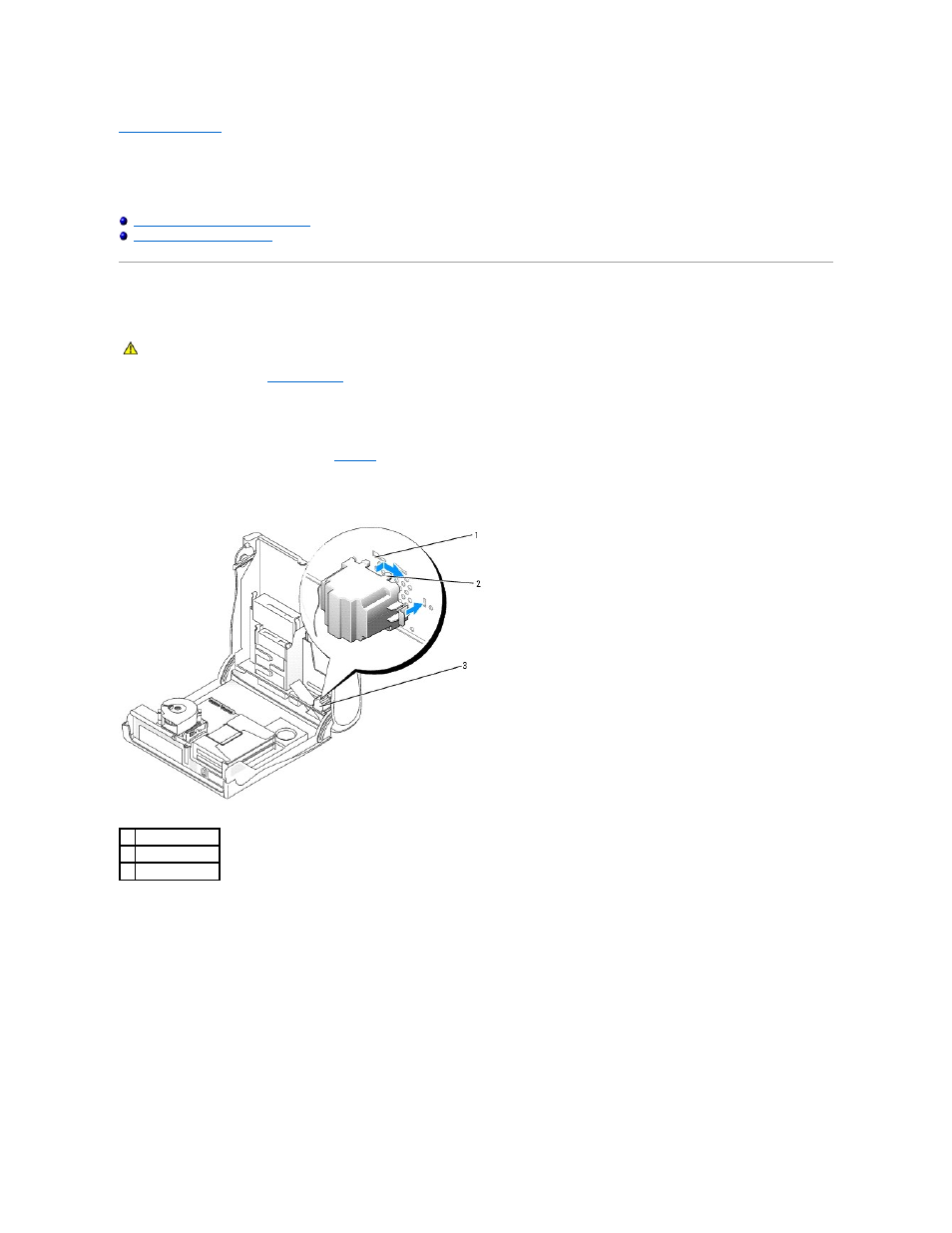

1 chassis slots (4)
2 speaker tabs (4)
3 chassis speaker
