Processor
Dell™ OptiPlex™ 170L User's Guide
Replacing the Processor
1. Follow the procedures in " Before You Begin ."
2. Disconnect the cooling fan power cable from the FAN connector on the system board (see " System Board Components ").
3. Disconnect the power cable from the 12VPOWER connector on the system board.

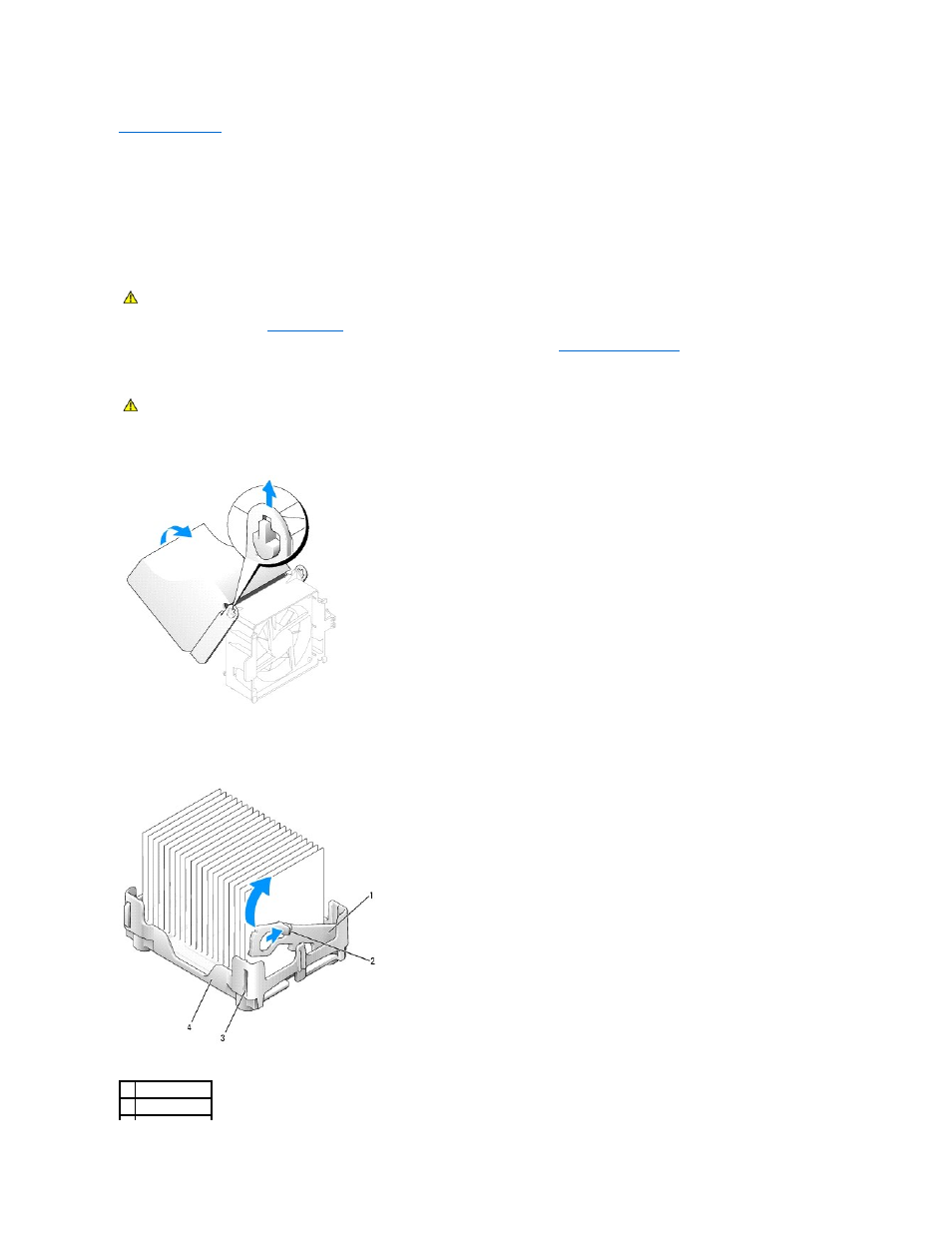

4. Pull up and rotate the airflow shroud.
5. Remove the heat sink:
a. Press the tab on the green securing clip to remove the clip from the retention base.
CAUTION: Before you begin this procedure, follow the safety instructions in the Product Information Guide.
CAUTION: The heat sink can get very hot during normal operation. Be sure that the heat sink has had sufficient time to cool before you touch it.
1 securing clip
2 tab
