Removing the Chassis Speaker

1.



Disconnect the cable from the system board.

2.



Press the lever to unseat the speaker, slide the speaker toward the CD drive, and then remove it.

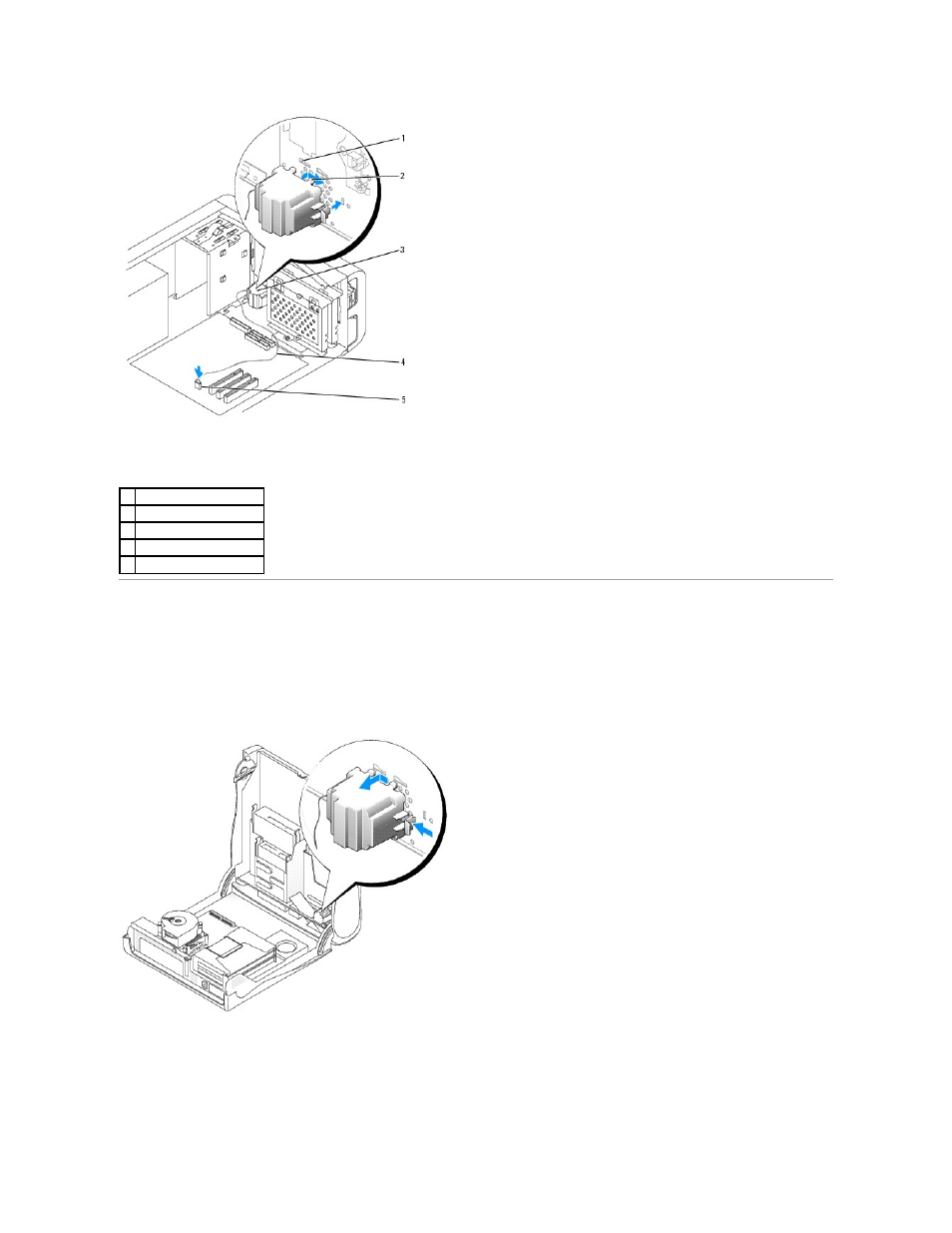

Desktop Computer



























Minitower Computer





1  chassis slots (4)



2  speaker tabs (4)



3  chassis speaker



4  chassis speaker cable



5  chassis speaker connector
