Dell Inspiron 3500 - Manual (Page 137)

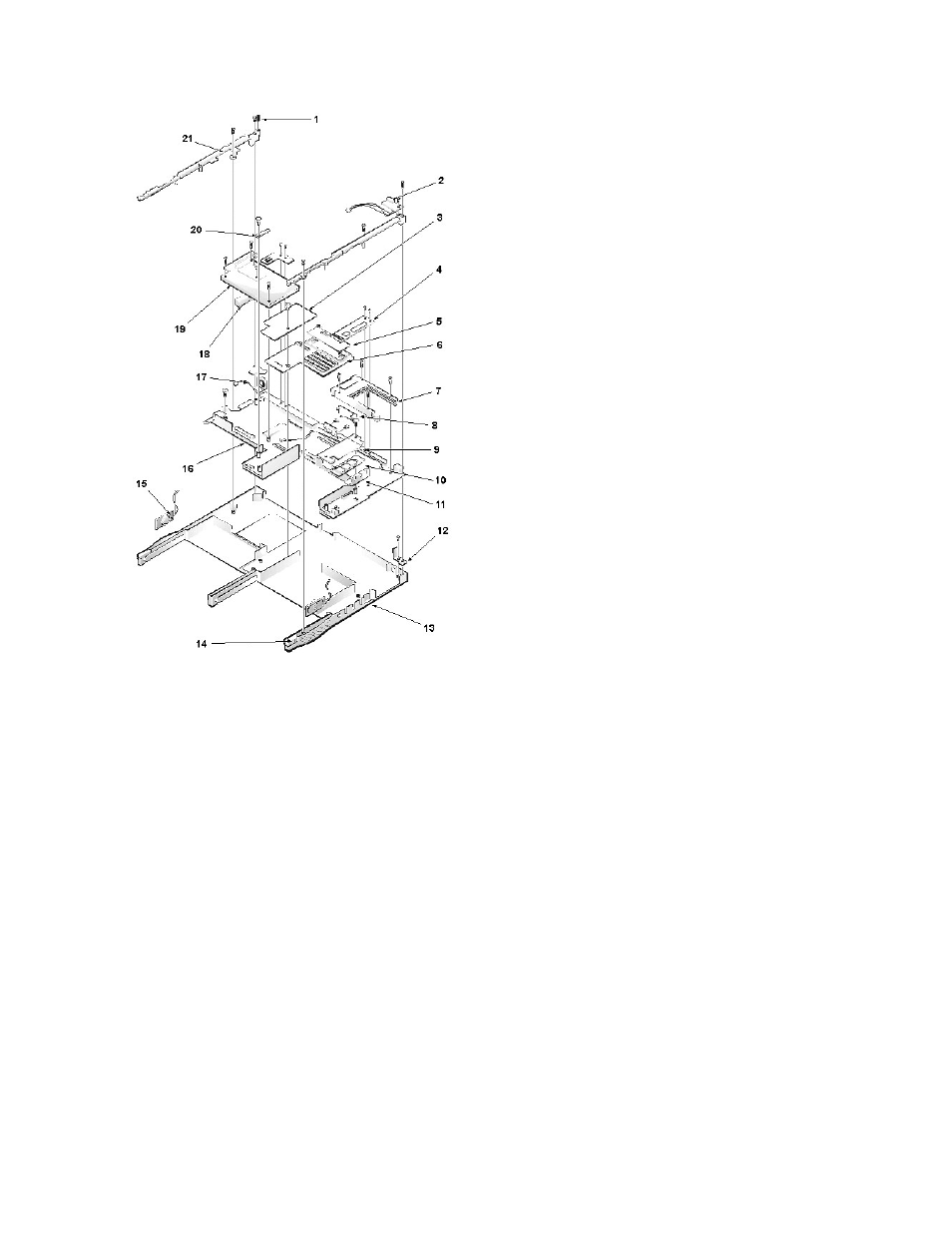

1 Ground springs (2)
2 Infrared board with 5-mm screw
3 Optional internal modem with 14-mm screw
4 EMI fin (2)
5 LVDS board
6 Video board with 4-mm jack screws (2) and 14-mm screw
7 PC Card cage with 14-mm screws (4)
8 Monitor connector cover
9 DC/DC board with 14-mm screw
10 Audio jack board
11 Audio jack shield
12 System-board retaining clip with 5-mm screw
13 Bottom plastic
14 Release latches
15 Speakers
16 System board (in EMI pan)
17 Fan and fan cover with 5-mm screw
18 Heat-sink fin
19 Processor module assembly with 14-mm screws (2)
20 System-board retaining clip with 14-mm screw
