Installing and Configuring Hardware 57

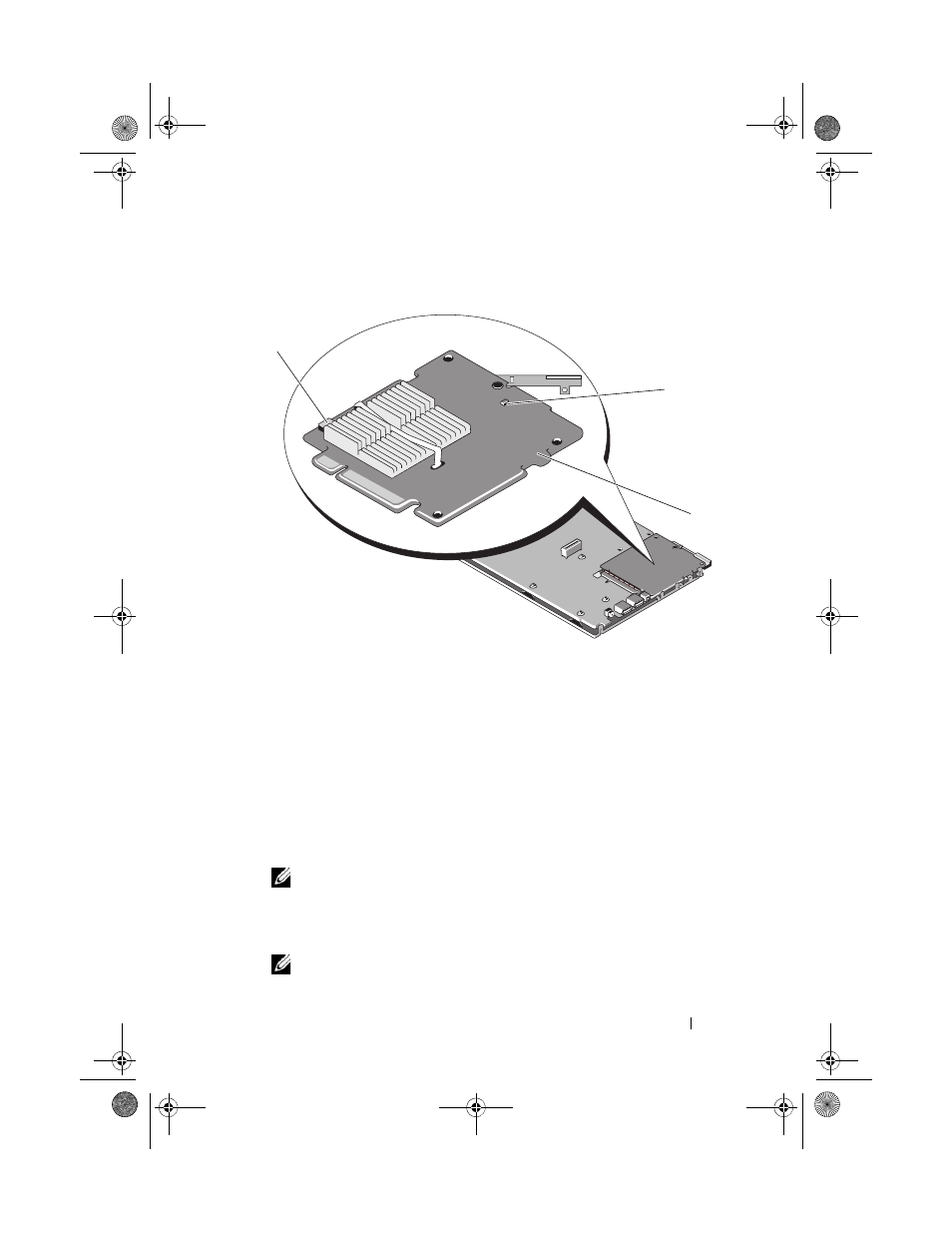

Figure 4-13. PERC H700 (Modular) Dirty Cache LED Location
3 Locate the battery cable connection near the edge of the controller,
and disconnect the battery. For the location of the battery cable connector,
see Figure 4-12 and Figure 4-13.
4 Remove the battery from the plastic mounting shroud in your system and
disconnect the battery cable. For more information on the location of the
BBU in your system and instructions on how to replace the BBU, see the
Hardware Owner’s Manual that shipped with the system.
NOTE: Connect the battery cable to the new BBU before mounting it to the
plastic shroud in your system.
5 Re-connect the battery to the controller by inserting the end of the battery
cable into the connector on the controller.
NOTE: Do not exert excessive pressure connecting the cable. It is a keyed
connector and it fits only one way.
1 battery cable connector 2 dirty cache LED
3 PERC H700 Modular Adapter
2
1
3
