Figure 13).
8. Turn the computer right-side up.
9. Reinstall the keyboard assembly.
10. Reinstall the display assembly.
11. Reinstall the keyboard bezel.
Touch Pad Assembly
1. Remove the keyboard bezel .
2. Remove the display assembly .
3. Remove the keyboard assembly .
4. Remove the palmrest assembly .
5. Remove the three M2 x 3.5-mm screws that secure the touch pad assembly to the palmrest assembly.
6. Slide the touch pad assembly out from under the two hold-down tabs.
7. Remove the touch pad assembly from the palmrest assembly.
8. Disconnect the flex cable from the ZIF connector on the back of the touch pad.
The flex cable remains attached to the touch pad holder assembly.
Bottom Case Assembly

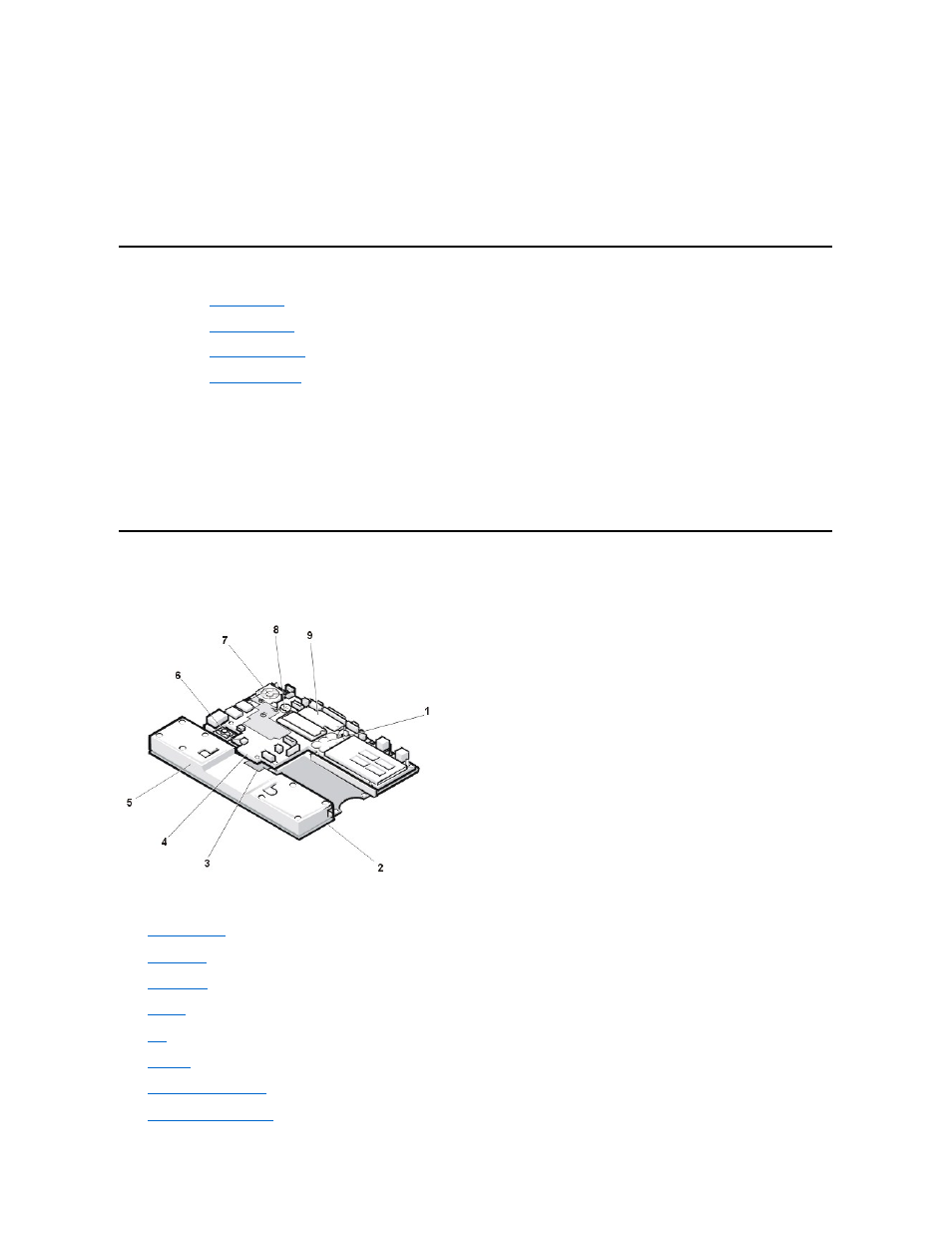

Figure 15. Bottom Assembly
The bottom assembly consists of the following field-replaceable components:
l Reserve battery
l RTC battery
l
Main battery
l Modem
l Fan
l
Speaker
l System board assembly
l Main battery release latch
1 Reserve battery
2 Bottom case cover
3 Main battery release latch
4 System board assembly
5 Main battery compartment
6 Speaker (shown with audio EMI shield removed)
7 Fan
8 RTC battery
9 Modem
