Bottom View

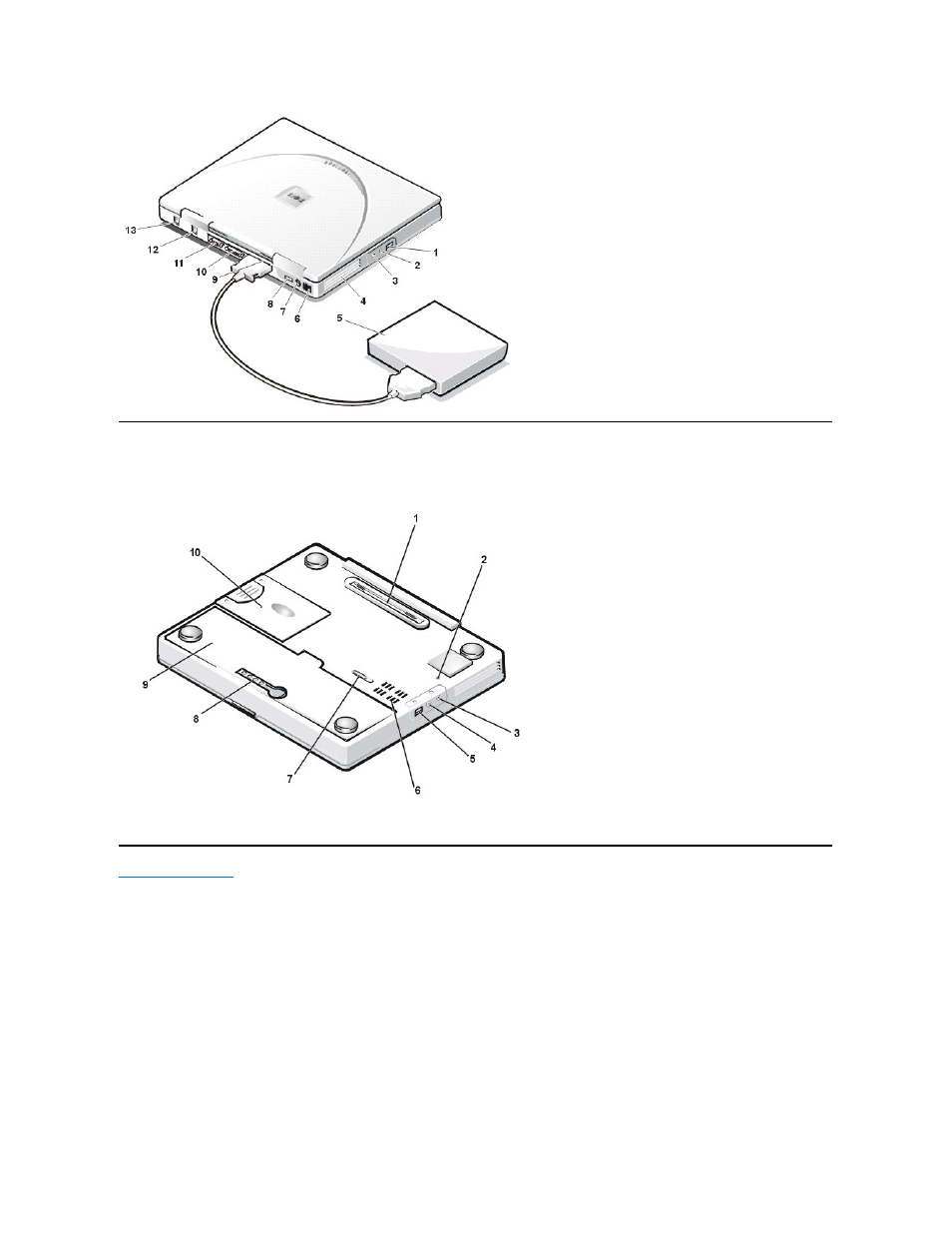

Figure 3. Bottom View of the Computer
Back to Contents Page
1 USB port connector
2 Speakers and headphones (line-out/speaker-out)
jack
3 Microphone (MIC IN) jack
4 Fan exhaust vent
5 External media bay
6 Air intake
7 PS/2 connector
8 AC adapter connector
9 External media bay connector
10 Parallel connector
11 Video connector
12 Modem connector
13 NIC connector
1 Docking connector (not supported)
2 Reset switch access hole
3 Microphone (MIC IN) jack
4 Speakers and headphones (line-out/speaker-out)
jack
5 USB port connector
6 Speaker
7 Battery latch
8 Battery charge gauge
9 Battery
10 Hard-disk drive
