Technical Overview: Dell™ Inspiron™ 2000 System Reference
Front View

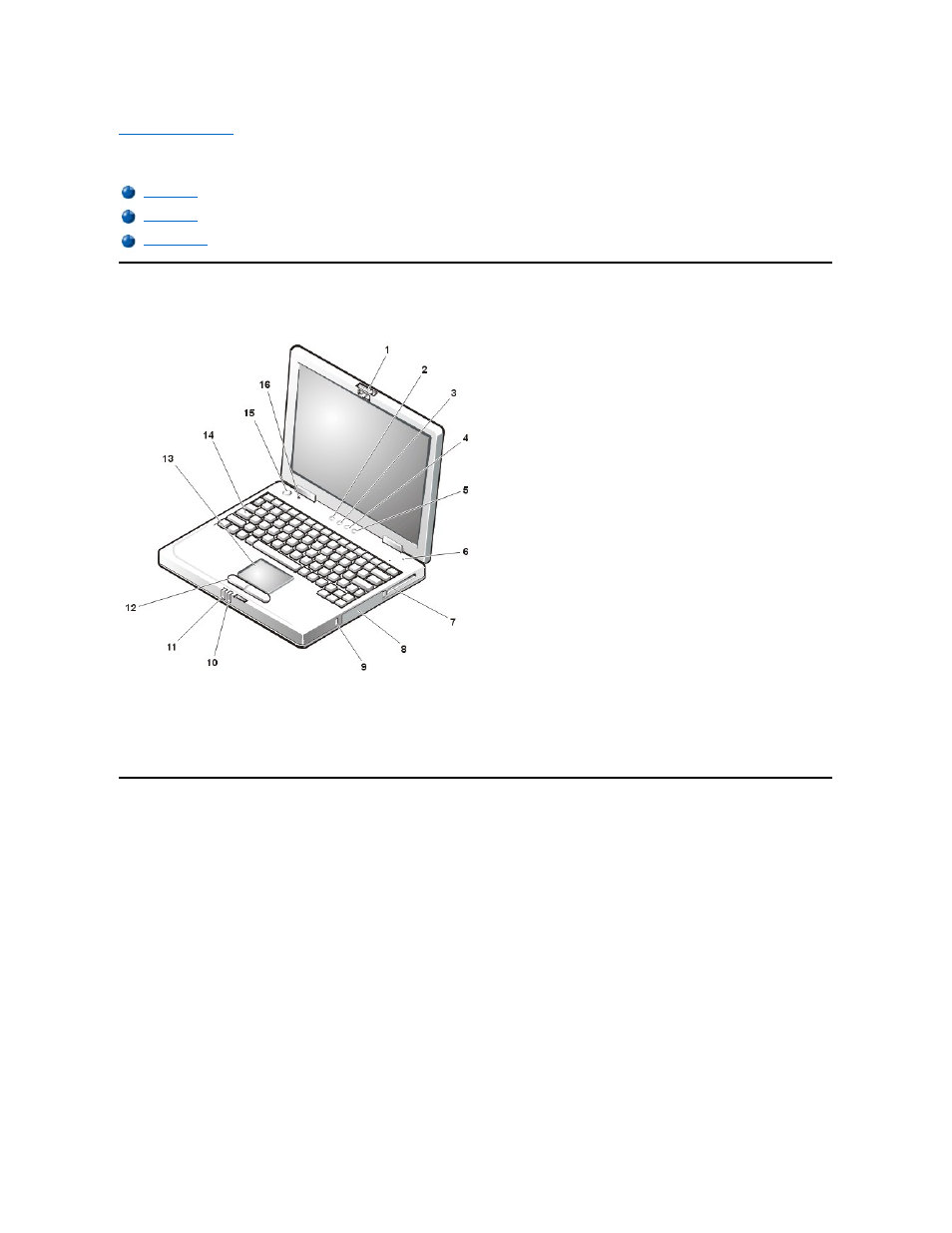

Figure 1. Front/Right View of the Computer
NOTICE: To avoid overheating the computer, do not place the external media bay close to the air inlet or fan intake/exhaust vents
(see Figure 2).
NOTICE: Do not confuse the modem and NIC connectors on your computer. Do not plug a telephone line into the NIC connector
(see Figure 2).
Back View
Figure 2. Back/Left View of the Computer
Front View
Back View
Bottom View
1 Display latch
2 Drive access indicator
3 Pad Lock indicator
4 Caps Lock indicator
5 Scroll Lock indicator
6 Integrated microphone
7 PC Card slot
8 Hard-disk drive
9 Security cable slot
10 Battery status indicator
11 Power indicator
12 Touch pad buttons
13 Touch pad
14 Keyboard
15 Power button
16 Display-close button
