Manual_CANopen_BIDE_EN.docx 50/52 Baumer IVO GmbH & Co. KG
21.11.12 Villingen-Schwenningen, Germany

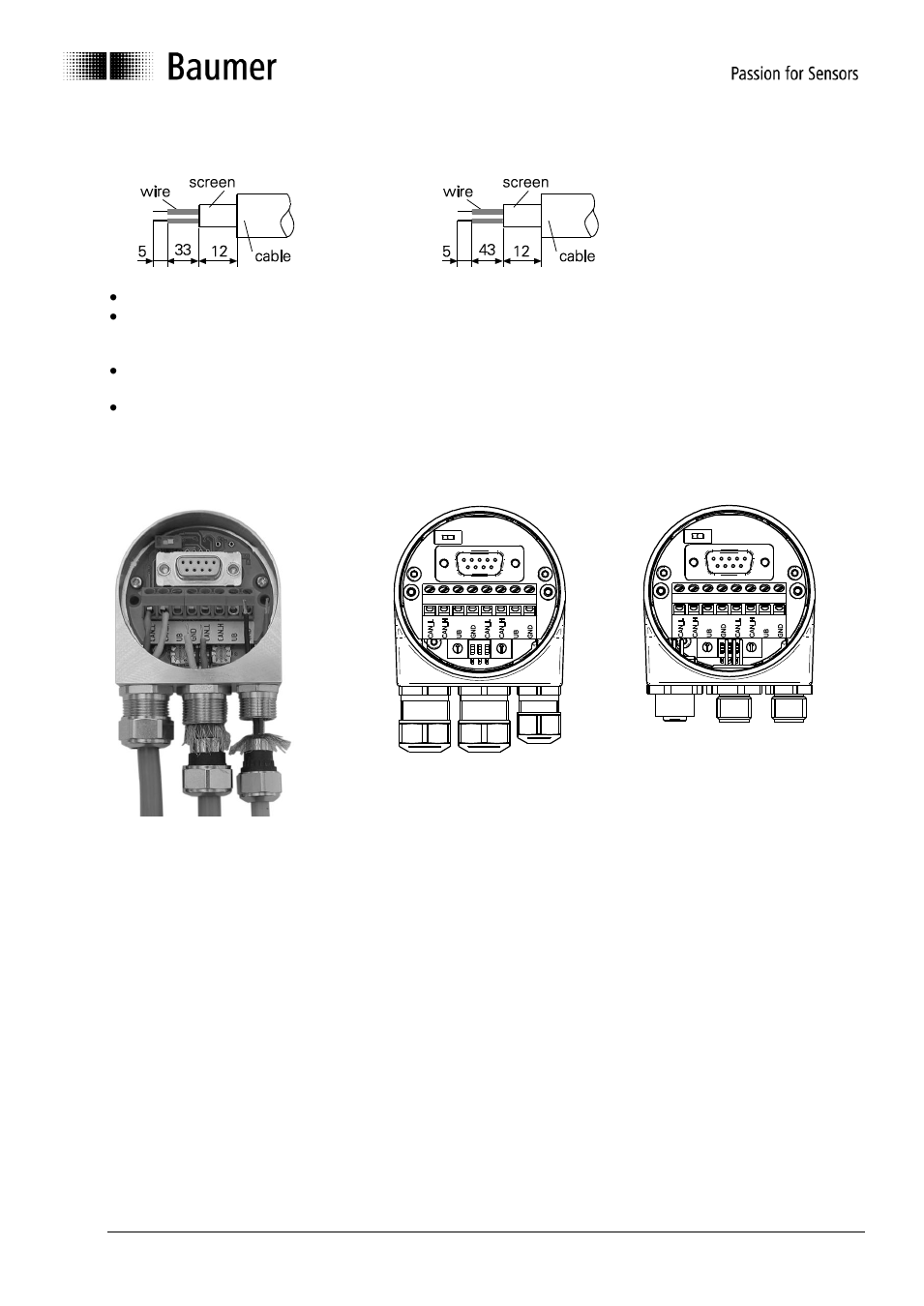

For G0AMH, G0MMH, GBAMH and GBMMH
Bus cable Supply voltage cable
Terminals with the same designation are internally interconnected.
For the power supply, use only cable gland 3. For the bus lines, cable gland 1 or 2 can be optionally
selected. For the bus lines, cable glands 1 or 2 can be freely selected. Observe the admissible cable
cross sections.
Insert the cores using the shortest route from the cable gland to the terminal strip. Observe the admissible
core cross-section. Use isolated core end sleeves.
Avoid crossing over data lines with the supply voltage line.
Bus cover
– Shaft/end shaft
1 2 3 Cable gland M12 connector
