Edge Lighting Micro Grazer Light Channel 2.3W, 12V - Manual (Page 2)

2
F
MOUNTING
CLIP
CEILING
6
LIGHT
CHANNEL
TEXTURED WALL

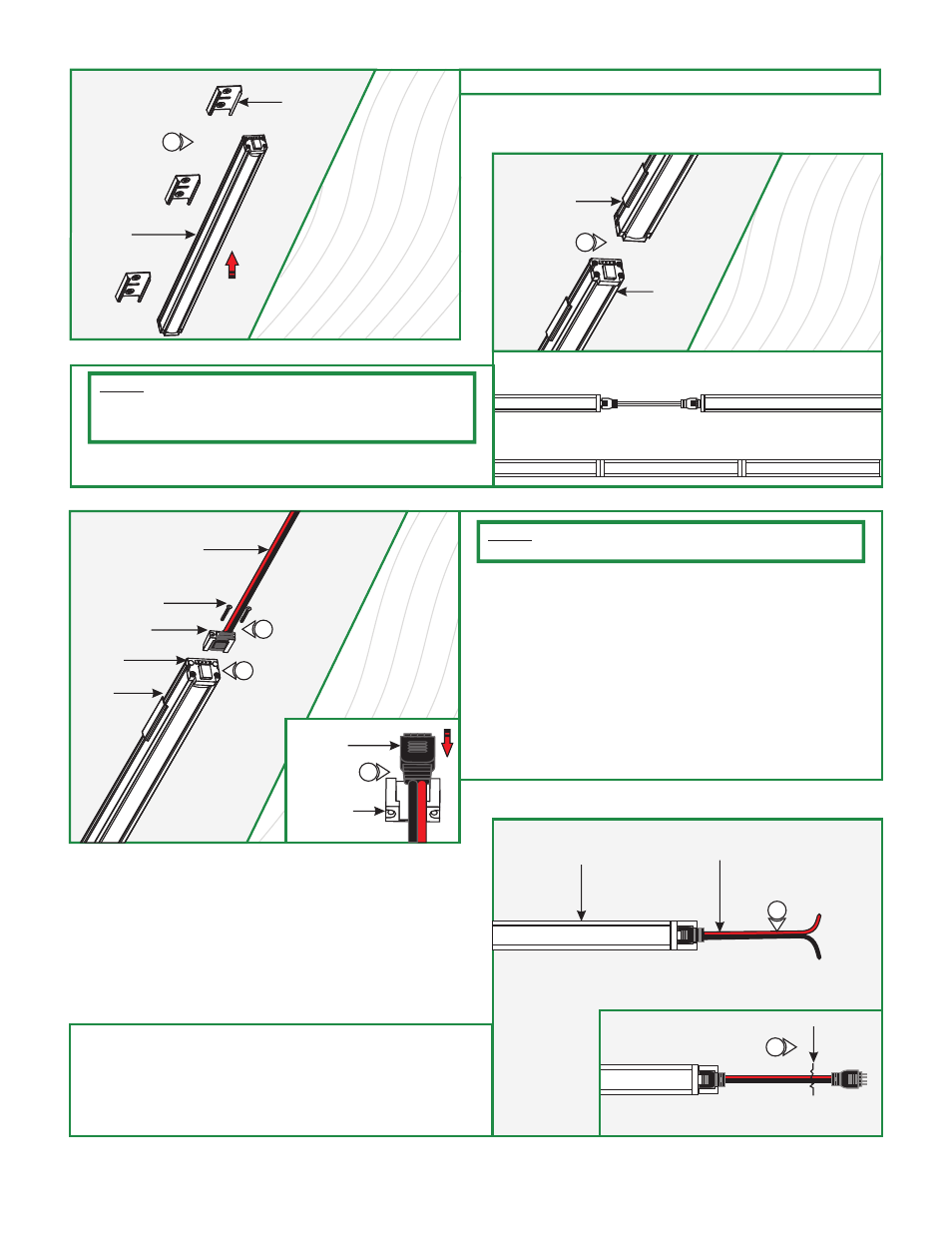

6: Snap each Light Channel into the spring clips.
7
LIGHT
CHANNEL
ADDITIONAL
LIGHT CHANNEL
DIRECT LIGHT CHANNEL CONNECTION
FROM ONE END TO ANOTHER END
LIGHT CHANNEL CONNECTION
USING FLEXIBLE CONNECTOR
G
7: Carefully, connect light channel male end to light channel
female end, or refer to the flexible connector instruction.
NOTE: Multiple light channel can be connected together directly
by connecting male end of one to the female end of the other
one, or by using the flexible connectors up to a maximum of
25 feet.
H
8: Remove the two bottom screws (closest to the mounted
surface) of the selected power end cap.
9: Place the male end of the power cord in the cord grip if
connecting to the female end of the light channel, or place
the female end of the power cord in the cord grip if
connecting to the male end of the light channel.
10: Push the cord completely into the light channel power end
cap pins and secure the cord grip to the light channel by
tightening the two screws (provided with cord grip) through
the cord grip into the light channel power end cap.
NOTE: The power feed cable can be mounted to either the
female or male end of the channel.
POWER
CORD
LIGHT
CHANNEL
POWER
END CAP
SCREW
POWER CORD
CORD GRIP 8
CORD GRIP
9
I
LIGHT CHANNEL POWER CORD
CUT
11
11
11: Cut the other end of the power cord (male or female) and
discard it. Strip the wire end for connecting it to the power
supply.
12: Follow the instructions provided with the power supply to
power up the light channel.
10
