Edge Lighting 45° Light Channel 24V High Output User Manual
Page 2

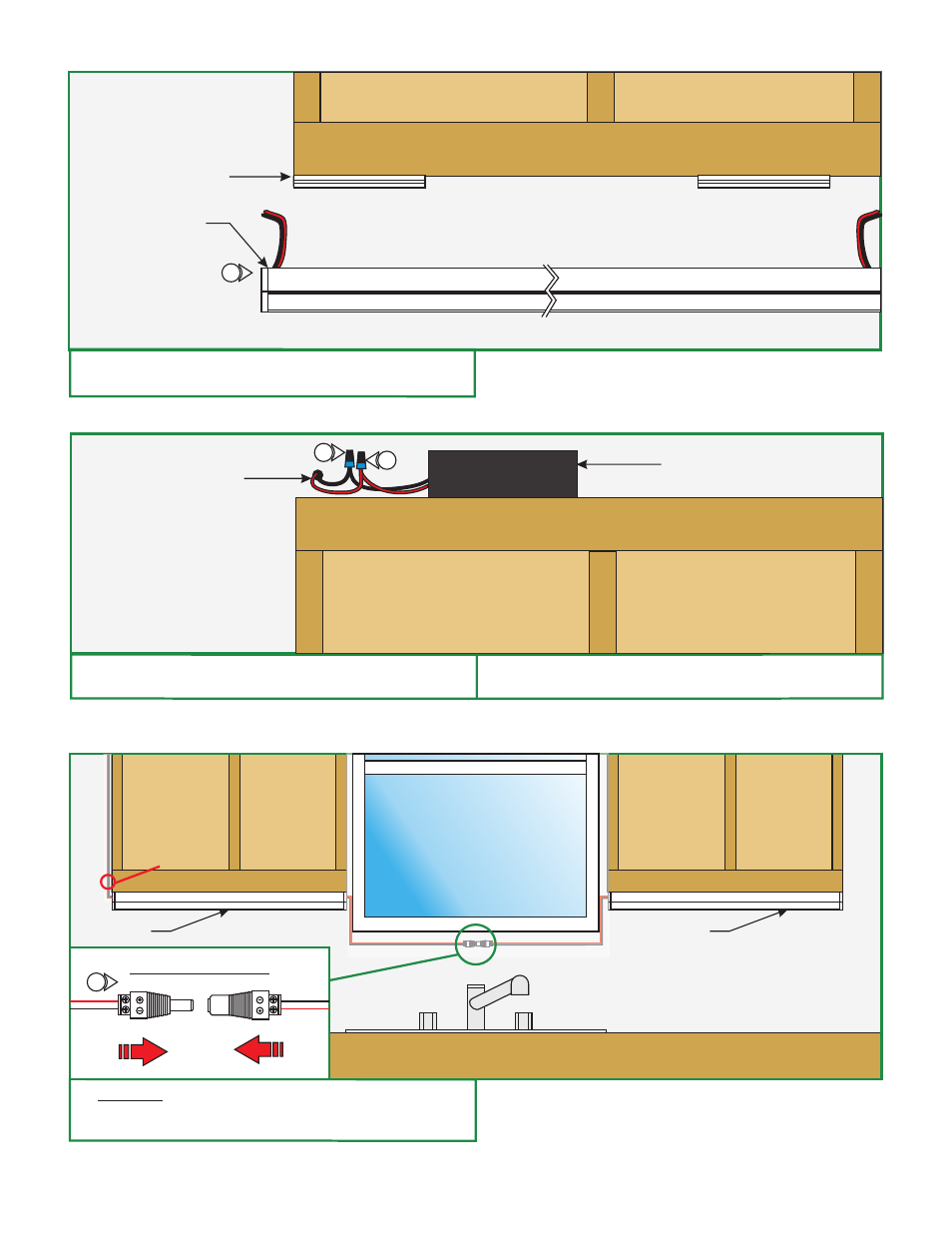

BOTTOM OF CABINET
2
6: Choose the cord on one end of the channel that is the
closest to the class 2 wiring.
D
MOUNTING CLIP
6
CHANNEL
CLASS 2 POWER
SUPPLY WIRES
E
TOP OF CABINET
POWER SUPPLY
(WITHIN 40FT)
8
7
7: Connect the red power supply (24VDC+) wire to red strip
wire with a wire nut inside the electrical box.
8: Connect the black power supply (24VDC+) wire to black
strip wire with a wire nut inside the cabinet.
CHANNEL 1
9: Optional: If power feeding one channel from the other,
then wire the male & female connectors provided. Connect
the red wires to "+" & black wires to "-" terminals.
F
CHANNEL 2
JOINING CONNECTOR
WIRING IN WALL
CONNECT CHANNEL TOGETHER
WIRES TO
POWER SUPPLY
9
