Edge Lighting PSB-60W-ELV-12VDC, 60 Watt 12 Volt DC Power Supply - Manual (Page 2)

NEUTRAL 120V AC
HOT 120V AC
RED +
BLACK -
YELLOW
(SWITCH LEG)
WHITE
120VAC
BLACK
BROWN
GREEN
12VDC
POWER SUPPLY
PSB-60W-ELV-12VDC
60W
C
8: Use the "Low Voltage Wire Size Chart" below to determine
the proper wire size connecting the power supply wires to
the LED soft strip wires.
NOTE: Use only 12 volt LED soft strip with this power supply.
9: Connect the LED soft strip red wire into the power supply
"+V" terminal.
10: Connect the LED soft strip black wire into the power supply
"-V" terminal.
D
11: Replace the power supply cover and tighten the four
Phillips screws on top & sides of the cover.
12: Connect the 120 volt power wires at the panel.
13: Turn on the power.
NOTE: In order to use small gauge wires from the power
supply to the Soft Strip, it is recommended to install the power
supply as near as possible to the LED fixture. See "Low Voltage
Wire Size Chart" on page below.

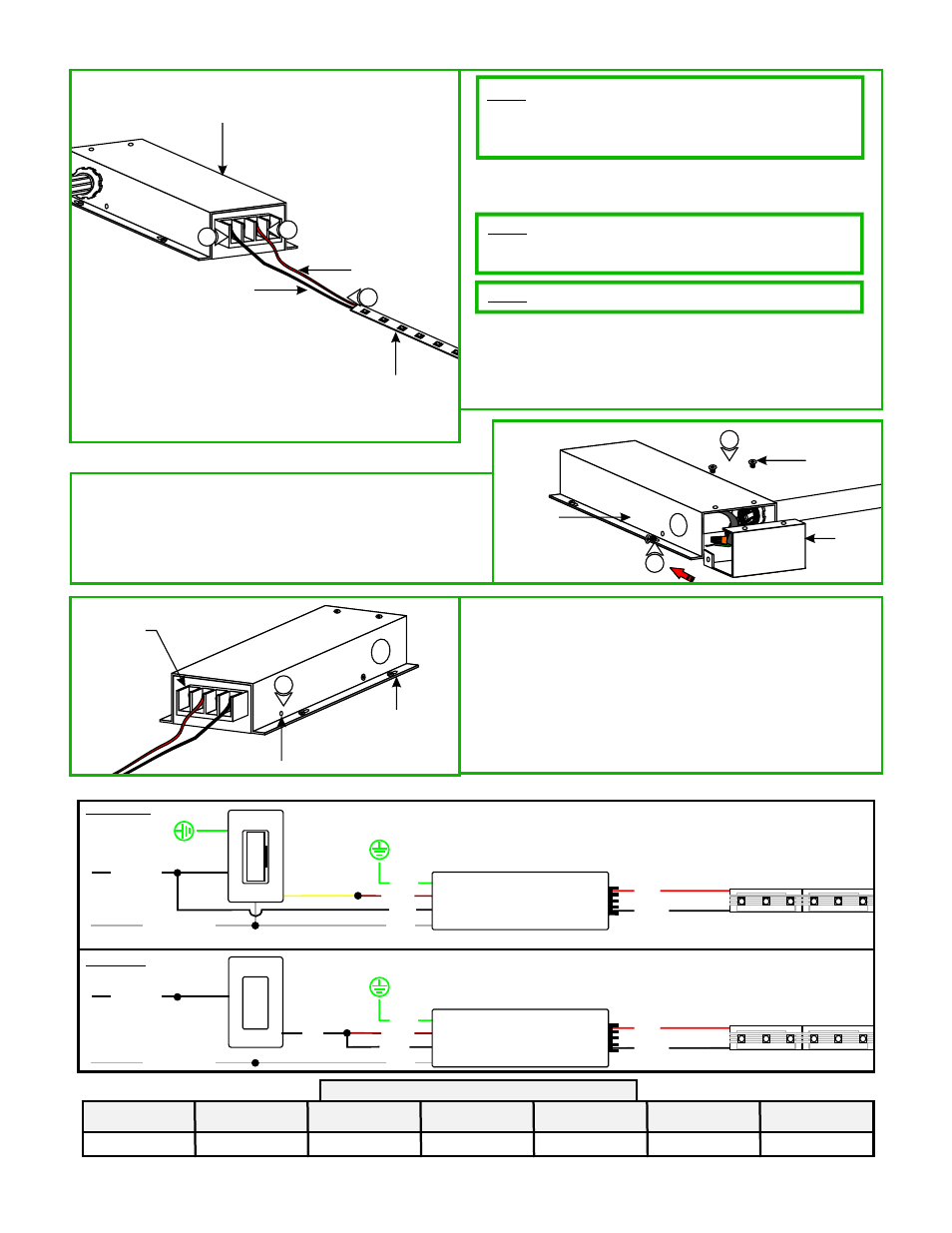

Wiring Diagram
NOTE: Maximum length of a single soft strip to be connected to
the power supply is 32' for SS1 and 25' for SS3 & SS2P.
Maximum total load is 60 watts.
SOFT STRIP
LED SOFT STRIP
12V DC+
12V DC-
POWER SUPPLY
9
10
8
PHILLIPS
SCREW
COVER
POWER
SUPPLY CASE
11
11
E 14: In case of dimming, if the soft strip flickers when the
dimmer is at the low light level, then the dimming
potentiometer needs to be adjusted. While facing the low
voltage terminals, remove the round sticker on right side of
the power supply to expose the potentiometer. Carefully
using a #0 Phillips head screw driver (do not push the
screwdriver too much inside the hole which will cause the
potentiometer to bend) rotate the potentiometer to
increase the light level until the light stops flickering.
Replace the sticker.
TERMINAL
POWER SUPPLY
DIMMING
POTENTIOMETER HOLE
14
DIMMING WIRING
2
ON/OFF WIRING
NEUTRAL 120V AC
HOT 120V AC
RED +
BLACK -
WHITE
120VAC
BLACK
BROWN
GREEN
12VDC
POWER SUPPLY
PSB-60W-ELV-12VDC
60W
SOFT STRIP
LOW VOLTAGE WIRE SIZE CHART
TRANSFORMER
WATTAGE WIRE SIZE
FOR UP TO 4 FT WIRE SIZE
FOR 5-6 FT WIRE SIZE
FOR 7-13 FT WIRE SIZE
FOR 14-20 FT
60 WATT #18 GA #16 GA #14 GA #12 GA
WIRE SIZE
FOR 21-34 FT WIRE SIZE
FOR 35-52 FT
#10 GA #8 GA
HOT
