Edge Lighting Vision 8 - Manual (Page 2)

2

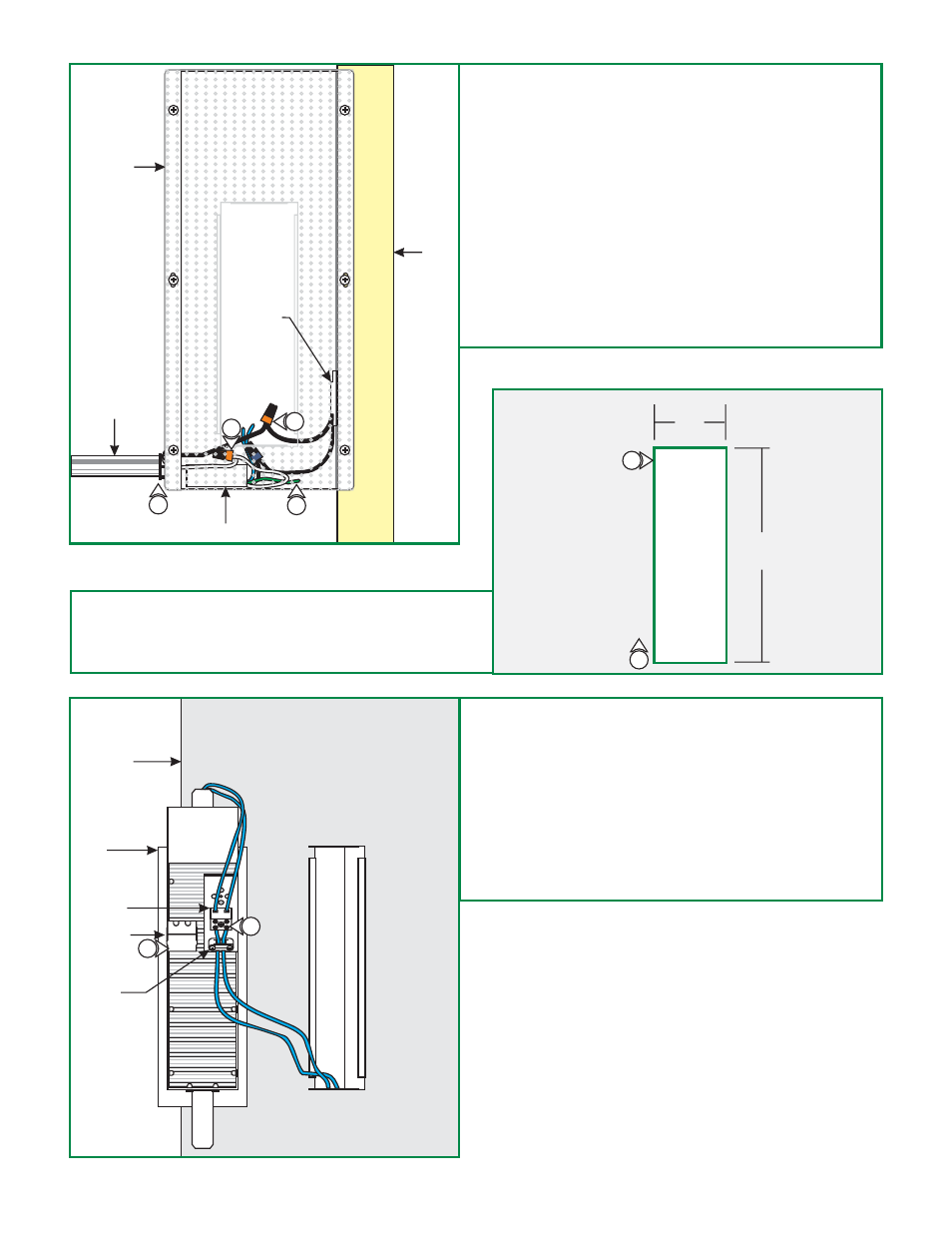

6: Remove a knock out to install the power line conduit.
7: Install the conduit and run the power line wires to the
housing.
8: Make sure that the housing is grounded in accordance with
local electrical codes.
9: Connect the white transformer wire to the neutral power
line wire with a wire nut.
10: Connect the black thermal protector wire to the hot power
line wire with a wire nut.
11: The black transformer wire is connected by default to the
other wire of the thermal protector.
B
STUD
HOUSING
THERMAL
PROTECTOR
TRANSFORMER
CONDUIT
9
10
8
Install Drywall, Trim & Lamp
C
2.5"
2
8.25"
1
1: Mark a 2.5" wide by 8.25" high rectangle on the drywall
where the housing opening is located.
2: Cut out the marked rectangle and install the drywall.
3: After installing drywall and finishing it, remove the cover on
the terminal block to expose the screws.
4: Loosen the two bottom Phillips screws on the terminal
block and the two on the strain relief (Do Not Remove).
5: Insert blue transformer wire through the strain relief
and one into each terminal block hole. Tighten the Phillips
screws on the terminal block and strain relief.
6: Replace the terminal block cover.
D
DRYWALL
TRIM
COVER
TERMINAL
BLOCK
STRAIN
RELIEF
7
3
5
