Installation Instructions for
Step Halogen Kit
904-STEP-KIT-H-02
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com

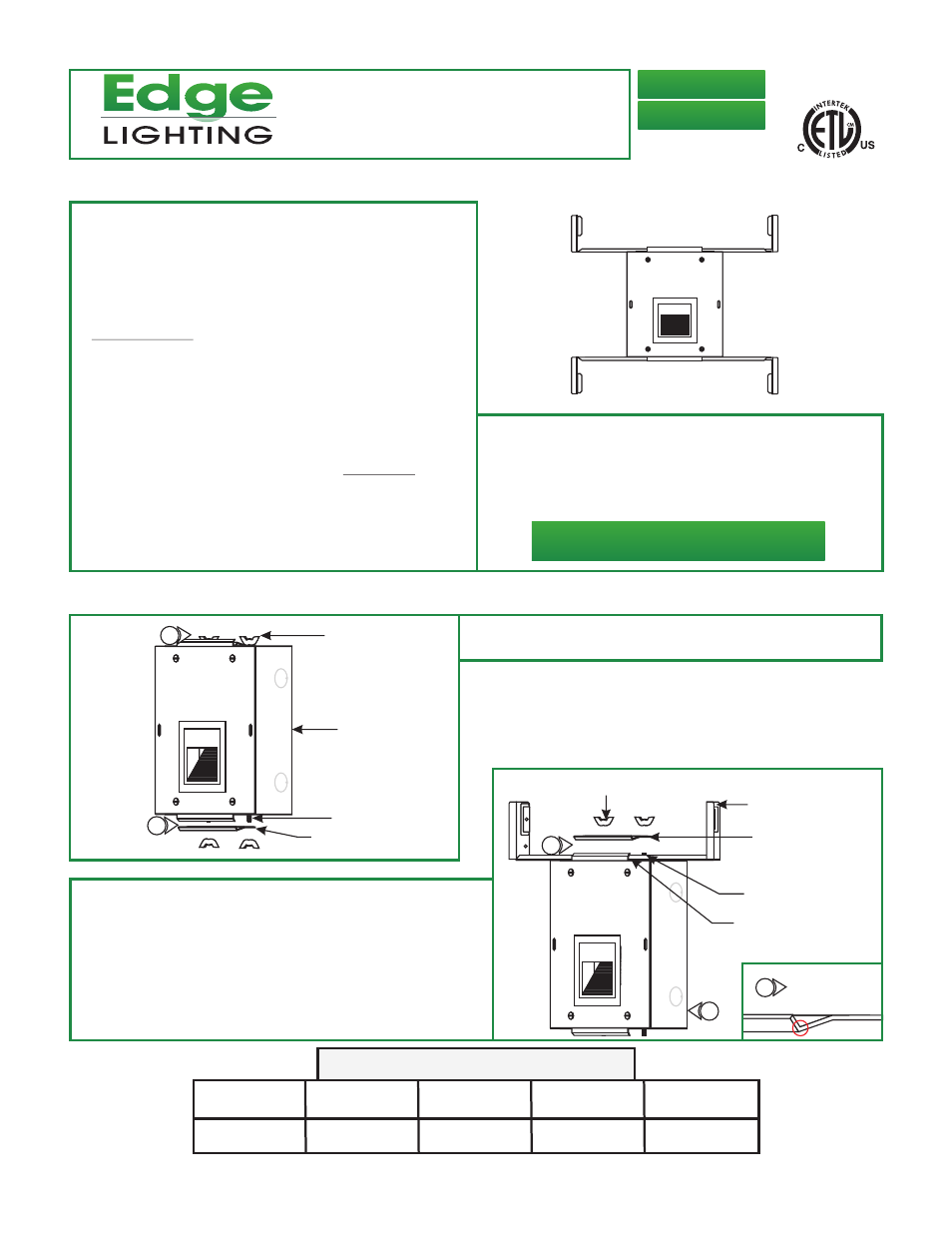

Install the Step Housing
1: Loosen the two top and bottom wing nuts on the housing to
remove the two mounting brackets.
1
© 2013 Edge Lighting. All Rights Reserved.
STEP-KIT-H1M_
STEP-KIT-H1S_
MOUNTING BRACKET
1
1
THREADED STUD
B
HOUSING LIP
WING NUT
MOUNTING
BRACKET
2
THREADED STUD
2: Mount one adjustable mounting bar to the top of the housing
by sliding it completely under the housing lip.
3: Replace the mounting bracket onto the threaded studs so
that the flange faces the adjustable mounting bar. Tighten
the wing nuts to secure the adjustable mounting bar in
place.
4: Repeat steps 2 and 3 for the bottom of the housing.
MOUNTING
BRACKET
FLANGE
3
ADJUSTABLE
MOUNTING BAR
4
SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor dry locations.
- This product is wall mounted only.
- This product can be dimmed with a electronic low voltage
dimmer.
IMPORTANT INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:
- Use this fixture indoors only.
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Turn power off and allow to cool before replacing lamp.
LOW VOLTAGE WIRE SIZE CHART
TRANSFORMER
WATTAGE
WIRE SIZE
FOR 10 FT
WIRE SIZE
FOR 11-15 FT
WIRE SIZE
FOR 16-25 FT
WIRE SIZE
FOR 26-40 FT
75 WATT
#14 GA
#12 GA
#10 GA
#8 GA
