Edge Lighting Twiggy Hinged, Direct 1" Lens User Manual
Page 2

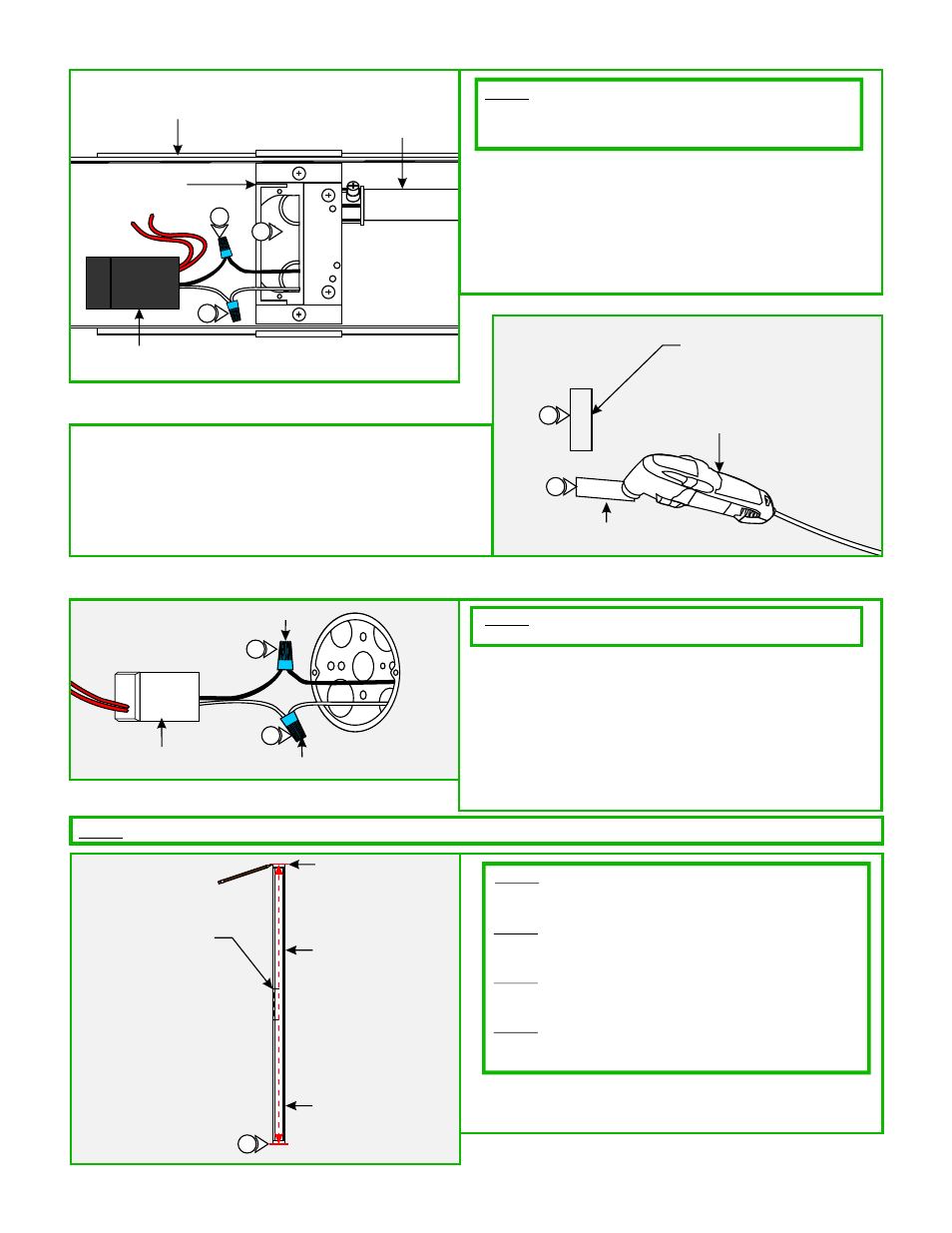

7: Connect the white transformer wire to the neutral power
wire with a wire nut.
8: Connect the black transformer wire to the hot power wire
with a wire nut.
9: Place the transformer and transformer wires inside the
junction box.
D
2
3
1
2
3
1
NOTE:
If necessary junction box opening can be adjusted, in
three positions from position 1 at 0.85", 2 at 0.95" or 3 at 1.05".
Simply loosen screws and tighten to the corresponding position
labeled on junction box.
E
10
DRYWALL
RECTANGLE
OPENING
10:
opening will be located depending on selected position.
11: Cut out the marked rectangle opening, using a "Dremel
Multi-Max" with the "wood & drywall" cutting bit.
12: Follow steps in Section Three to complete installation.
Mark a rectangle shape on drywall where the junction box
DREMEL
MULTI-MAX
WOOD & DRYWALL
CUTTING BIT
11
CONDUIT
JUNCTION
BOX
8
7
9
TRANSFORMER
ADJUSTABLE
MOUNTING BARS
Section Two: Steps for TWH12-D1-4SQ
1: Connect the white power supply wire to the neutral power
wire with a wire nut.
2: Connect the black power supply wire to the hot power wire
with a wire nut.
3: Place the power supply and wires inside the electrical box.
4: Follow steps in Section Three to complete installation.
D
TRANSFORMER
WIRE NUT
1
2
NOTE:
Low-voltage power wires should be present in the
junction box before completing the steps in this section.
Section Three: Install Fixture
NOTE:
It is recommended more than one person to assist in
this installation.
NOTE:
Fixture can be mounted in a horizontal or vertical
position.
NOTE:
Channel rotates in only one direction, so orientation
must be determined before installing.
NOTE:
The junction box does not need to be in middle of the
channel (could be mounted from any end) but needs to be
aligned in the center of the channel.
1: Center the channel to the junction box opening. Make
markings to each end of the channel and also make a center
line from end to end.
F
1RE JUNCTION
BOX OPENING
MARK LOCATION
CENTER LINE
1
NOTE: Twiggy Hinge w/rectangular junction box shown for illustration purposes.
WIRE NUT
WALL
CHANNEL
