Edge Lighting TV LED - Manual (Page 2)

2
E
10

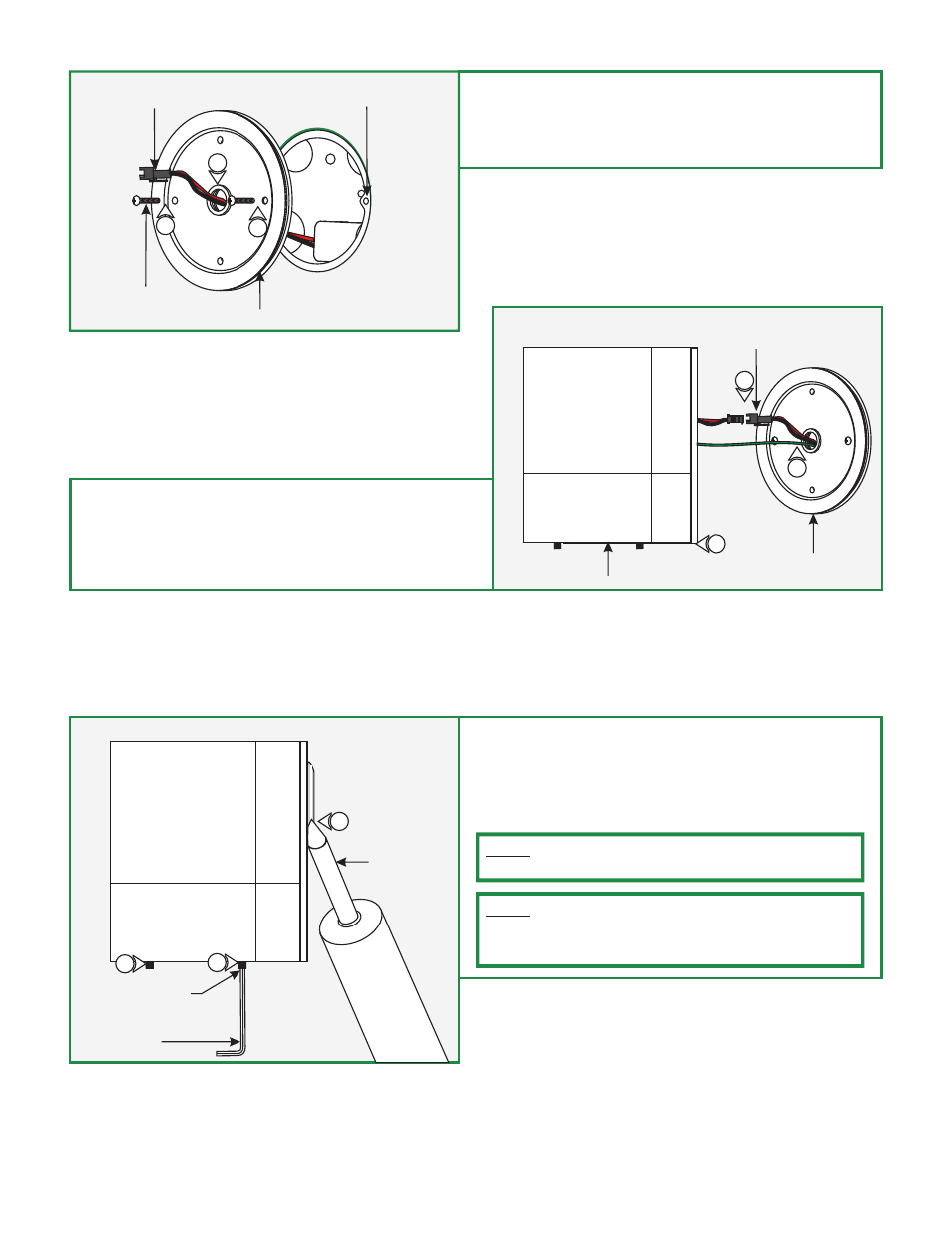

10: Place the fixture completely onto the backplate. Tighten the
two M5 set screws on the bottom of the fixture
with the 2.5mm Allen wrench.
11: For Outdoor Installation: Caulk around the fixture
canopy with a water proof sealant.
NOTE: The fixture contains integrated LED lamps rated for
40,000 hours. It consumes a total of 4 watts.
2.5MM ALLEN
WRENCH
M5 SET SCREW
C
6: Feed the LED driver connector into the back of the gasket
and backplate.
7: Mount the backplate to the electrical box holes with the two
#8-32 screws provided.
BACKPLATE
ELECTRICAL
BOX HOLE
WATER PROOF
SEALANT
11
NOTE: When cleaning the fixture glass use a standard mild soap
solution such as a Palmolive dishwashing liquid using a cotton or
lent-free cloth. DO NOT USE SOAPS THAT CONTAIN LOTIONS
OR OXY CLEAN.
#8-32 SCREW
LED DRIVER
CONNECTOR
6
7 7
8: While holding the fixture, snap the fixture connector to the
LED driver connector making sure the connectors are locked
in place.
9: Make sure the backplate is grounded in accordance with local
electrical codes.
D
BACKPLATE
LED DRIVER
CONNECTOR
8
9
10
FIXTURE
9
