Edge Lighting Stream - Manual (Page 2)

2

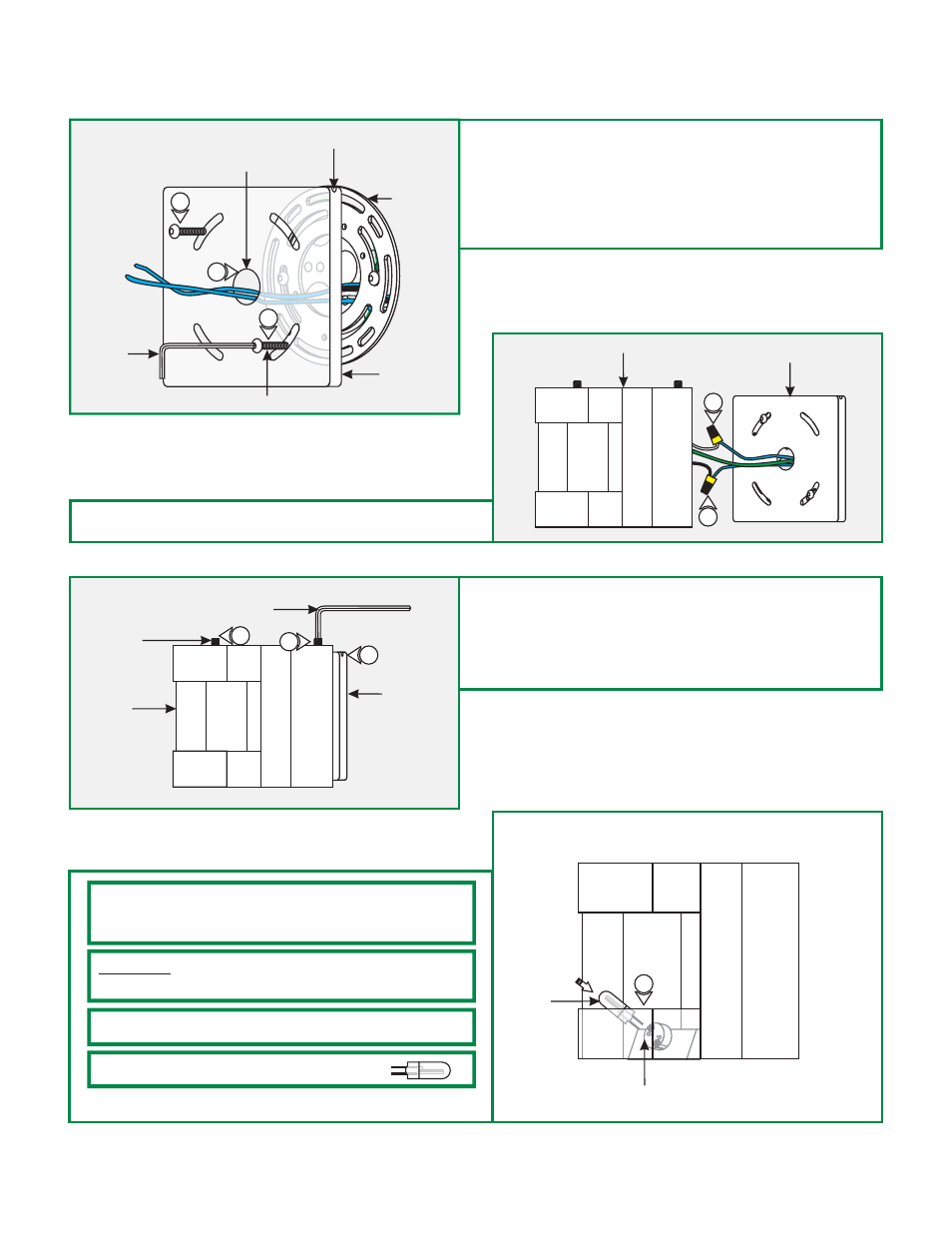

7: Feed the transformer wires through the mounting plate
center hole.
8: Align the mounting plate so that the grooved edge faces up
ward. Secure the mounting plate to the crossbar with the
provided #8-32 screws and tighten using the 3/32 Allen
wrench.
MOUNTING
PLATE
CROSSBAR
D
8
CENTER HOLE
8
GROOVED EDGE
9: Connect each transformer low voltage wire (blue wire) to one
fixture wire with a wire nut.
10: Place all wires and wire nut connections inside the
backplate.
11: Replace the fixture canopy onto the mounting plate and
secure it by tightening the two M6 set screws with the 3mm
Allen wrench.
E
9
9
FIXTURE CANOPY
MOUNTING PLATE
1: Push the lamp pins completely into the socket holes.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 20 Watt Bi-Pin Xenon (Xelogen) Lamp.
NOTE: Use only fingers and a soft cloth to install the lamps.
WARNING: RISK OF FIRE
Never replace a Xenon (Xelogen) lamp with a regular Halogen
lamp. A regular Halogen lamp requires a protective glass shield .
G
LAMP
SOCKET
1
F
M6 SET
SCREW
3MM ALLEN
WRENCH
10
11
11
FIXTURE
CANOPY
MOUNTING
PLATE
Install the Lamp
#8-32 SCREW
3/32 ALLEN
WRENCH
7
