Edge Lighting Square Crystal User Manual
Square crystal, Install the fixture, Installation instructions for

SQCRY-W-H1-_
904-SQCRY-W-H1-03
SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor dry locations.
- This product is wall mounted only and it should be
installed as an up light (lamp facing up).
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This product can be dimmed with a low voltage electronic
dimmer.
Installation Instructions for
Square Crystal
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com

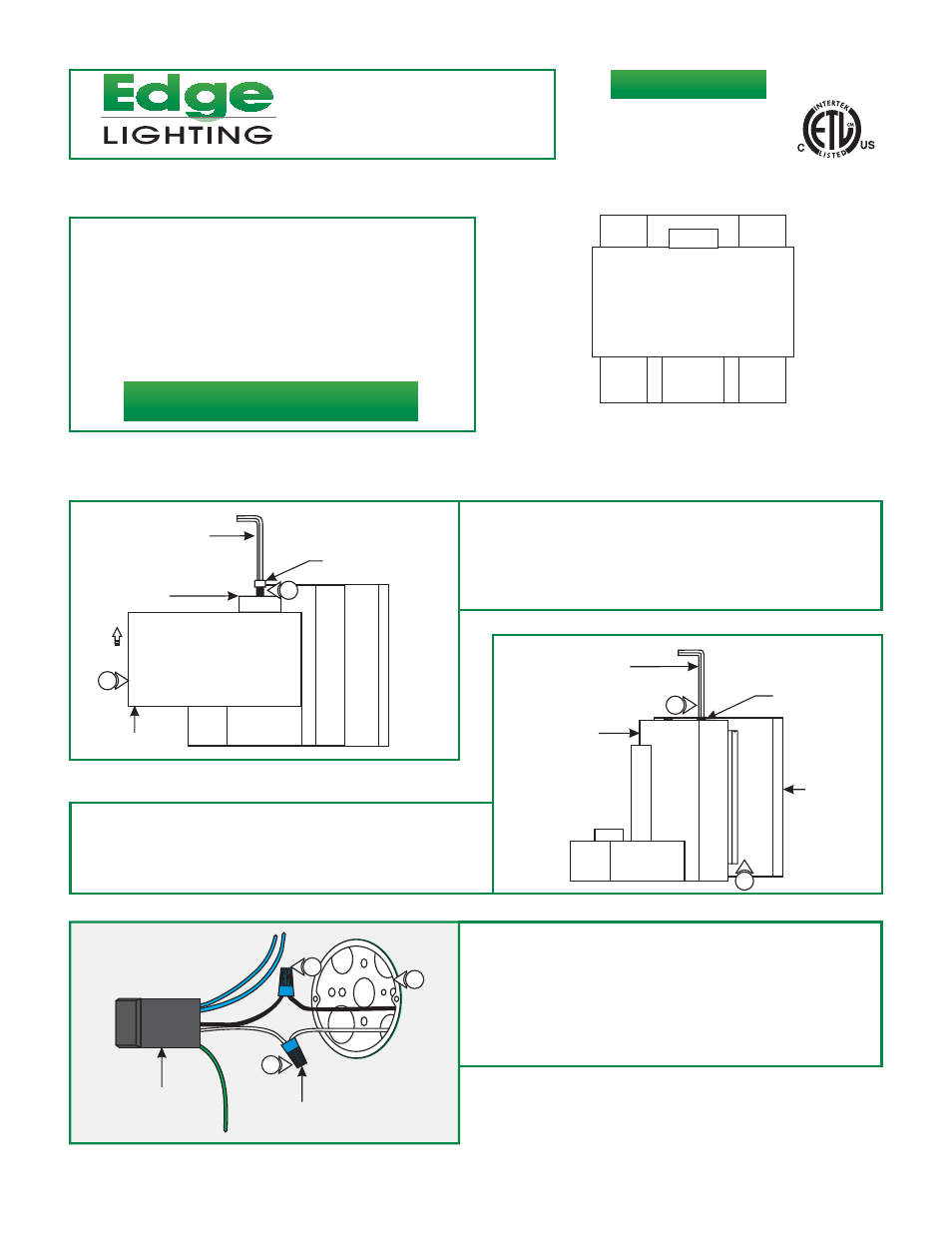

Install the Fixture
1
1: While holding the fixture
bushing with the 4mm Allen wrench.
2: Remove the bushing from the threaded post (Do Not
Remove the Threaded post) and pull the glass diffuser
out.
remove the M8 screw on the
A
GLASS DIFFUSER
M8 SCREW
4MM ALLEN
WRENCH
1
B
M6 SET
SCREW
3MM ALLEN
WRENCH
3
MOUNTING
PLATE
FIXTURE CANOPY
3:
canopy (Do Not Remove) with the provided 3mm Allen
wrench.
4: Pull the mounting plate out of the fixture canopy.
Loosen the two M6 set screws on the top of the fixture
2
4
C
TRANSFORMER
WIRE NUT
5
6
7
5: Connect the white transformer wire to the neutral power
wire with a wire nut.
6: Connect the black transformer wire to the hot power wire
with a wire nut.
7: Place the transformer and wire nut connections inside the
electrical box.
BUSHING
