Edge Lighting Regal - Manual (Page 2)

2
C
CROSSBAR
ASSEMBLY
HEX NUT
FIXTURE BODY

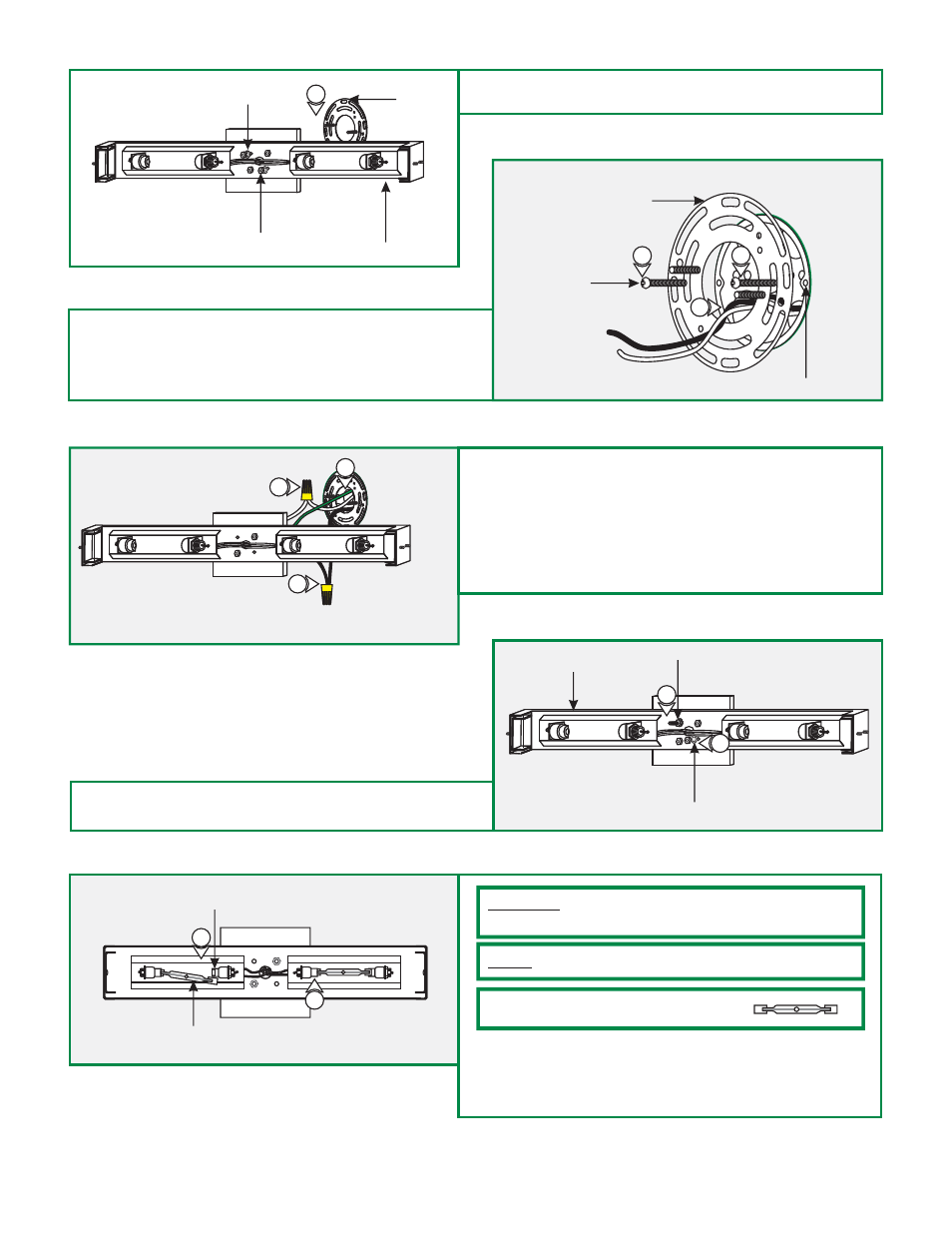

4: Loosen and remove the two hex nuts and lock washers from
the center of fixture body to remove the crossbar assembly.
LOCK WASHER
#8-32 SCREW
CROSSBAR ASSEMBLY
ELECTRICAL BOX HOLE
D
6
4
5
E 7: Make sure that the fixture is grounded in accordance with
local electrical codes.
8: Connect the white fixture wire to the neutral power wire with
a wire nut.
9: Connect the black fixture wire to the hot power wire with a
wire nut.
7
8
9
F
10: Secure the fixture body to the crossbar assembly by
tightening the hex nuts and lock washers.
HEX NUT
LOCK WASHER
5:
hole.
6: Mount the crossbar o the electrical box holes with
the provided two #8-32 screws.
Feed the power wires through the crossbar assembly center
assembly t
FIXTURE BODY
6
10
10
G
11: Place one end of the lamp onto one socket pin, while
pushing the lamp against that socket pin slide the other
end onto the other socket pin. Repeat this step for the
other socket.
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
NOTE: Use only fingers and a soft cloth to install the lamp.
Use MAX 75 Watt Type T3-78mm, Double
End Halogen Lamp For Each Socket.
SOCKET
LAMP
11
11
