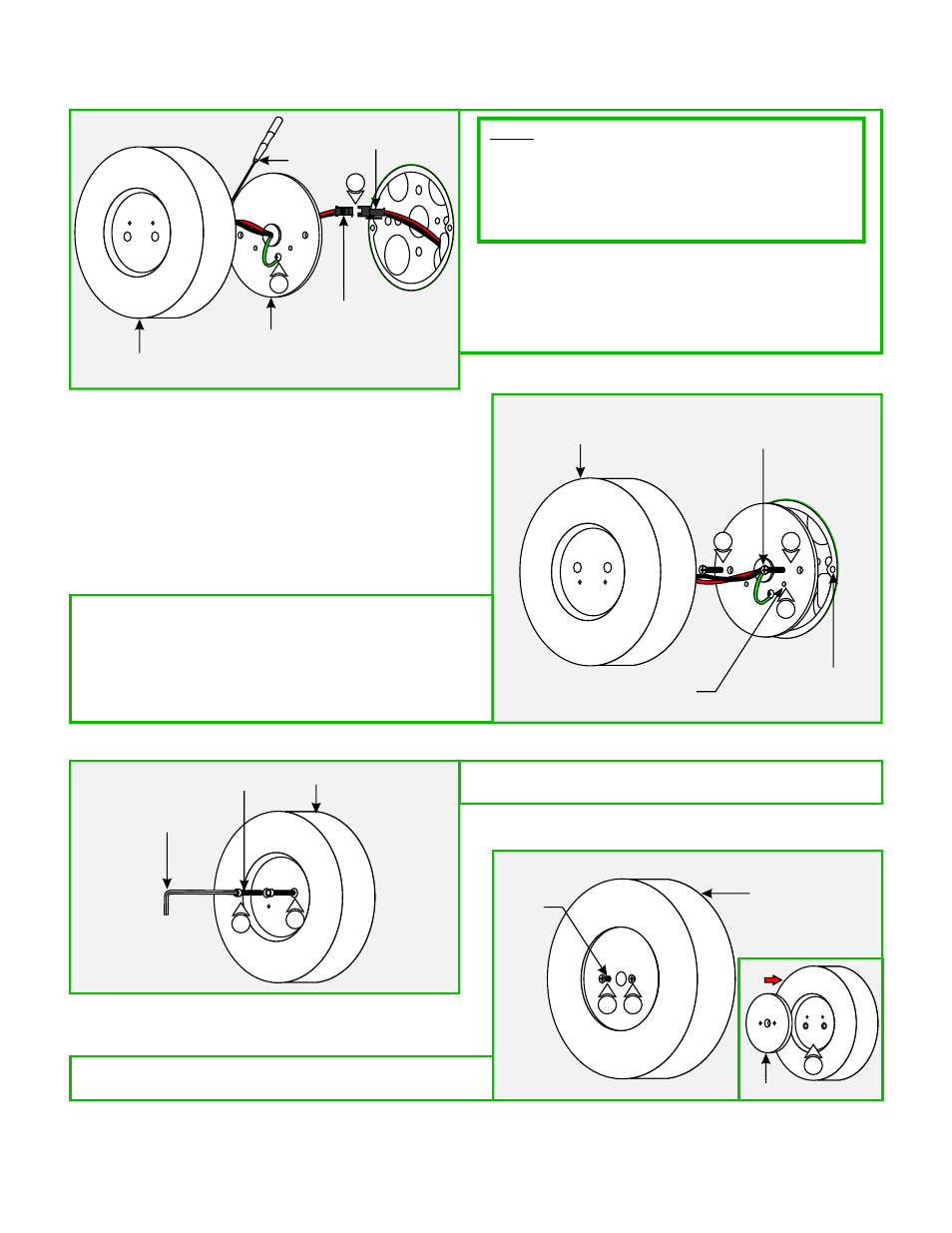

Install the Fixture
FIXTURE
D
BACKPLATE
1: While holding the fixture, snap the fixture connector to the
LED driver connector making sure the connectors are locked
in place.
2: Make sure the backplate is grounded in accordance with local
electrical codes.
FIXTURE
CONNECTOR
LED DRIVER
CONNECTOR
1
E
FIXTURE
BACKPLATE
CENTER HOLE
ELECTRICAL
BOX HOLE
3: Align the two inner threaded screw holes on the backplate
toward bottom for the LEDs to light towards top of the wall
or toward the top for LEDs to light towards bottom of the
wall.
4: Mount the backplate to the electrical box holes with the two
#8-32 screws provided.
NOTE: Use the universal crossbar (provided) when
mounting the fixture to an octagon box. There will be a
1/16" gap between the fixture and the wall when the
universal crossbar is used. Caulking around the fixture will
be needed when the universal crossbar is used in outdoor
applications.
2
4 4
F 5: Place the fixture completely onto the backplate. Replace and
tighten the two M6 screws with 3mm Allen wrench.
3MM ALLEN
WRENCH
M6 SCREW
FIXTURE
9
9
INNER THREADED
SCREW HOLE
G
PHILLIPS
SCREW
FIXTURE
6
6
COVER
6
6: Replace the cover and secure it to the fixture with the two
Phillips screws.
3
SMALL
SCREW
DRIVER
