NOTE: The Cody 6" contains 6 watt integrated LED lamps. These
lamps are rated for 50,000 hours.

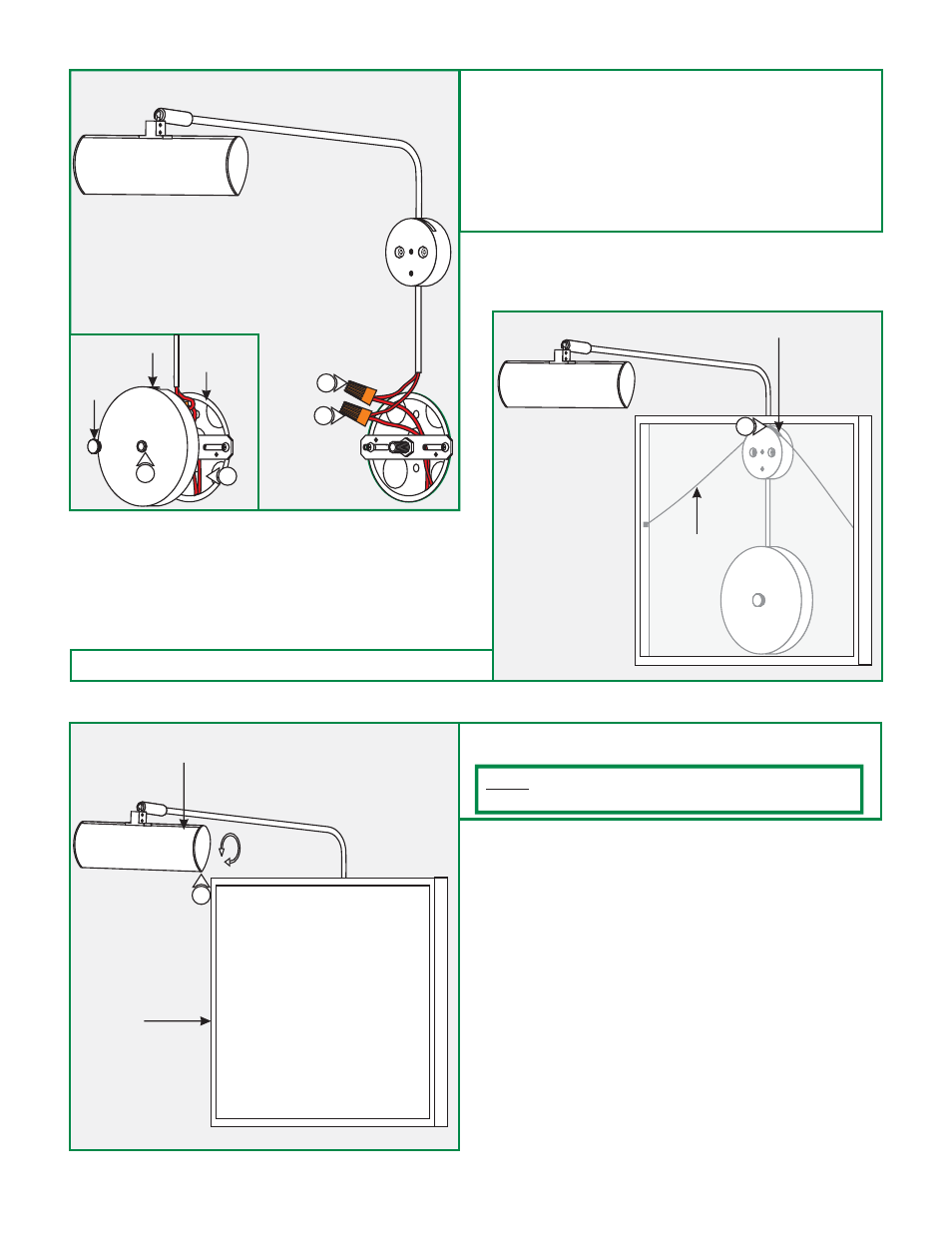

14: Hang the frame cable into the mounting bracket slot.
MOUNTING BRACKET SLOT
I
15: Rotate the fixture head to properly wash the picture with
light.
14
FRAME CABLE
FIXTURE HEAD
15
G
11
11
THUMB
NUT
COVER
13
11: Connect each low voltage LED power supply wire (red
wire) to one fixture wire with a wire nut.
12: Place the excess wires and wire nuts inside the electrical
box.
13: Line up the canopy cut out edge with the fixture wires.
Place the canopy onto the electrical box and tighten the
thumb nut to the crossbar assembly nipple.
