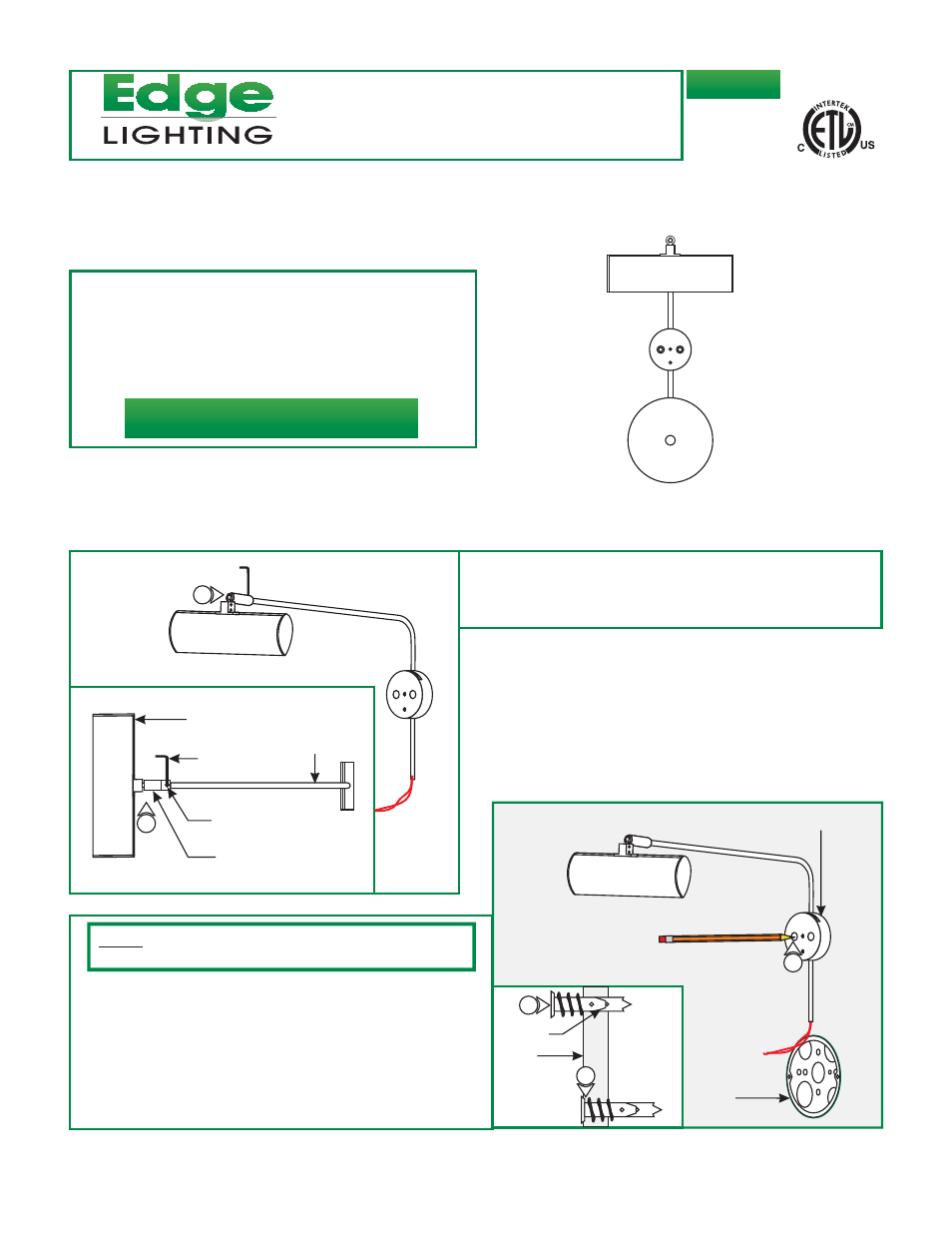

Installation Instructions for
Cody 6" Canopy Mount Picture Light
904-CPL-6-01
Install the Fixture
1
CPL-6-_
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
© 2009 Edge Lighting. All Rights Reserved.
1: Rotate the Cody's head perpendicular to the arm making
sure the arm is completely inserted into the head. Tighten
the M3 set screw on the swivel connector with the provided
1.5mm Allen wrench to secure the head in place.
SAVE THESE INSTRUCTIONS!
- This product is ETL listed for indoor location
- This product is wall mounted only.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This instruction shows a typical installation.
IMPORTANT INFORMATION
A
1
B
3
4
ANCHOR
WALL
2
ELECTRICAL
BOX
MOUNTING BRACKET
2: Hold the mounting bracket against the wall above the
electrical box. Level the mounting bracket and mark the
bracket holes on the wall.
3: Tap the anchors onto the marked points into the wall up to
the threaded portion with a hammer.
4: Screw the threaded portion of the anchors in with the a
Phillips screwdriver.
NOTE: The Cody 6" canopy mount must be installed right
above the electrical box.
HEAD
ARM
1.5MM ALLEN
WRENCH
M3 SET SCREW
SWIVEL
CONNECTOR
1
