Edge Lighting Alpha LED User Manual
Install the fixture, Installation instructions for, Important information

Installation Instructions for
Alpha 4, 7, 16, and 24 LED
904-ALPHA-L1-01
SAVE THESE INSTRUCTIONS!
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
© 2014 Edge Lighting. All Rights Reserved.
1

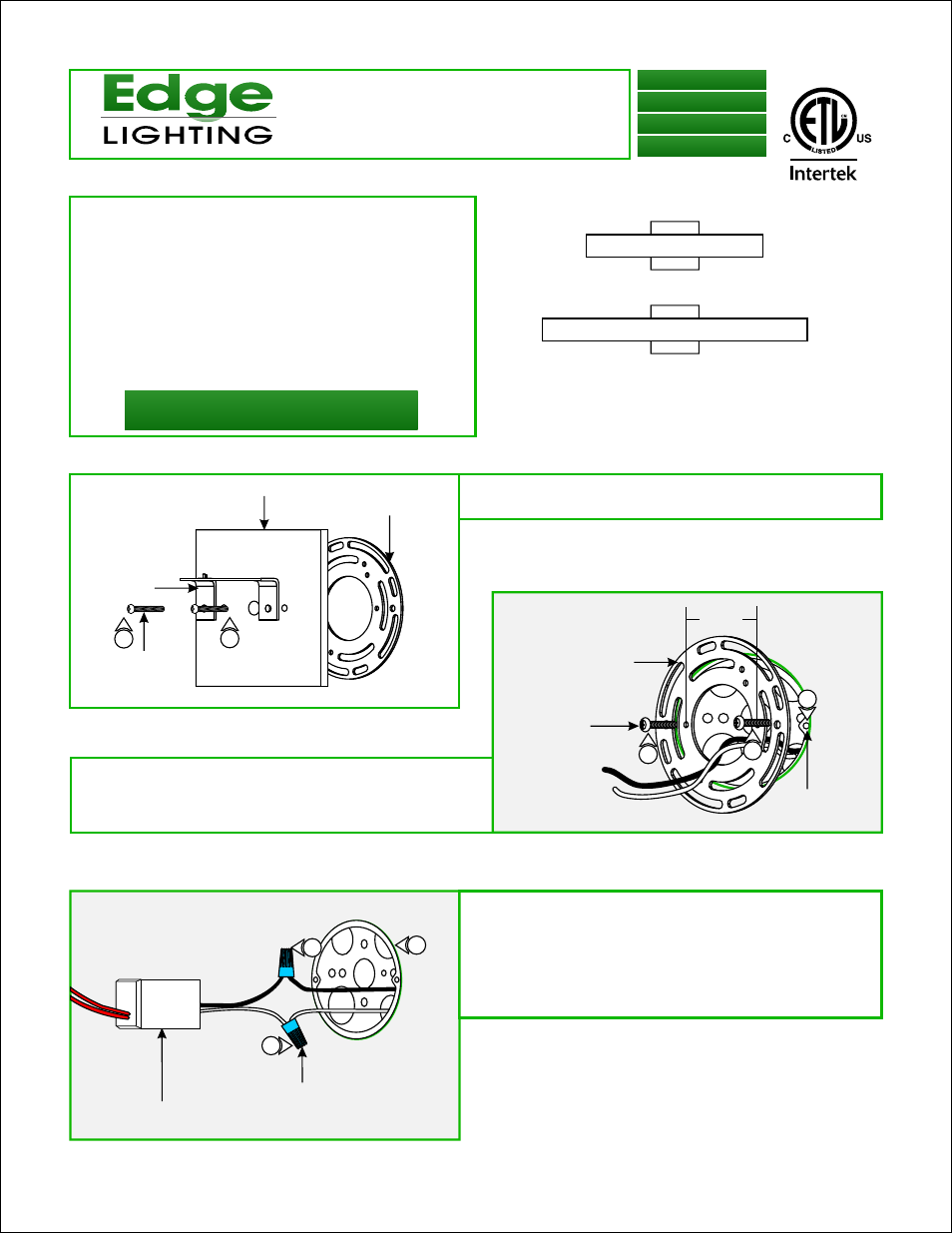

Install the Fixture
2:
the provided #8-32 screws so that the two inner threaded
holes (spaced 2-1/8" apart) on crossbar are leveled
horizontally.
Mount the universal crossbar to the electrical box holes with
#8-32 SCREW
UNIVERSAL CROSSBAR
ELECTRICAL
BOX HOLE
2
B
2
2
2-1/8"
APART
A
CANOPY
#8-32 SCREW
MOUNTING
BRACKET
UNIVERSAL
CROSSBAR
1:
the universal crossbar.
Loosen the two #8-32 screws from the canopy to remove
1
1
C
POWER SUPPLY
WIRE NUT
3
4
3: Connect the white power supply wire to the neutral power
wire with a wire nut.
4: Connect the black power supply wire to the hot power wire
with a wire nut.
5: Place the power supply and wires inside the electrical box.
5
ALPHA-16-L1-_
ALPHA-24-L1-_
ALPHA-7-L1-_
ALPHA-4-L1-_
- Use this fixture indoors only.
- This product is ETL listed for indoor dry locations.
- This product is wall mounted only.
- This product can mount to either a 4" square junction box
with round plaster ring or an octagon junction box.
- This product can be dimmed with a standard low-voltage
electronic dimmer.
- This product must be installed by a qualified electrician.
- Before beginning any electrical work, ensure that
power to the junction box is turned OFF.
