Edge Lighting Alpha - Manual (Page 2)

MOUNTING BRACKET TAB
2
D
7
6

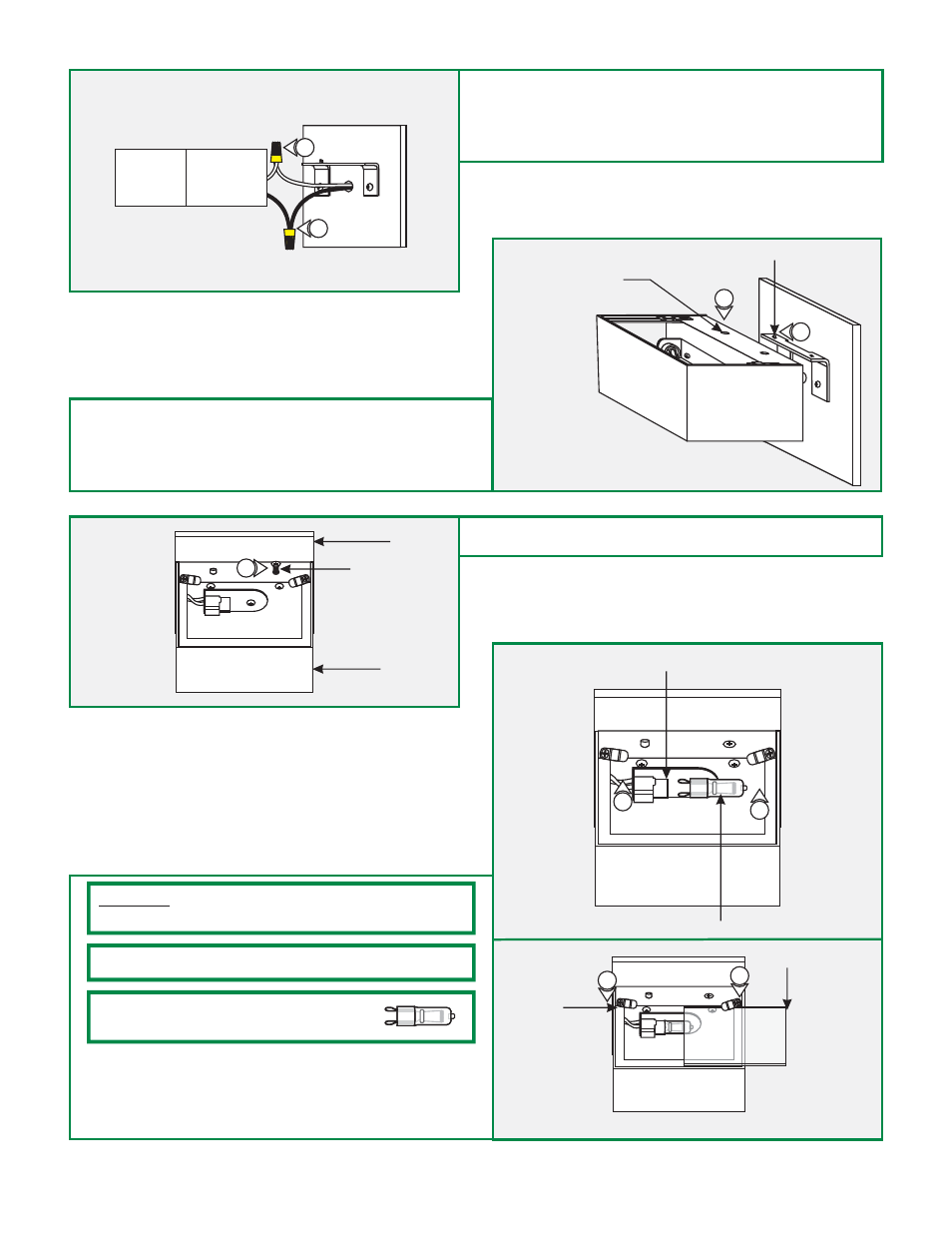

6: Connect the white fixture wire to the neutral power wire with
a wire nut.
7: Connect the black fixture wire to the hot power wire with a
wire nut.
E
FIXTURE BODY HOLE
9
8
8: Place all wires and wire nut connections behind the fixture
body.
9: Place the left fixture body hole onto the mounting bracket
tab.
FLAT HEAD
PHILLIPS SCREW
F
10
FIXTURE
BODY
CANOPY
10: Secure the other fixture body hole with the flat head
Phillips screw provided.
G
LAMP
SOCKET
11
11
GLASS COVER
SPRING
CLIP
12
12
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 60 Watt Type T4, G9 Base, Bi-Pin
Halogen Lamp.
NOTE: Use only fingers and a soft cloth to install the lamps.
11: Push the lamp pins completely into the socket holes.
12: Loosen the screws on the spring clips to insert the glass
cover under the clips. Slightly tighten the spring clip screws
to secure glass cover in place.
