Edge Lighting Alpha User Manual
Alpha 4 (halogen version), Install the fixture, Installation instructions for

SAVE THESE INSTRUCTIONS!
ALPHA-4-H1-_
M2-IND-_
- This product is ETL listed for indoor dry locations.
- This product is wall mounted only.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This product can be dimmed with a standard incandescent
dimmer.
Installation Instructions for
Alpha 4 (Halogen Version)
904-ALPHA-4-H1-04
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:
- Use this fixture indoors only.
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Turn power off and allow to cool before replacing lamp.
1
© 2009 Edge Lighting. All Rights Reserved.

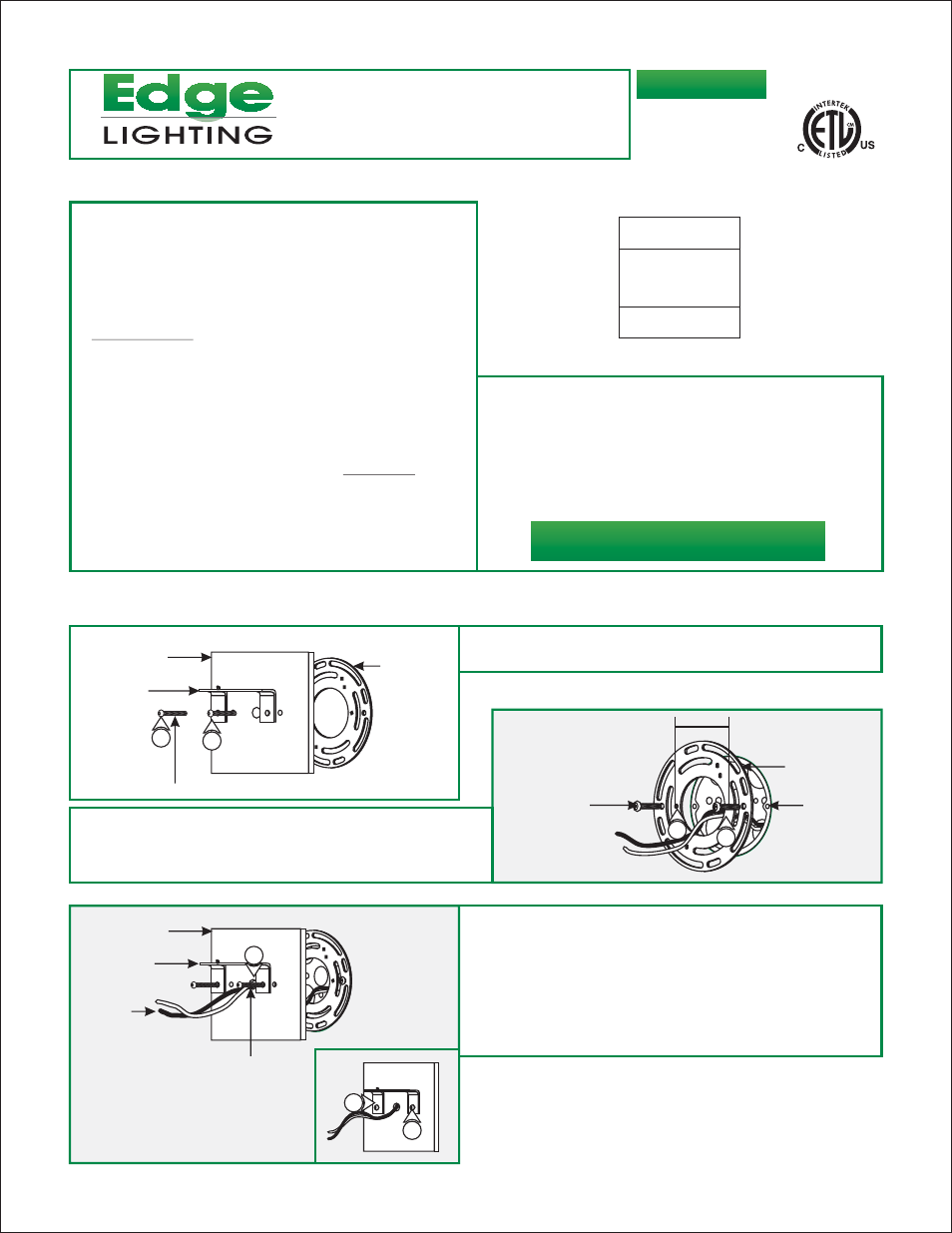

Install the Fixture
2:
the provided #8-32 screws so that the two inner threaded
holes (spaced 2-1/8" apart) on crossbar are leveled
horizontally.
Mount the universal crossbar to the electrical box holes with
#8-32 SCREW
B
2-1/8" APART
A
CANOPY
#8-32 SCREW
MOUNTING
BRACKET
UNIVERSAL
CROSSBAR
1:
the universal crossbar.
Loosen the two #8-32 screws from the canopy to remove
1
1
ELECTRICAL
BOX HOLE
UNIVERSAL
CROSSBAR
2
2
3: Feed the power wires through the canopy center hole.
4: Make sure that the canopy is grounded in accordance with
local electrical codes.
5: Secure the canopy to the universal crossbar by tightening
the two #8-32 screws through the mounting bracket holes
into the two inner threaded crossbar holes.
C
CANOPY
#8-32 SCREW
MOUNTING
BRACKET
POWER
WIRES
3
5
5
