Edge Lighting Cube-O LED - Manual (Page 2)

2
C

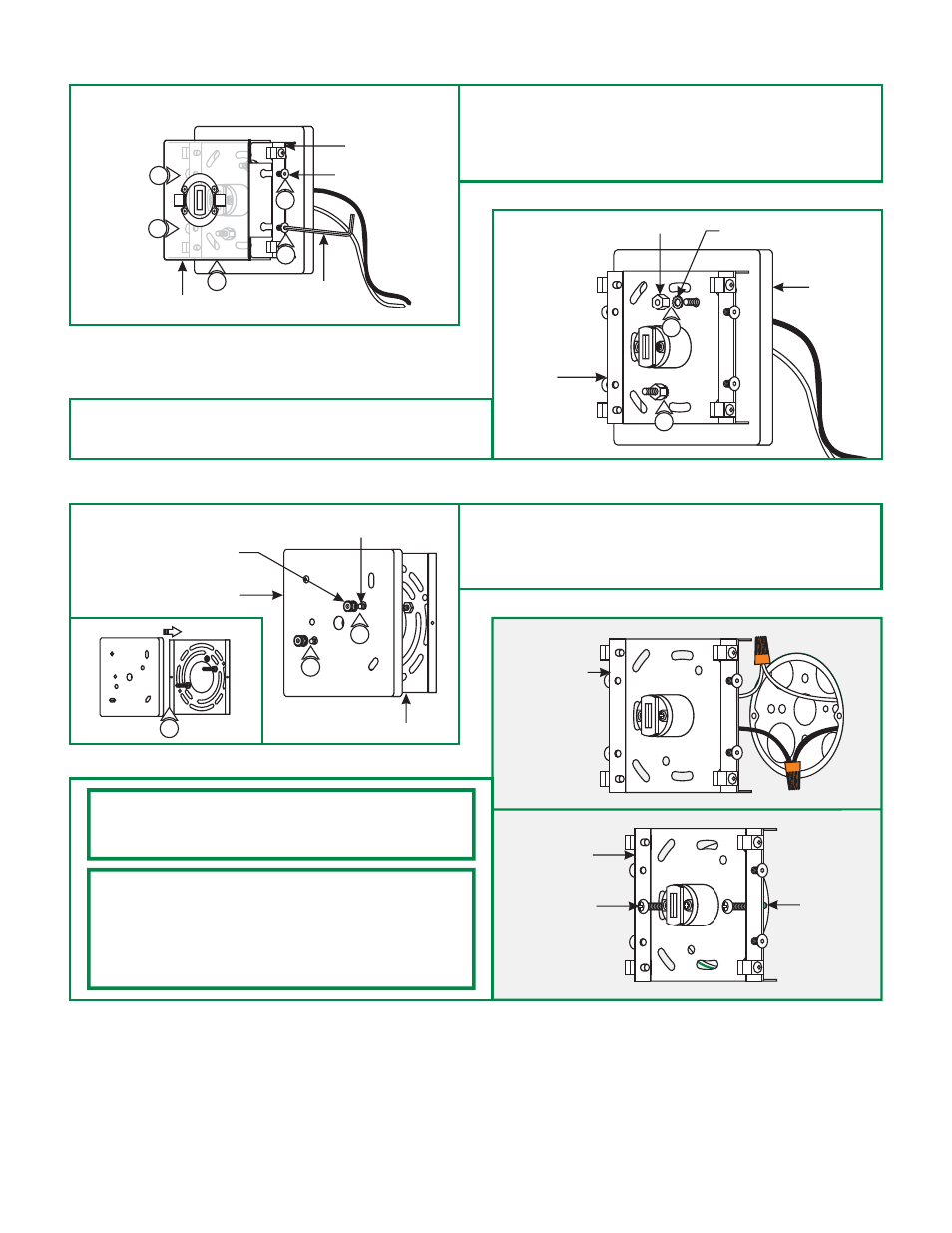

5: Loosen the four M5 screws on the sides of the socket plate
with the provided 2.5mm Allen wrench (Do Not Remove).
6: Pull off the socket housing plate from the socket plate.
D
7: Remove the two nuts and lock washers to lift the socket
plate off of the backplate.
E
8: Remove the two thumb nuts from the backplate threaded
studs.
9: Lift the mounting plate from the backplate.
2.5MM ALLEN
WRENCH
M5 SCREW 5
5
5
5
SOCKET HOUSING PLATE
6
SOCKET PLATE
SOCKET
PLATE
NUT
LOCK
WASHER
7
7
BACKPLATE
THREADED STUD
MOUNTING PLATE
THUMB NUT
8
8
9
BACKPLATE
F
NOTE: The mounting plate and backplate can be omitted for
indoor locations only if socket plate covers the entire electrical
box.
NOTE: For installation without the mounting plate and
backplate, connect the black and white socket plate wires to the
hot and neutral power wires respectively. Make sure that the
socket plate is grounded in accordance with electrical codes.
Mount the socket plate to the electrical box with two #8-32
screws and omit steps 10 through 17.
#8-32 SCREW
ELECTRICAL
BOX HOLES
SOCKET PLATE
SOCKET PLATE
