Edge Lighting Cube-O LED User Manual
Cube-o, Install the fixture, Installation instructions for

SAVE THESE INSTRUCTIONS!
CUBEO-H1-_
M2-IND-_
- This product is ETL listed for indoor and outdoor locations.
- RISK OF FIRE:
- This product can be wall or ceiling mounted.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This product can be dimmed with a standard incandescent
dimmer.
- This instruction shows a typical installation for indoor and
outdoor.
This product must be installed 4 ft above
the ground for wet locations.
Installation Instructions for
Cube-O
904-CUBEO-H1-03
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
IMPORTANT SAFETY INSTRUCTIONS

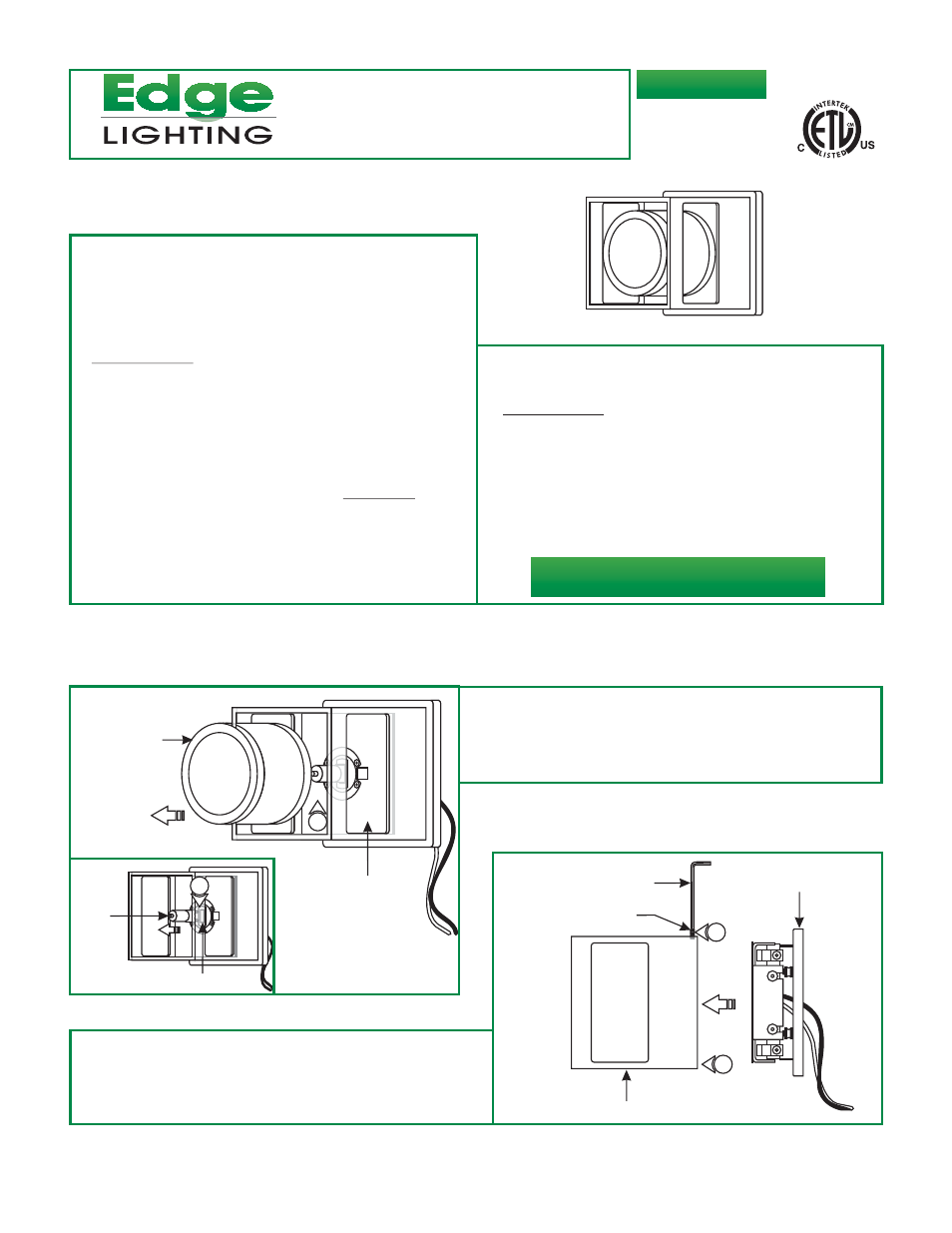

Install the Fixture
1: Carefully unscrew and remove the
socket housing plate.
2: Remove the lamp with a soft cloth.
glass shade from the
3:
provided 1.5mm Allen wrench (Do Not Remove).
4: Pull off the fixture housing from the backplate.
Loosen the M3 set screw on the fixture housing with the
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Turn power off and allow to cool before replacing lamp.
GLASS SHADE
B
1
A
SOCKET HOUSING
PLATE
1
SOCKET
LAMP
2
1.5MM ALLEN WRENCH
M3 SET SCREW
BACKPLATE
3
4
FIXTURE HOUSING
