Edge Lighting Crystal Spirits User Manual
Crystal spirit suspension, Install the fixture, Important information

SAVE THESE INSTRUCTIONS!
- This product is suitable for indoor locations.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This product is dimmable with a standard incandescent
dimmer.
IMPORTANT INFORMATION
Install the fixture
FABRIC
SHADE
A
H
CANOPY

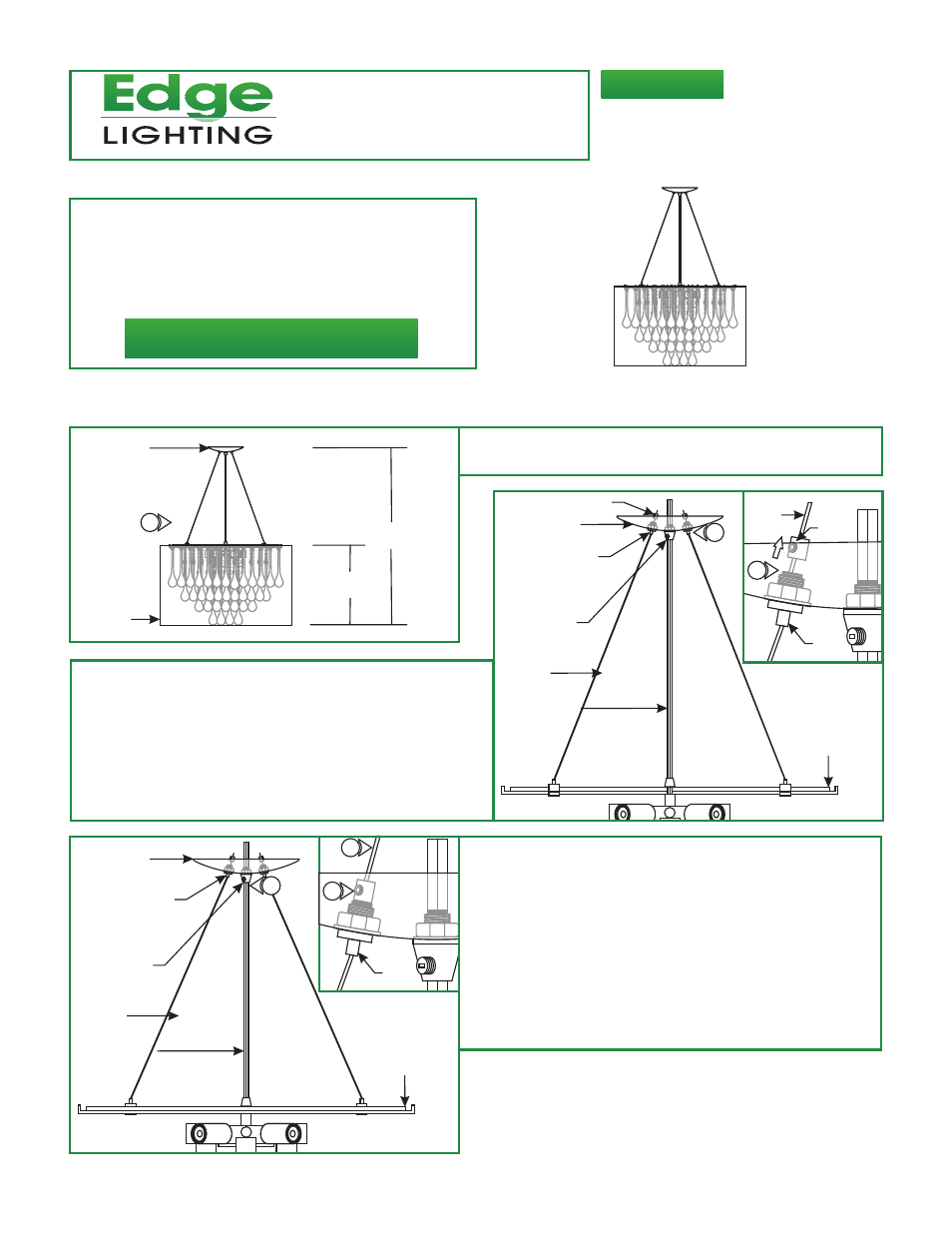

1: Determine the desired fixture height (H), from the bottom of
the fabric shade to the top of the canopy.
Installation Instructions for
Crystal Spirit Suspension
904-CRYSTALSPIRIT-02
CRYSTALSP-S-_
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
© 2011 Edge Lighting. All Rights Reserved.
2: Slide the canopy up and down by pushing the tab on each
aircraft cable grip until desired height is achieved. Release
the tab to lock the aircraft cable in place.
Loosen the M3 set screws on each strain relief with a 1.5mm
Allen wrench.
Slide the strain relief down the aircraft cable behind the cable
grip.
3:
4:
1
AIRCRAFT
CABLE
B
CLEAR CORD
CORD GRIP
CANOPY
CABLE GRIP
SOCKET
PLATE
2
CABLE
GRIP
M3 SET
SCREW
AIRCRAFT
CABLE
4
STRAIN RELIEF
5: T
6:
ighten the set screws on each strain relief.
Repeat steps 4 and 5 for remaining strain reliefs.
7: Trim off excess aircraft cable behind the strain reliefs with a
sharp cutter.
8: Loosen the slotted set screw on the cord grip and push the
excess clear cord into the canopy.
9: Tighten the slotted set screw on the cord grip to lock the
clear cord in place.
AIRCRAFT
CABLE
C
CLEAR CORD
CORD GRIP
CANOPY
CABLE GRIP
9
SOCKET
PLATE
CABLE
GRIP
7
5
1
14.5"
