Edge Lighting 4" Fast Jack Canopies Without Transformers - Manual (Page 2)

2
#8-32 SCREW
FAST JACK FIXTURE
2
KNURLED CAP
CANOPY
FAST JACK PORT
3

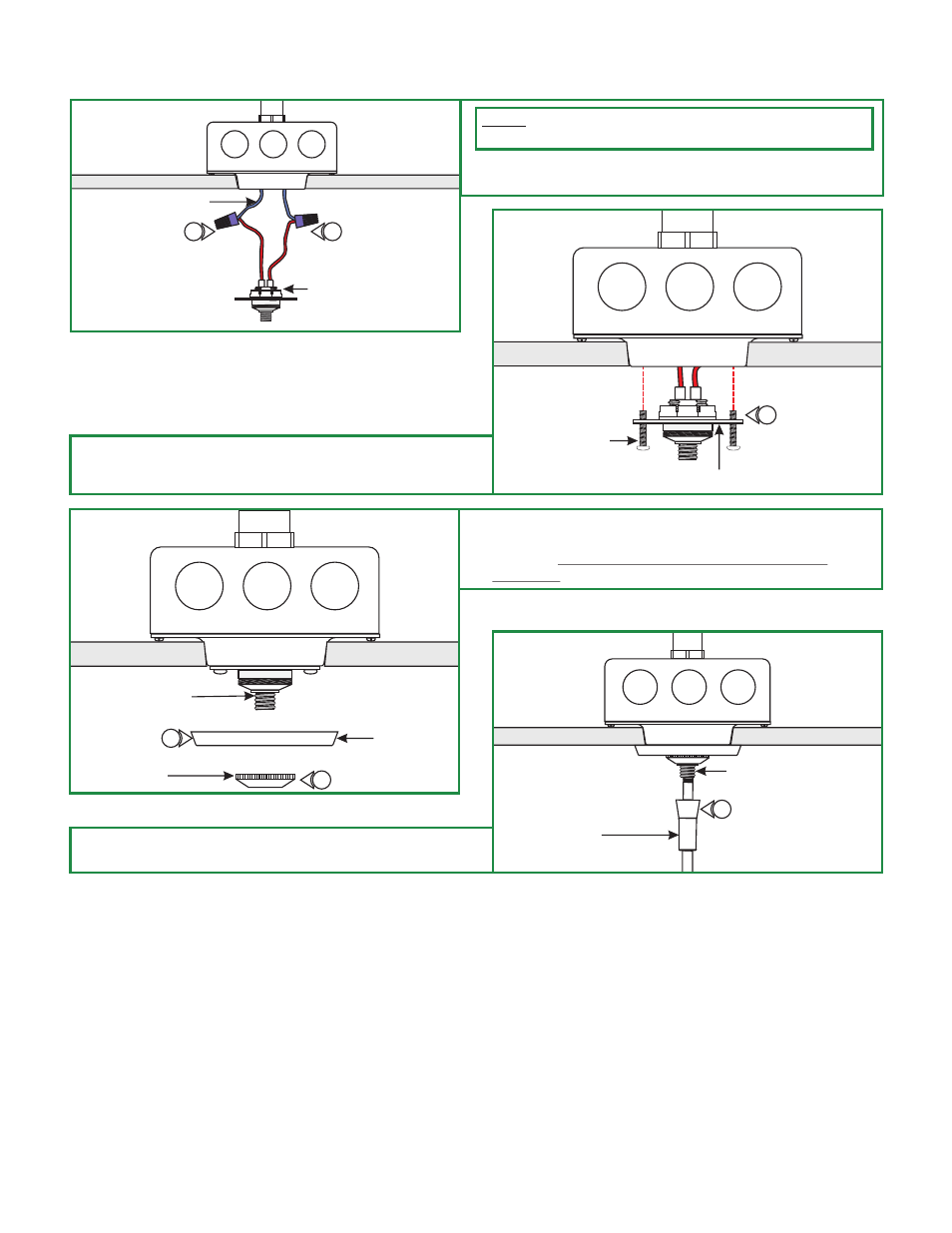

3: Place the canopy onto the Fast Jack port against drywall and
secure it in place by tightening the knurled cap to the Fast
Jack port. Make sure the knurled cap is not cross
threaded.
FAST JACK
PORT
FAST JACK FIXTURE
CONNECTOR
4:
the Fast Jack port. Use fingers to tighten the Fast Jack fixture connector into
CEILING
CEILING
CEILING
4
G
F
3
Install Fast Jack Port
D
CEILING
FAST JACK FIXTURE
TRANSFORMER
WIRES
1 1
E
1: Connect each remote transformer wire to one Fast Jack
fixture wire with a wire nut.
2: Place all wire and wire nut connections properly inside the
junction box. Mount the Fast Jack port to the 2" Plaster Ring
using two #8-32 screws provided.
NOTE: Ensure that power supply wires from remote
transformer are present in junction box before continuing.
