13
MONORAIL 2 CIRCUIT
FEED CONTACT SET SCREW
3

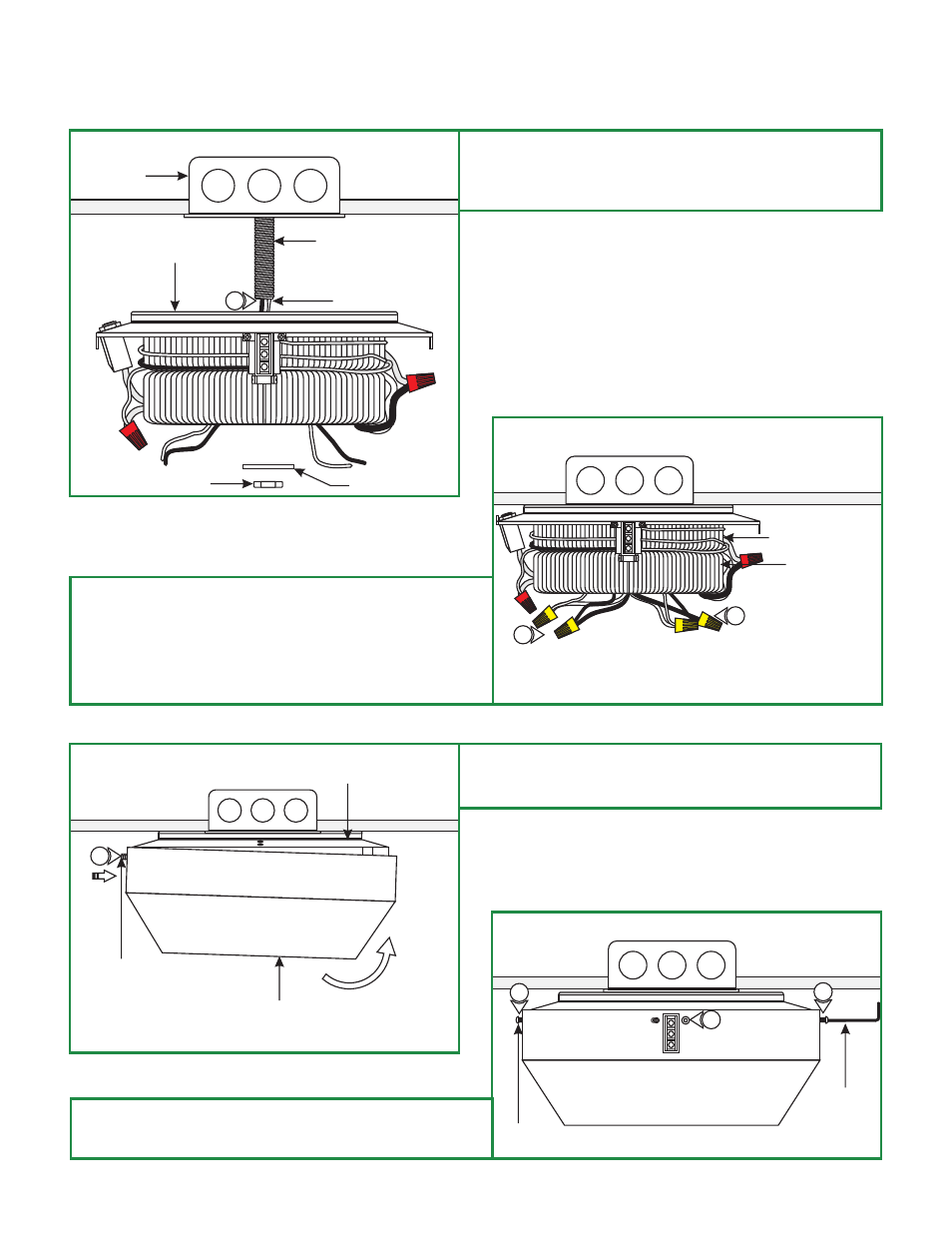

10: Feed the extension wires through the transformer housing
center hole. Slide the transformer housing onto the
crossbar assembly nipple and secure it in place by
tightening the washer and inside nut.
CROSSBAR ASSEMBLY
NIPPLE
E
ELECTRICAL
BOX
WASHER INSIDE NUT
EXTENSION WIRES 10
F
13: Hook one of the transformer cover screw holes next to the
rectangle cutout, onto the Monorail 2 circuit feed contact
set screw.
G
H
2MM ALLEN
WRENCH
14
14
M4 BUTTON
HEAD SCREW
14: Place the transformer cover onto the transformer housing.
Replace and tighten the five M4 button head screws with
the 2mm Allen wrench.
COVER
14
11
12
HOUSING
TOP TRANSFORMER
BOTTOM
TRANSFORMER
11: Connect the black and white 120 volt wires from the top
transformer to the one set of black and white extension
wires respectively with wire nuts.
12: Connect the black and white 120 volt wires from the top
transformer to the other set of brown and white extension
wires respectively with wire nuts.
HOUSING
