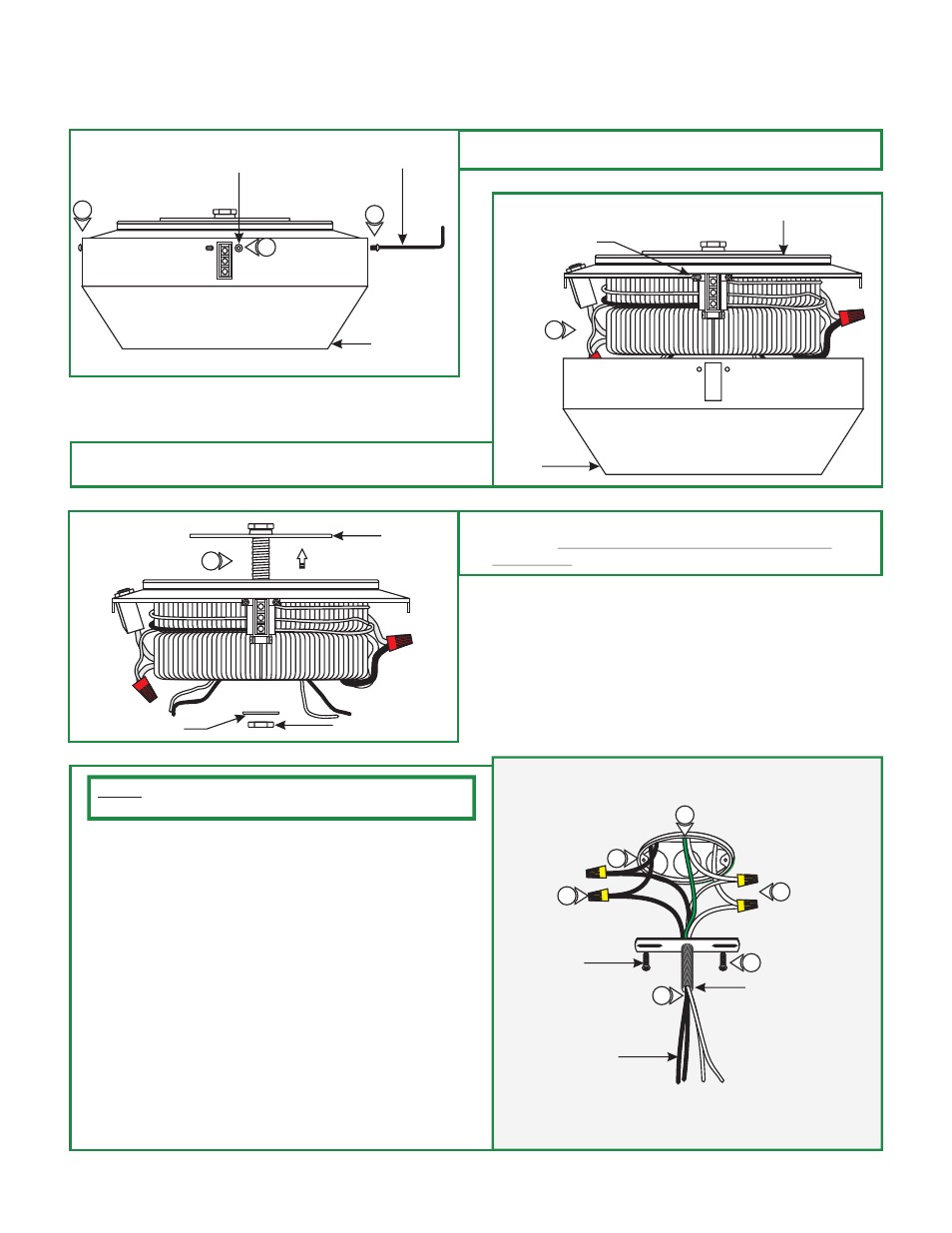

Install the Surface Mount Transformer
1: Loosen and remove the five M4 button head screws around
the transformer cover with the provided 2mm Allen wrench.
A
2: Unhook the transformer cover from the set screw and
remove it from the transformer housing.
B
COVER
1
2MM ALLEN WRENCH
2
3: Remove the inside nut and washer to remove the crossbar
assembly. DO NOT DISASSEMBLE THE CROSSBAR
ASSEMBLY. C
CROSSBAR
ASSEMBLY
WASHER INSIDE NUT
3
D
#8-32 SCREW
CROSSBAR ASSEMBLY
NIPPLE
7
4
8
6
M4 BUTTON HEAD SCREW
1
1
9
2
EXTENSION WIRES
4: Connect one set of provided white and black extension wires
to the neutral and hot power wires coming from a switch
respectively with the wire nuts provided.
5: Connect the other set of provided white and black extension
wires to the neutral and hot power wires coming from the
other switch respectively with the wire nuts provided.
6: Feed the extension wires through the crossbar assembly
nipple.
7: Place all wires and wire nut connections inside the electrical
box.
8: Mount the crossbar assembly to the electrical box with the
two provided #8-32 screws.
9: Make sure the crossbar assembly is grounded in accordance
with local electrical codes.
NOTE:
same phase of 120 volt power wires.
The 120 volt transformer wires must be connected to the
