Edge Lighting 600W/12V Dual Feed Surface Mount Magnetic Transformer User Manual
Page 4

4
4
ONE MONORAIL SECTION
K

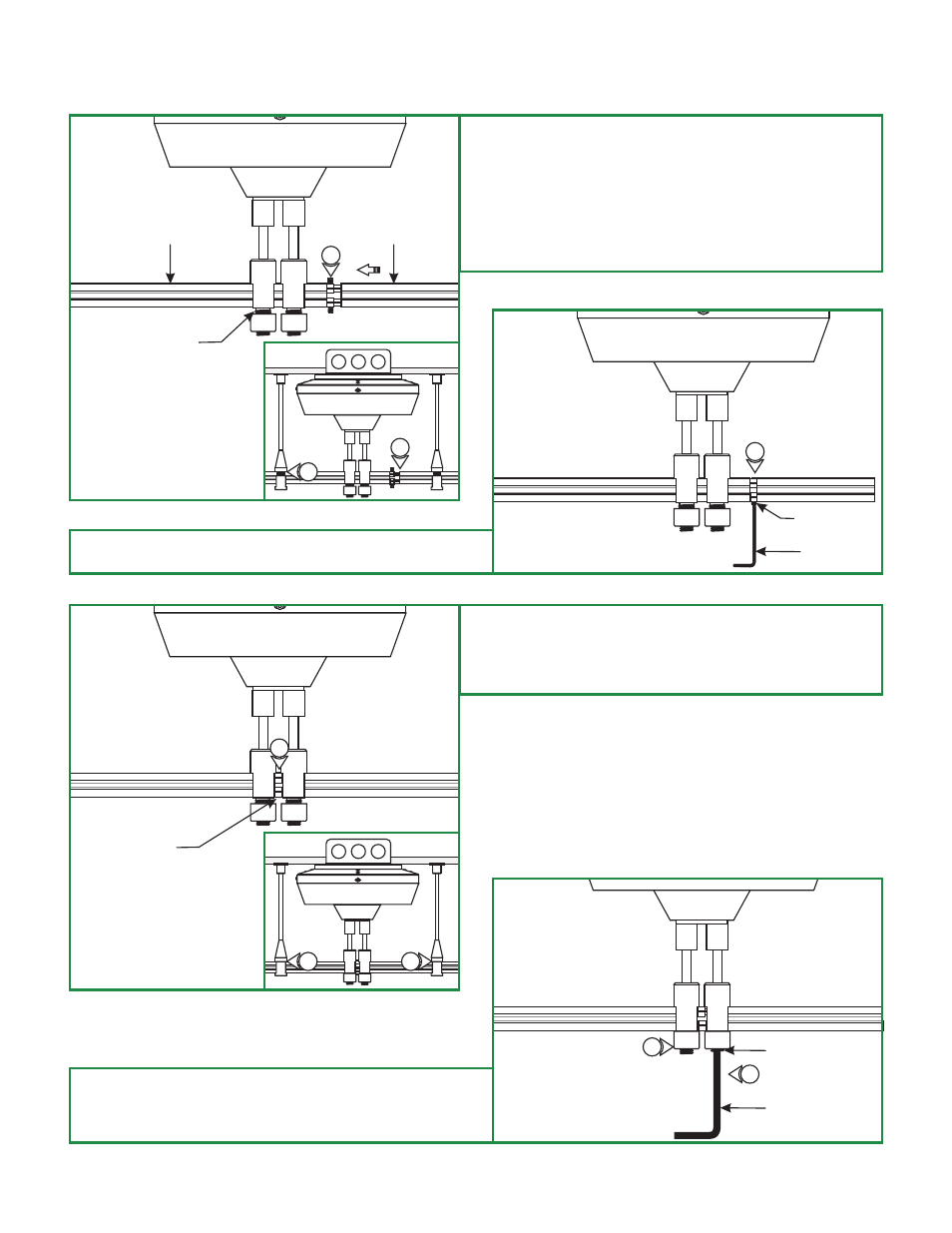

8: Place the other Monorail section into the opposite standoff
housings.
9: While supporting this Monorail section, screw (Do Not
Tighten Completely) the standoffs housing nipples to
support the Monorail section
10: Slide this Monorail section completely onto the other end of
the isolating connectors.
L
11: Tighten the #6-32 set screws on the isolating connectors
with the provided 1/16 Allen wrench.
10
10
11
#6-32 SET
SCREW
1/16 ALLEN
WRENCH
THE OTHER
MONORAIL SECTION
M
13
12: Slide the Monorail sections so that the isolating connectors
are located in the middle between the power housings.
13: Tighten the standoff housing completely to the standoff
housing nipples.
N
3/8-24 SETSCREW
3/16 ALLEN
WRENCH
14: Tighten the caps completely to the power housings.
15: Tighten the 3/8-24 set screw on each power cap with the
provided 3/16 Allen wrench.
12
13
14
STANDOFF
HOUSING
NIPPLE
ISOLATING
CONNECTORS
15
9
