Edge Lighting 4" Fast Jack Canopies - Manual (Page 2)

2
CAUTION: Risk of Fire: MAX load of Fast Jack canopy is 75
Watt.

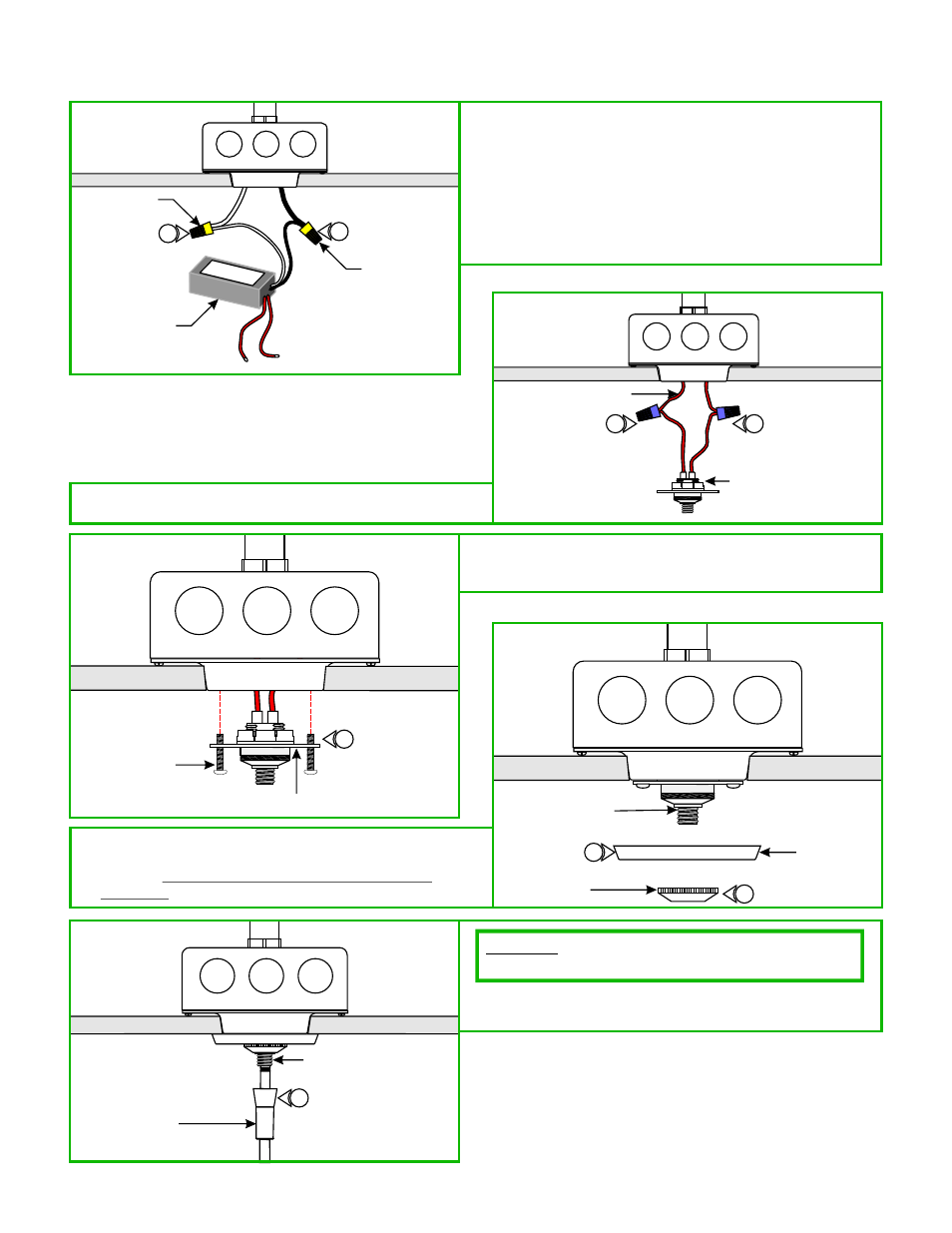

1: Turn the power to the junction box off.
2: Connect the white LED driver wire to the neutral power
wire with a wire nut.
3: Connect the black LED driver wire to the hot power wire
with a wire nut.
4: Place the LED driver and connections inside the junction box.
2 3
Install Fast Jack Port
CEILING
FAST JACK FIXTURE
TRANSFORMER
WIRES
5: Connect each transformer wire to one Fast Jack fixture
wire with a wire nut.
CEILING
#8-32 SCREW
FAST JACK FIXTURE
6
6: Place all wire and wire nut connections properly inside the
junction box. Mount the Fast Jack port to the 2" Plaster Ring
using two #8-32 screws provided.
KNURLED CAP
CANOPY
FAST JACK PORT
7
7: Place the canopy onto the Fast Jack port against drywall and
secure it in place by tightening the knurled cap to the Fast
Jack port. Make sure the knurled cap is not cross
threaded.
FAST JACK
PORT
FAST JACK FIXTURE
CONNECTOR
8:
the Fast Jack port. Use fingers to tighten the Fast Jack fixture connector into
5 5
CEILING
CEILING
CEILING
8
D
E
F
G
H
LED DRIVER
WIRE NUT
WIRE NUT
7
