Edge Lighting 2 Circuit 4" Round Adjustable Power Feed Canopies - Manual (Page 2)

CAP
3/8-24 SET SCREW
POWER HOUSING
1
MIDDLE
CONTACT
2
KNURLED
NUT
3

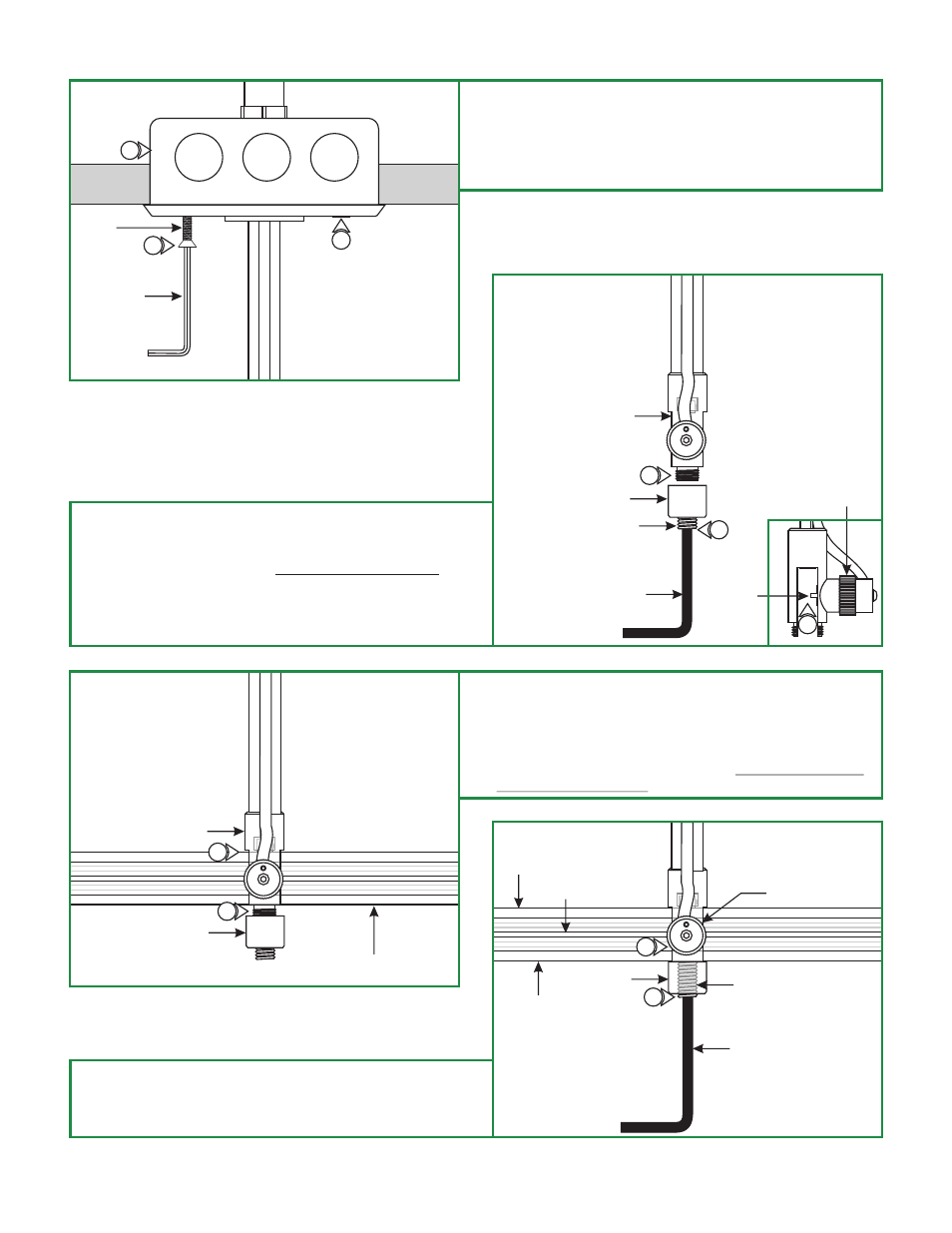

9: Place all wires and wire nut connections inside the electrical
box.
10: Secure the power feed canopy to the electrical box by
tightening the two provided #8-32 screws with the 3/32
Allen wrench.
2
1: Unscrew the cap from power housing.
2: Slightly loosen the 3/8-24 set screw on the cap with the
3/16 Allen wrench provided, DO NOT REMOVE THEM.
3: Slightly loosen the knurled nut on the power housing so that
the middle contact moves back and clears the power housing
opening.
D
Install the Monorail 2 Circuit
to the Power Feed Canopy
C
10
3/32 ALLEN
WRENCH
#8-32
SCREW
10
9
E
CAP
POWER HOUSING
MONORAIL 2 CIRCUIT
4
5
4: Place a section of Monorail 2 Circuit into the power housing.
Make sure that the Monorail 2 Circuit is supported by the
standoffs. Refer to the instructions provided with the
standoffs.
5: Tighten the cap to the power housing. Make sure the cap
is not cross threaded.
F
CAP
3/8-24 SET SCREW
6: Tighten the 3/8-24 set screw on the cap firmly with the 3/16
Allen wrench provided for proper power connection.
7: Tighten the knurled nut firmly for proper power connection.
HOT 1
HOT 2
COM
KNURLED NUT
7
3/16 ALLEN WRENCH
6
3/16 ALLEN WRENCH
