Edge Lighting 2 Circuit Out-Riggers User Manual
Monorail 2 circuit out rigger power feed, Install the power feed canopy, Installation instructions for

SAVE THESE INSTRUCTIONS!
M2P-4RD-OUT-_
- This product is ETL listed for indoor dry locations.
- This product can be installed to a 4" electrical box with
round plaster ring, or to an octagon electrical box.
- Minimum electrical box volume must be 6 cubic inches
(98 cubic centimeters).
- This product should be installed by a qualified electrician.
Installation Instructions for
Monorail 2 Circuit Out Rigger Power Feed
Install the Power Feed Canopy
1
904-M2P-4RD-OUT-02
IMPORTANT INFORMATION
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com

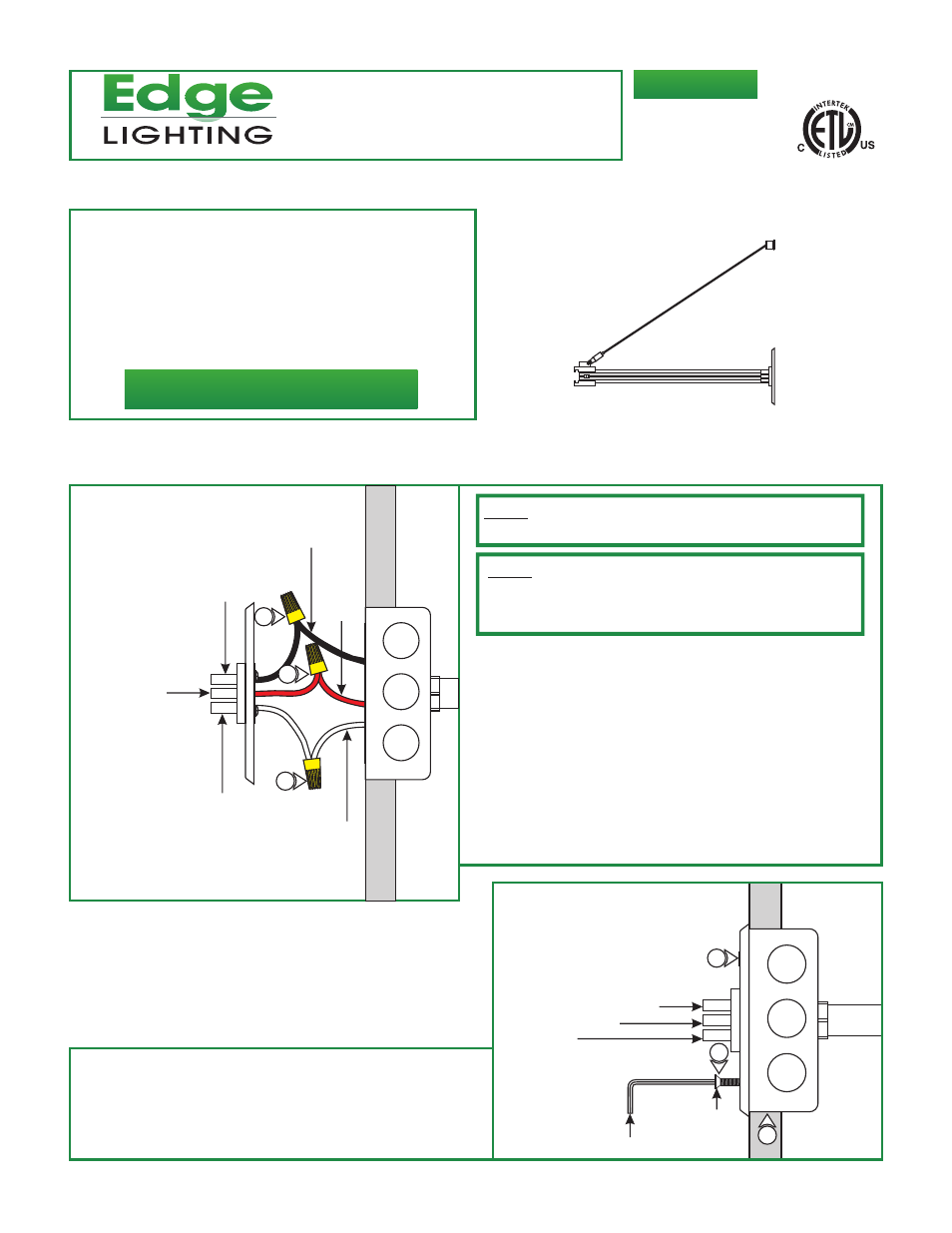

1: Turn the power to electrical box off.
2: Connect the wire that is attached to the bottom end
connector (white wire) to the low voltage wire marked
"COM" with a wire nut.
3: Connect the wire that is attached to the middle end
connector
to the low voltage wire marked "HOT
2" with a wire nut.
4: Connect the wire that is attached to the top end connector
to the low voltage wire marked "HOT 1" with a
wire nut.
(red wire)
(black wire)
NOTE:
Use the universal round crossbar (provided) if the electrical
box holes are not spaced 2-3/4" apart.
NOTE:
The low voltage wires should be present in the electrical
box. Refer to the instructions provided with the remote
transformer to install the transformer and the low voltage wires
before proceeding with the steps below.
5: Place all wires and wire nut connections inside the electrical
box.
6: Secure the power feed canopy to the electrical box by
tightening the two provided #8-32 screws with the 3/32
Allen wrench.
BOTTOM END
CONNECTOR
TOP END
CONNECTOR
COM
2
4
MIDDLE END
CONNECTOR
HOT 1
A
HOT 2
3
B
#8-32
SCREW
3/32 ALLEN WRENCH
6
6
5
COM
HOT 2
HOT 1
