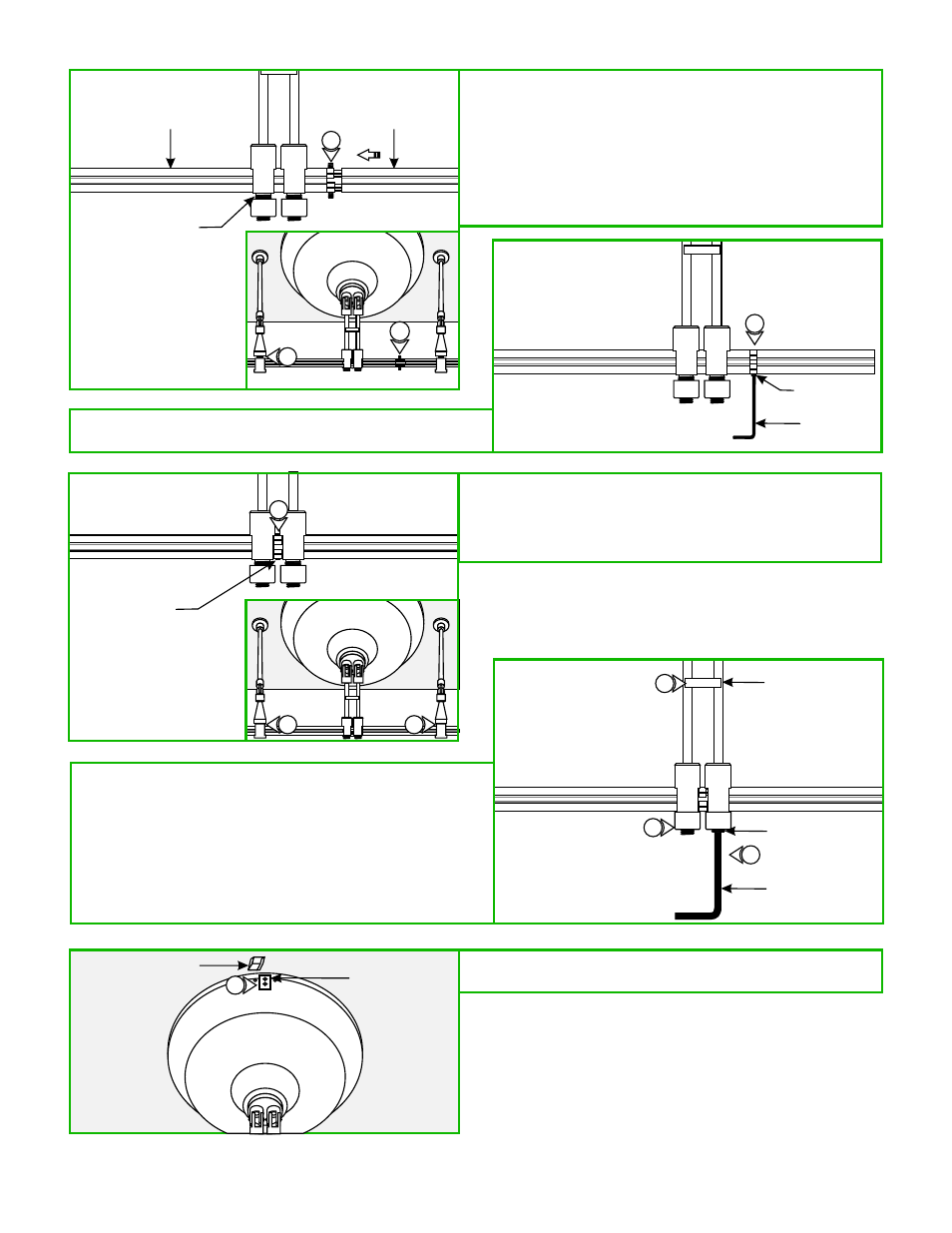

ONE MONORAIL SECTION
K 8: Place the other Monorail section into the opposite standoff
housings.
9: While supporting this Monorail section, screw (Do Not
Tighten Completely) the standoffs housing nipples to
support the Monorail section
10: Slide this Monorail section completely onto the other end of
the isolating connectors.
10
THE OTHER
MONORAIL SECTION
STANDOFF
HOUSING
NIPPLE
9
10
L
11: Tighten the #6-32 set screws on the isolating connectors
with the provided 1/16 Allen wrench.
11
#6-32 SET
SCREW
1/16 ALLEN
WRENCH
M 12: Slide the Monorail sections so that the isolating connectors
are located in the middle between the power housings.
13: Tighten the standoff housing completely to the standoff
housing nipples.
12
ISOLATING
CONNECTORS
N
3/8-24 SETSCREW
3/16 ALLEN
WRENCH
14: Tighten the caps completely to the power housings.
15: Tighten the 3/8-24 set screw on each power cap with the
provided 3/16 Allen wrench.
16: Slide the spacer(s) onto the power feed extended arms
evenly. Do not remove the spacer(s) which may cause the
power feed housings come into contact and electrically
short.
14
15
16 SPACERS
O
MONORAIL FEED
CONTACT
PLASTIC INSERT
17
17: Plug the Monorail feed contacts with the provided plastic
inserts.
