Install the monorail to out rigger power feed – Edge Lighting Out-Riggers User Manual
Page 4

Install the Monorail to Out
Rigger Power Feed
K

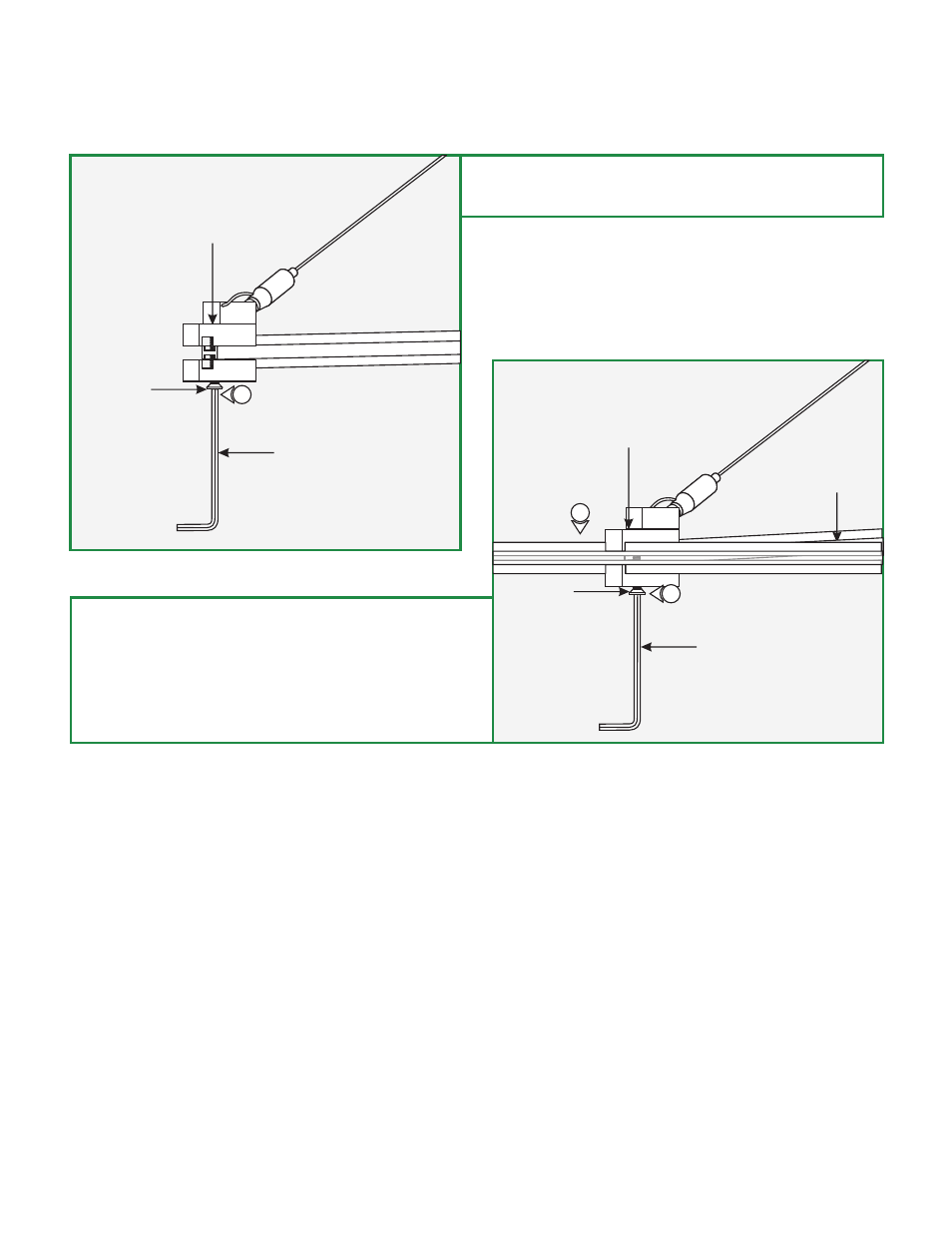

1: Slightly loosen the M5 screw on the bottom of Monorail
housing connector, (Do Not Remove) with the 2.5mm
Allen wrench.
2.5MM ALLEN WRENCH
2: Slide the Monorail through the opening of the Monorail
housing connector. Make sure that the Monorail is supported
by the Monorail out rigger standoffs. (Refer to the instruction
provided with the Monorail out rigger standoffs).
3: Adjust the Monorail in the Monorail housing connector and
firmly tighten the M5 screw with the 2.5mm Allen wrench to
properly power the Monorail.
M5 SCREW
M5 SCREW
2.5MM ALLEN WRENCH
MONORAIL
L
4
1
3
2
MONORAIL HOUSING CONNECTOR
MONORAIL HOUSING CONNECTOR
