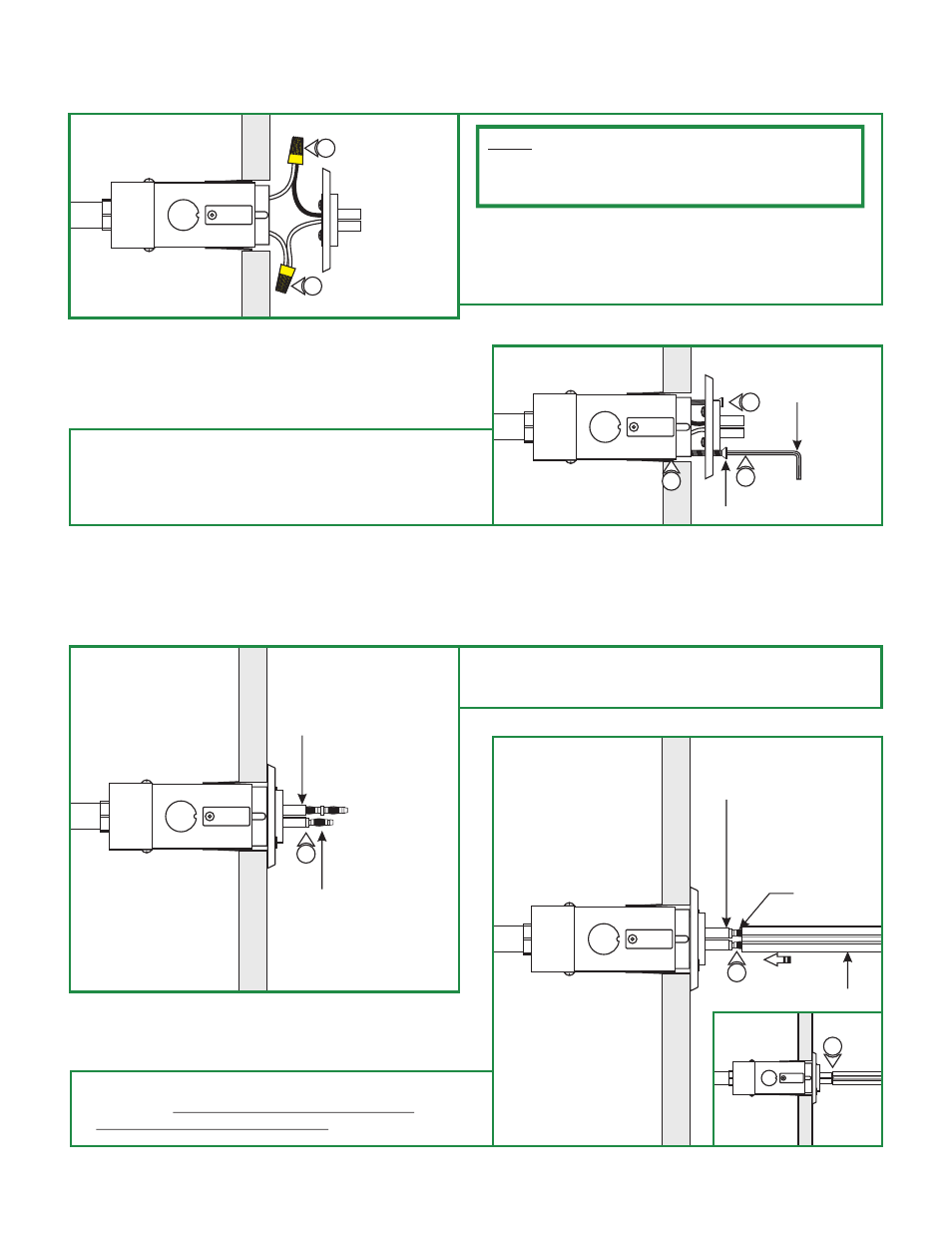

Edge Lighting Direct-End Power Feed Canopies - Manual (Page 2)

E
2
1: Push the straight conductive connectors into the canopy end
connector.
F
2: Push a Monorail section entirely onto the straight conductive
connectors. Make sure that Monorail section is
supported by Monorail standoffs.
Install the Monorail to Power Feed Canopy
STRAIGHT CONDUCTIVE
CONNECTOR
1
CANOPY END
CONNECTOR
2
2
CANOPY END
CONNECTOR
STRAIGHT
CONDUCTIVE
CONNECTOR
MONORAIL
Install the Canopy
C
2
2
1: Turn the power to the 2" electrical box off.
2: Connect each low voltage wire coming from the remote
transformer to one power feed canopy wire with a wire nut.
NOTE: The low voltage wires should be present in the 2"
electrical box. Refer to the instructions provided with the remote
transformer to install the transformer and the low voltage wires
before proceeding with the steps below.
D
3/32 ALLEN
WRENCH
#8-32SCREW
4
4
3
3: Place all wires inside the 2" electrical box.
4: Secure the power feed canopy to the 2" electrical box by
tightening the two provided #8-32 screws with the 3/32
Allen wrench.
