Edge Lighting Crystal Spirit - Manual (Page 3)

3
G

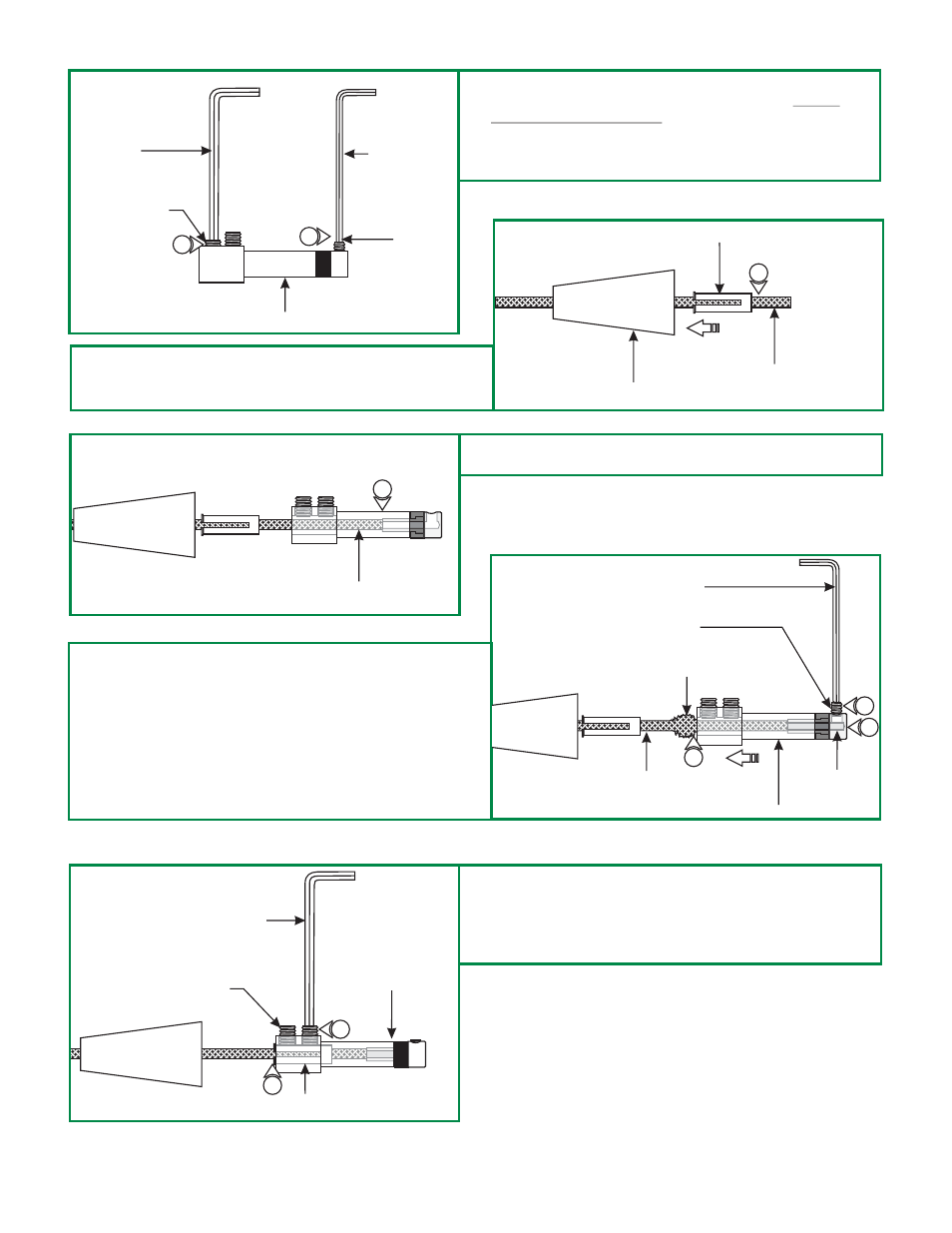

2: Loosen the two M4 set screw on base of the coaxial fixture
connector with the 2mm Allen wrench provided. Do not
remove these set screw.
3: Remove the M3 set screw on tip of the connector with the
1.5mm Allen wrench provided.
H
M4 SET SCREW
M3 SET
SCREW
1.5MM ALLEN
WRENCH
2MM ALLEN
WRENCH
CONICAL NIPPLE
STRAIN RELIEF TUBE 3
I
4: Feed the coaxial cable through the conical nipple and flared
side of the strain relief tube. Slide the conical nipple and
strain relief tube down the coaxial cable.
5: Feed the coaxial cable into the coaxial fixture connector. The
coaxial cable will come to a stop point.
COAXIAL CABLE
COAXIAL CABLE
4
5
COAXIAL FIXTURE CONNECTOR
2
6: Keep feeding the coaxial cable in until the inner wire is
visible in the screw hole of the fixture connector tip. The
outer metal jacket will start to wrinkle.
7: Hold the fixture connector in place. Replace and tighten the
M3 set screw on fixture connector tip with the 1.5mm Allen
wrench.
8: Pull down the outer metal jacket to smooth the wrinkles.
WRINKLE
OUTER METAL JACK INNER WIRE
6
7
J
1.5MM ALLEN WRENCH
M3 SET SCREW
8
FIXTURE CONNECTOR
10
2MM ALLEN WRENCH
M4 SET SCREW
STRAIN RELIEF TUBE
COAXIAL FIXTURE
CONNECTOR
K
9
9: Push the strain relief tube completely into the coaxial
fixture connector. Make sure the slot on the strain relief
tube is not inline with the M4 set screw.
10: Tighten the two M4 set screws with the 2mm Allen wrench.
