Edge Lighting Crystal Spirit - Manual (Page 2)

2
C
CRYSTAL STRING
METAL DISK
5
METAL DISK DETAIL
D
6
CRYSTAL
DROP

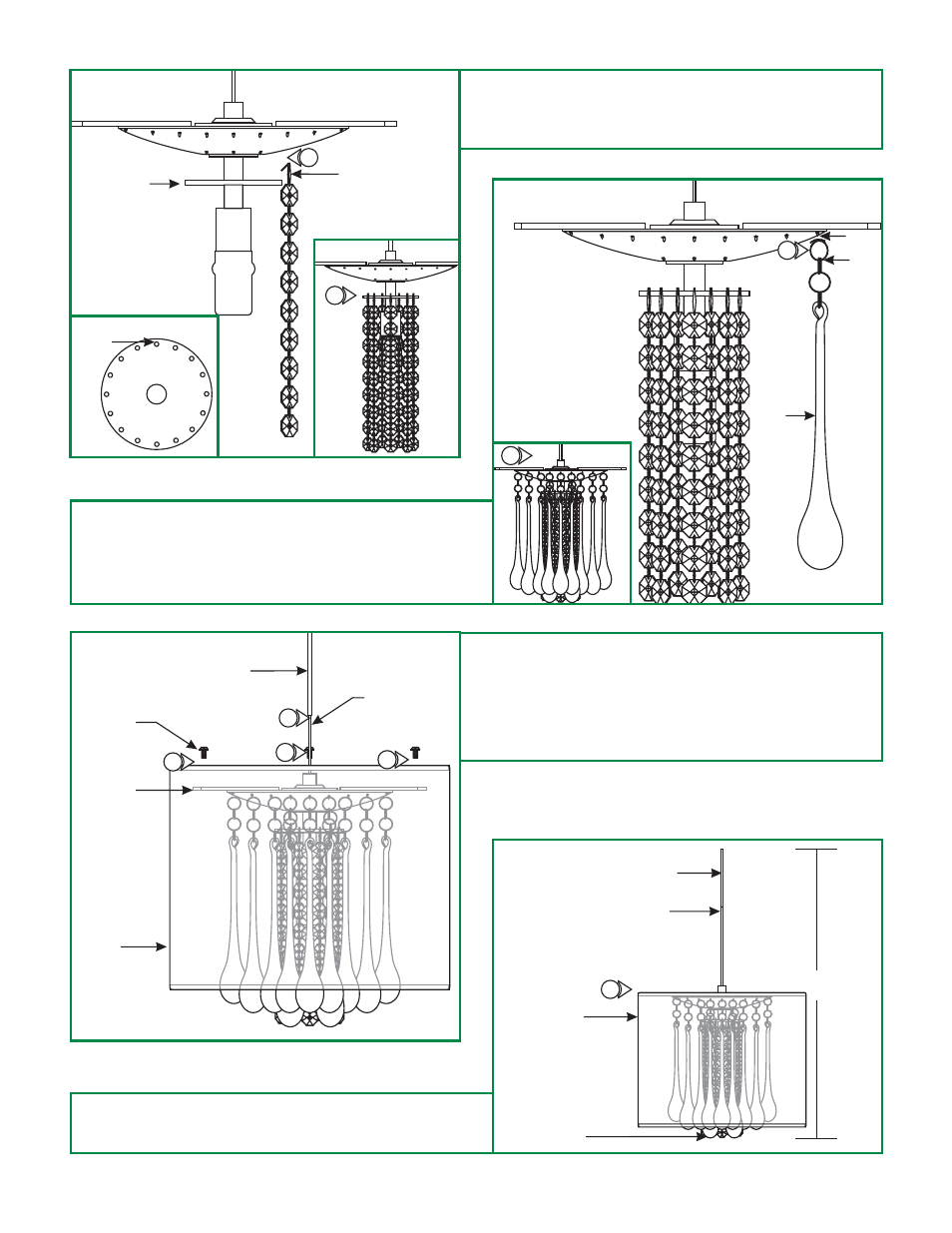

7: Install a crystal drop, by squeezing the key ring to open the
end. Slide the end through the hoop and rotate it inside the
hoop to lock in place.
8: Repeat step 7 to install remaining crystals drops.
KEY
RING
HOOP
7
8
E
9 9
9
9: Feed the coaxial cable through the fabric shade and lower
the fabric shade to rest onto the assembly bracket. Secure
the shade to the assembly bracket by using the three
Phillips screws
10: Slide the stem down the coaxial cable adjacent to the
fixture assembly.
FIXTURE
BRACKET
FABRIC
SHADE
PHILLIPS
SCREW
HOLE
STEM
COAXIAL CABLE
10
5: Take one of the crystal strings and insert the hook into one
of the holes on the metal disk.
6: Repeat step 5 to install remaining crystal strings.
Adjust the Fixture Height
F
H 1
FABRIC SHADE
COAXIAL
CABLE
STEM
CRYSTAL
1: Cut the coaxial cable to the desired height (H) with a sharp
cutter. The overall fixture height is measured from the
bottom of the crystals to the end of the coaxial cable.
