Circuit #1 circuit #2 – Edge Lighting Izar User Manual
Page 3
3
CIRCUIT #1
CIRCUIT #2
1
2
N
1
2
N

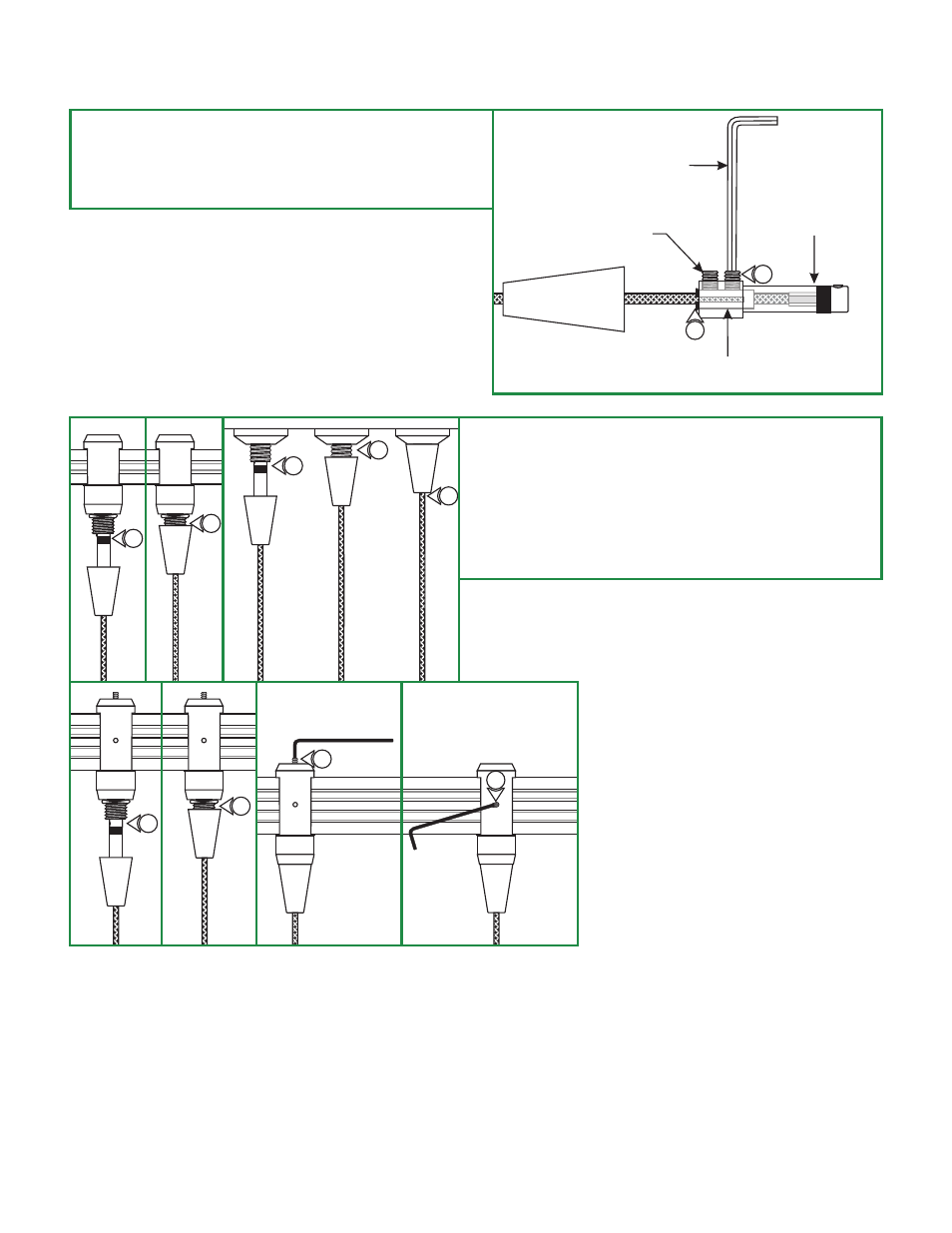

10: Push the strain relief tube completely into the coaxial
fixture connector. Make sure the slot on the strain relief
tube is not inline with the M4 set screw.
11: Tighten the two M4 set screws with the 2mm Allen wrench.
11
2MM ALLEN WRENCH
M4 SET SCREW
STRAIN RELIEF TUBE
12: Use fingers to tighten the Fast Jack fixture connector into
the Fast Jack system connector (Monorail, Monorail Wall,
Monorail 2 Circuit, or multi-port and mono-point canopies.
Refer to the instructions provided with the system
connector or canopy).
13: Refer to the instructions provided with the Monorail 2
Circuit fixture connector to choose the Circuit #1 or Circuit
#2.
12
12
12
12
12
13
13
COAXIAL FIXTURE
CONNECTOR
G
10
12
12
H
