2
C

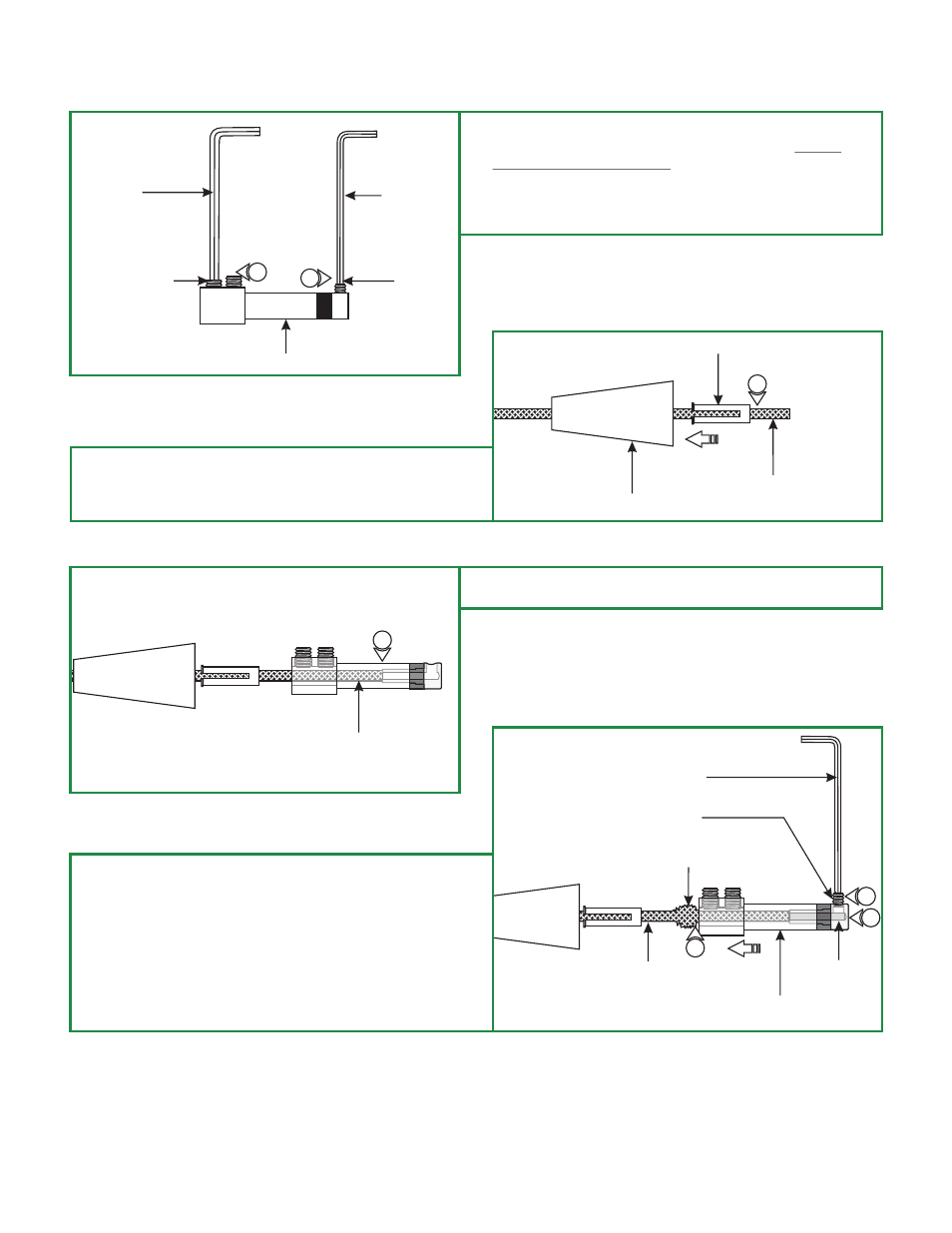

3: Loosen the two M4 set screw on base of the coaxial fixture
connector with the 2mm Allen wrench provided. Do not
remove these set screws.
4: Remove the M3 set screw on tip of the connector with the
1.5mm Allen wrench provided.
D
M4 SET SCREW
M3 SET
SCREW
1.5MM ALLEN
WRENCH
2MM ALLEN
WRENCH
CONICAL NIPPLE
STRAIN RELIEF TUBE
3
4
E
5: Feed the coaxial cable through the conical nipple and flared
side of the strain relief tube. Slide the conical nipple and
strain relief tube down the coaxial cable.
6: Feed the coaxial cable into the coaxial fixture connector. The
coaxial cable will come to a stop point.
COAXIAL CABLE
COAXIAL CABLE
5
6
COAXIAL FIXTURE CONNECTOR
WRINKLE
OUTER METAL JACK INNER WIRE
7
8
F
1.5MM ALLEN WRENCH
M3 SET SCREW
9
FIXTURE CONNECTOR
7: Keep feeding the coaxial cable in until the inner wire is
visible in the screw hole of the fixture connector tip. The
outer metal jacket will start to wrinkle.
8: Hold the fixture connector in place. Replace and tighten the
M3 set screw on fixture connector tip with the 1.5mm Allen
wrench.
9: Pull down the outer metal jacket to smooth the wrinkles.
