Edge Lighting Bloom - Manual (Page 2)

2
C

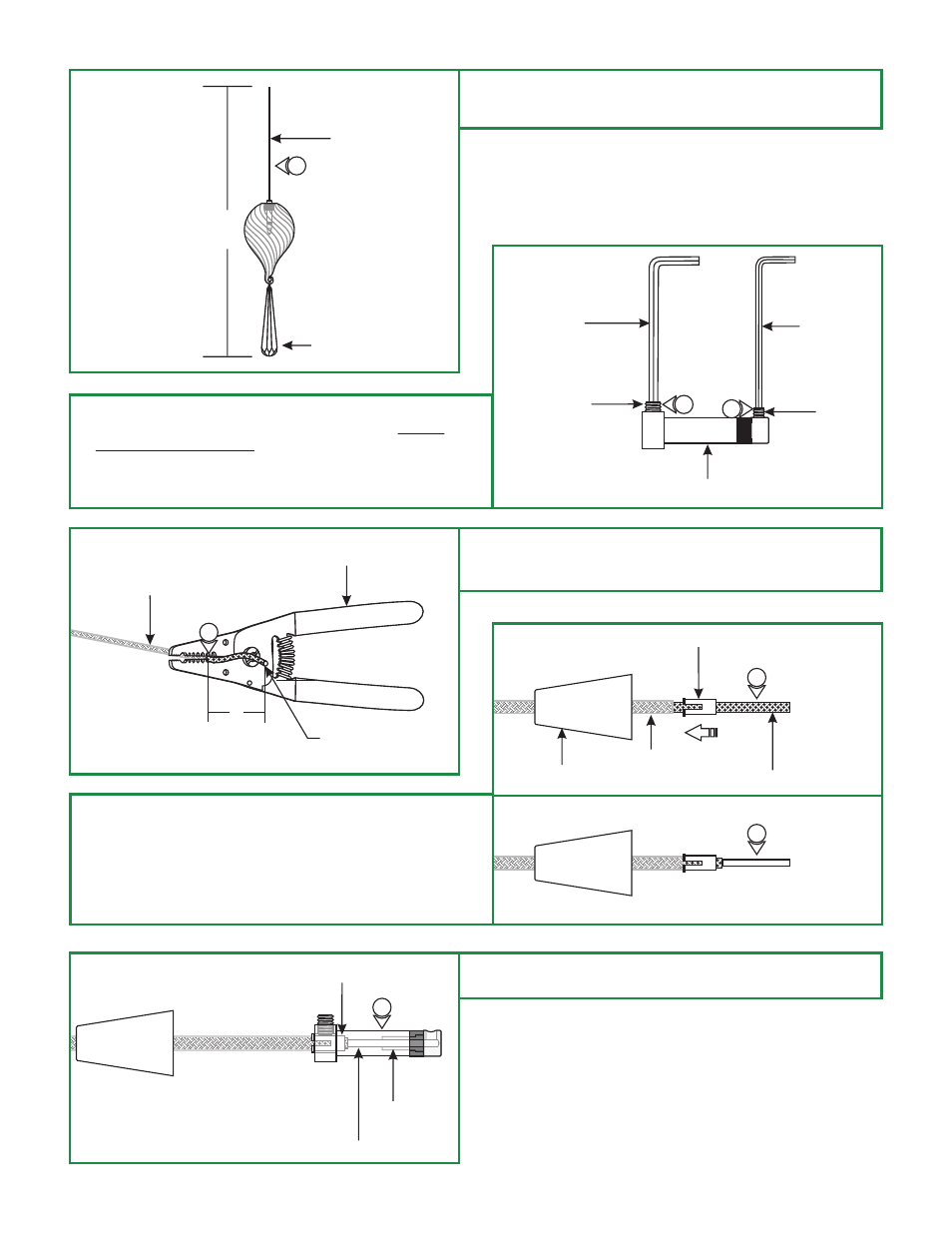

3: Cut the coaxial cable to the desired length (H) with a sharp
cutter. The overall fixture height is measured from the
bottom of the glass shade to the end of the coaxial cable.
D
M4 SET SCREW M3 SET
SCREW
1.5MM ALLEN
WRENCH 2MM ALLEN
WRENCH
4
5
COAXIAL FIXTURE CONNECTOR
4: Loosen the M4 set screw on base of the coaxial fixture
connector with the 2mm Allen wrench provided. Do not
remove this set screw.
5: Remove the M3 set screw on tip of the connector with the
1.5mm Allen wrench provided.
E
COAXIAL CABLE
INSULATION
WIRE STRIPPER
1"
6
6: Use the #12 gauge hole of the AWG wire strippers to strip
1" of the insulation cover from the end so that the bare
coaxial cable is exposed.
F
CONICAL NIPPLE
STRAIN RELIEF TUBE
OUTER METAL JACKET
7
8
INSULATION
7: Feed the coaxial cable through the conical nipple and flared
side of the strain relief tube. Slide the conical nipple down
the coaxial cable. Slide the strain relief tube against the
insulation.
8: Use the #14 gauge hole of the AWG wire strippers to strip
the outer metal jacket exposed behind the strain relief tube.
G
INNER WIRE
9
STRAIN RELIEF TUBE
FIXTURE
CONNECTOR
9: Feed the inner coaxial cable along with strain relief tube
into the coaxial fixture connector.
H
3
COAXIAL CABLE
CRYSTAL
