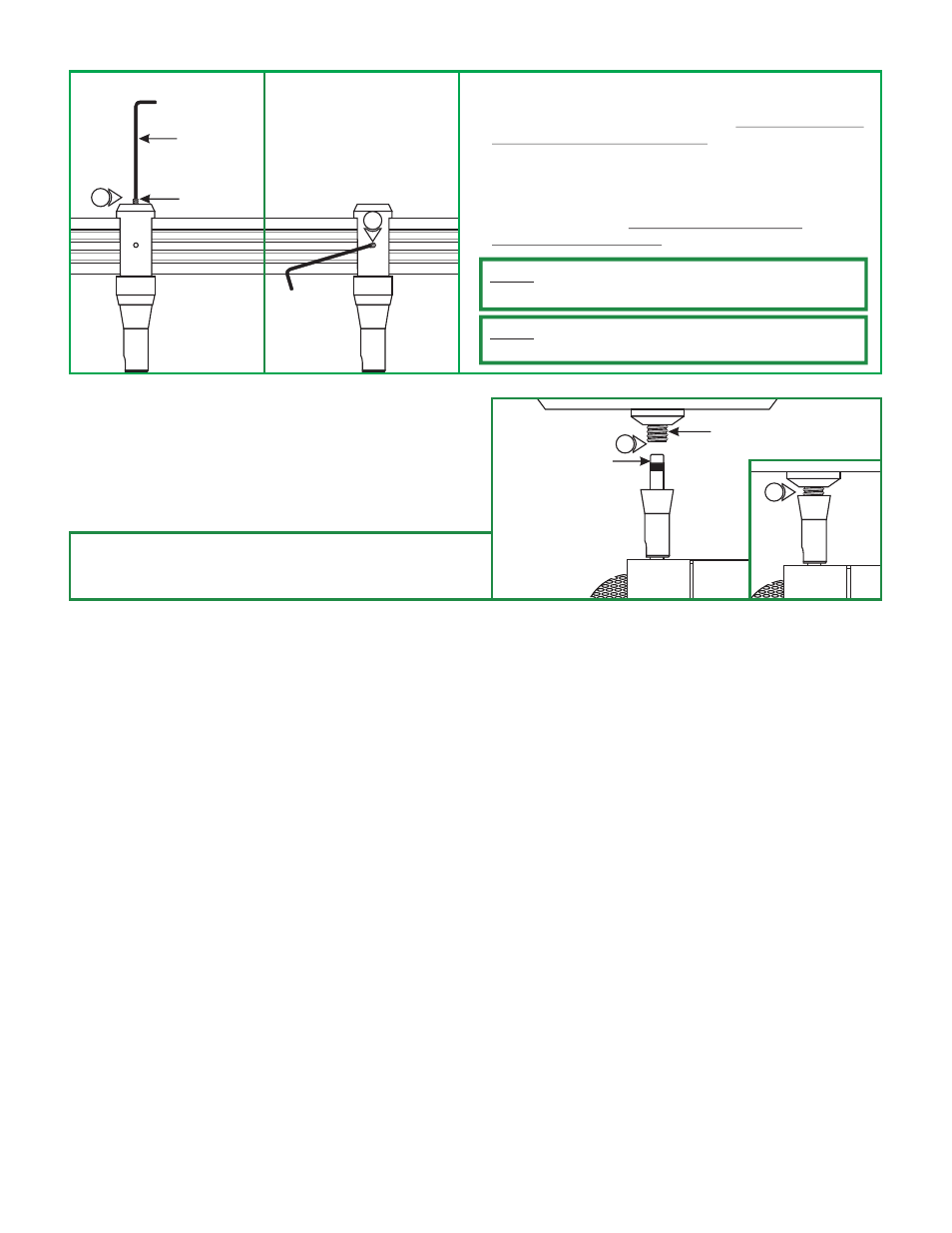

1: Use fingers to tighten the Fast Jack fixture connector into
the Fast Jack canopy connector.
FAST JACK CANOPY
CONNECTOR
FAST JACK FIXTURE
CONNECTOR
F
E
3: To power the fixture from circuit #1, top and bottom
(neutral) rails, tighten the M3 set screw on top of the
housing with the 1.5mm Allen wrench. Make sure this set
screw connection is very tight.
4: To power the fixture from circuit #2, middle and bottom
(neutral) rails, remove the M3 set screw from top of the
housing and tighten it into the side threaded hole with the
1.5mm Allen wrench. Make sure this set screw
connection is very tight.
NOTE:
set screw to select a circuit on the Monorail 2 Circuit connector.
To avoid shorting the system, do not use more than one
NOTE: Do not load either circuit over the maximum system
rating.
Install the Fixture to Fast Jack
Canopy (FJP-2SQ-_, FJP-4SQ-_,
FJP-4RD-_)
3
4
3
1
CIRCUIT #1 CIRCUIT #2
1
2
N
1
2
N
1
M3 SET
SCREW
1.5MM ALLEN
WRENCH
