Edge Lighting Harley with Gobo - Manual (Page 4)

4

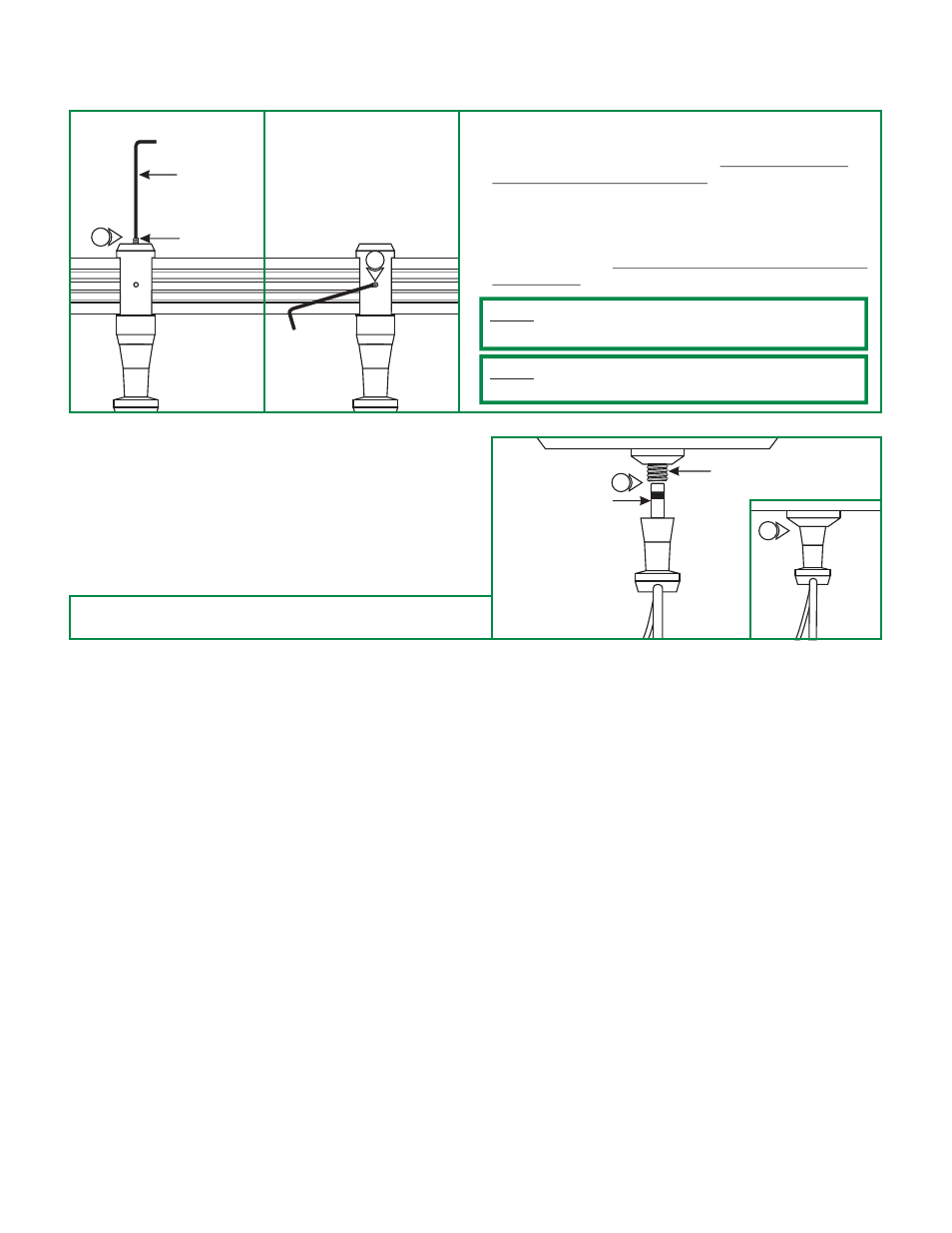

1: Use fingers to tighten the Fast Jack fixture connector into
the Fast Jack canopy connector.
FAST JACK CANOPY
CONNECTOR
FAST JACK FIXTURE
CONNECTOR
K
J
3: To power the fixture from circuit #1, top and bottom
(neutral) rails, tighten the #4-40 set screw on top of the
housing with the 0.05 Allen wrench. Make sure this set
screw connection is very tight.
4: To power the fixture from circuit #2, middle and bottom
(neutral) rails, remove the #4-40 set screw from top of the
housing and tighten it into the side threaded hole with the
0.05 Allen wrench. Make sure this set screw connection
is very tight.
NOTE:
set screw to select a circuit on the Monorail 2 Circuit connector.
To avoid shorting the system, do not use more than one
NOTE: Do not load either circuit over the maximum system
rating.
Install the Fixture to Fast Jack
Canopy (FJP-2SQ-_, FJP-4SQ-_,
FJP-4RD-_)
#4-40 SET
SCREW
0.05 ALLEN
WRENCH
3
4
1
1
CIRCUIT #1 CIRCUIT #2
1
2
N
1
2
N
