Counters Management
Tariffs examples
33
Avg calculation, graphs
34
40
43
DUAL TARIFF management
trf
end
start
WHOLE YEAR
WHOLE YEAR
1
OO:OO O8:OO
2
O8:OO 2O:OO
1
2O:OO OO:OO
TARIFF
1
24
6
12
18
2
4
8
10
14
16
20
22
trf1
trf2
trf1

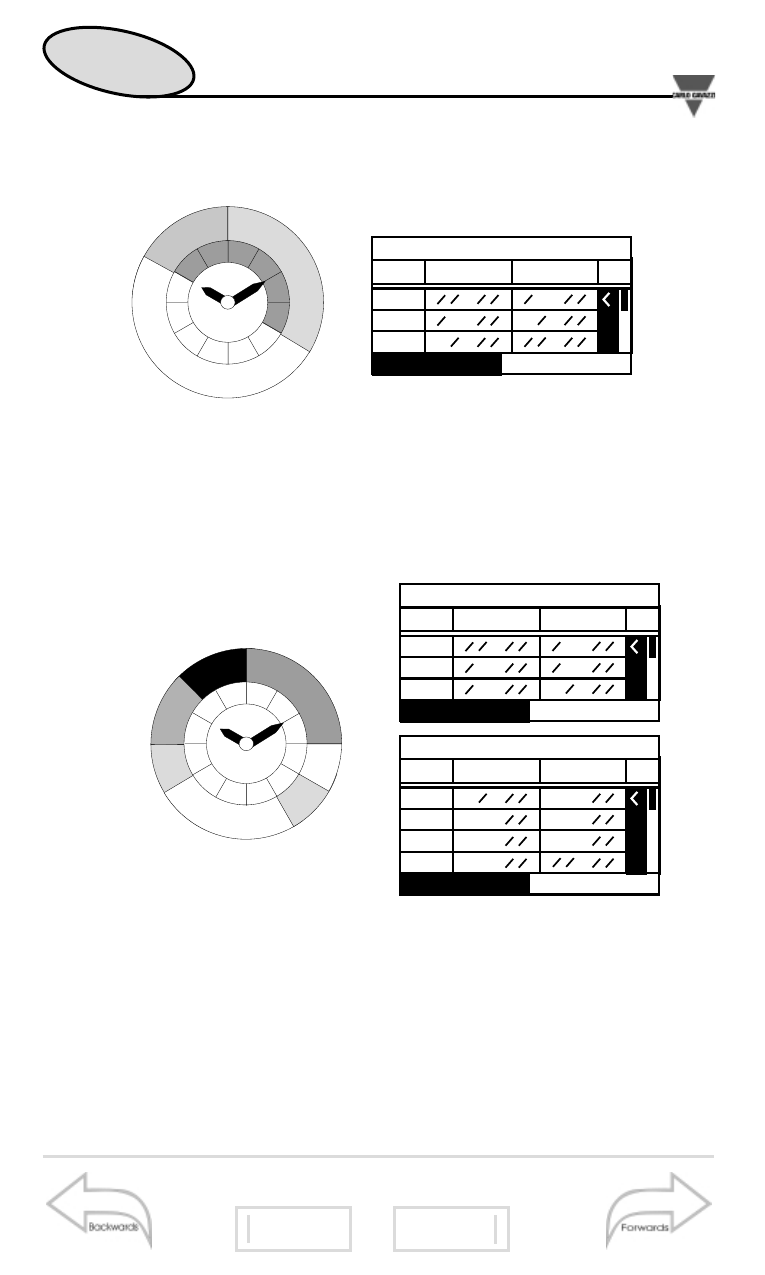

As you can see on the figure above, there’s a daily division
into three periods with two different tariffs.
MULTI TARIFF management
trf
end
start
WINTER
1
OO:OO O6:OO
2
O6:OO O8:OO
3
O8:OO 1O:OO
TARIFF
1
trf1
24
6
12
18
2
4
8
10
14
16
20
22
trf2
trf2
trf3
trf3
trf4
trf1
trf
end
start
WINTER
2
1O:OO 16:OO
3
16:OO 18:OO
4
18:OO 21:OO
TARIFF
2
1
21:OO OO:OO
On the picture above you can see four different tariffs which
are coupled to seven different periods of the day.
