Displaying of the variables

Input programming

Load profile

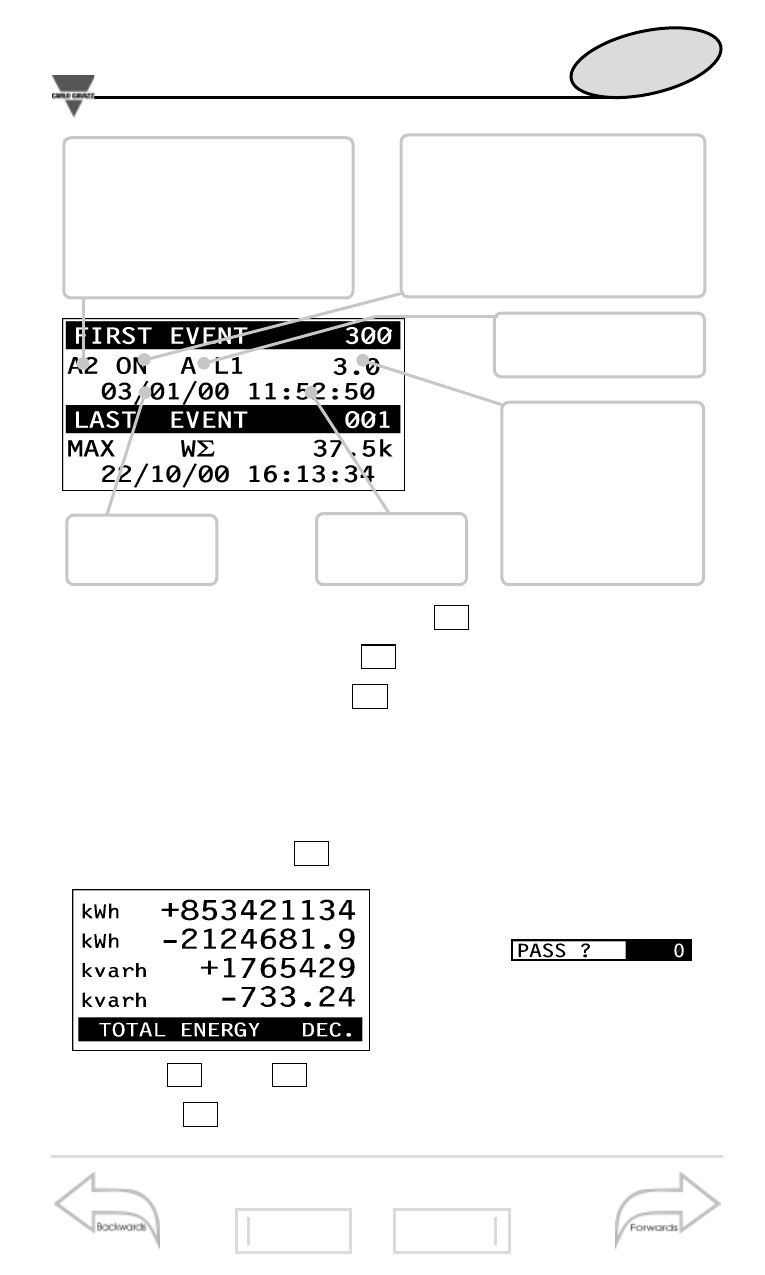

To reset all the events press the

key, to continue the

reset procedure press the

key again: to exit from the

reset procedure press the

key.

❑

Pass "999": display of energy consumption storage

(Only if the RS232+RTC is present)

The RS232+RTC module allows the user to display the storage
of the energy consumption of the previous two months. To enter

this function, press the

key in any one of the measuring page

(excluded the “load profiles”),
when the instrument asks for the

pass code

set the value “999”: the instru-
ment shows you the page where
the energy values are stored.

Use the

and

keys to display the partial values;

press the

key to exit.

▼

▲

Control type:

alarm (e.g.: A2),
diagnostics (e.g.: D1),
maximum value (MAX),
minimum value (MIN).

Only for alarms and diag-

nostics: detection of the
abnormal condition (ON) or
return to the normal condi-
tion (OFF)

Variable being

controlled.

Alarms: value of

the ON alarm;
Max and Min log-
ging: maximum
and minimum
measured values.

Time of the

event.

Date of the

event.
