Displaying of the variables
Pass 1000
7
Front panel
8
14
16
❑
Page "27" (5 without measuring input module)
Display of Gas and Water meters
keys disabled. Depending on the setting, the instru-
ment may display one only of the following meter combina-
tions: Gas; Gas with Gas in night tariff; Gas and Water. The
water and gas meters are managed by the digital inputs.
❑

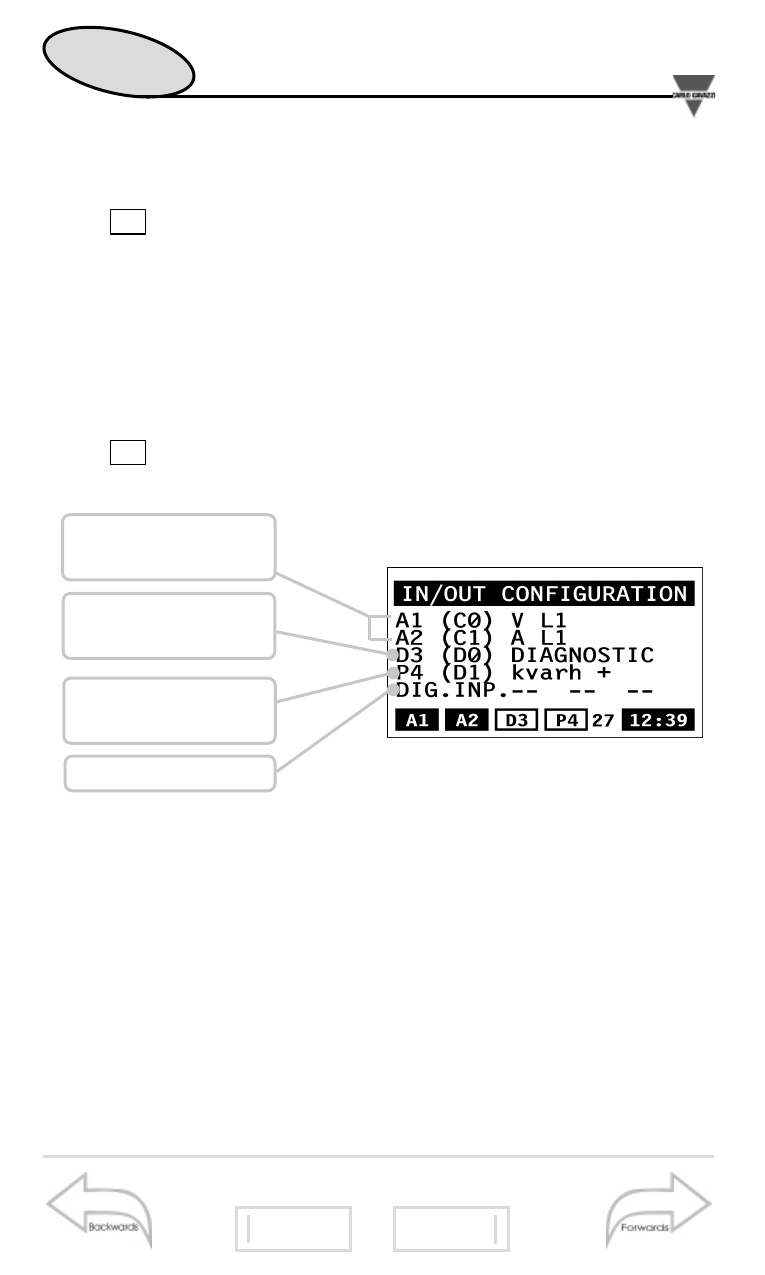

Page “28” (6 without measuring input module)
Displaying of instrument configuration
key disabled. Page 28 shows the configuration of
the main input (IN) and output (OUT).
F
F
Alarms
(A1-A2-A3-A4).
Diagnostic
(D1-D2-D3-D4).
Digital inputs.
Puse outputs
(P1-P2-P3-P4).
The letters and numbers between parenthesis are referred to
the relevant slots, while the text on their right shows the vari-
able referred to the output. With reference to the digital inputs
(DIG.INP.), the ON/OFF status of each one of them is shown.
❑
Displaying of load profiles
The load profiles are a simple graphic representation use-
ful to highlight the trend of the load consumption (integrated
power) with reference to the installed power (as per contract).
This function needs the serial module AR1041 to be installed.
The instrument calculates and displays the load profiles
