Programming

Events selection

List of digital inputs

▼

▲

Any modification to the system settings will make
the MIN/MAX values, the events and the energy
meters reset.

■

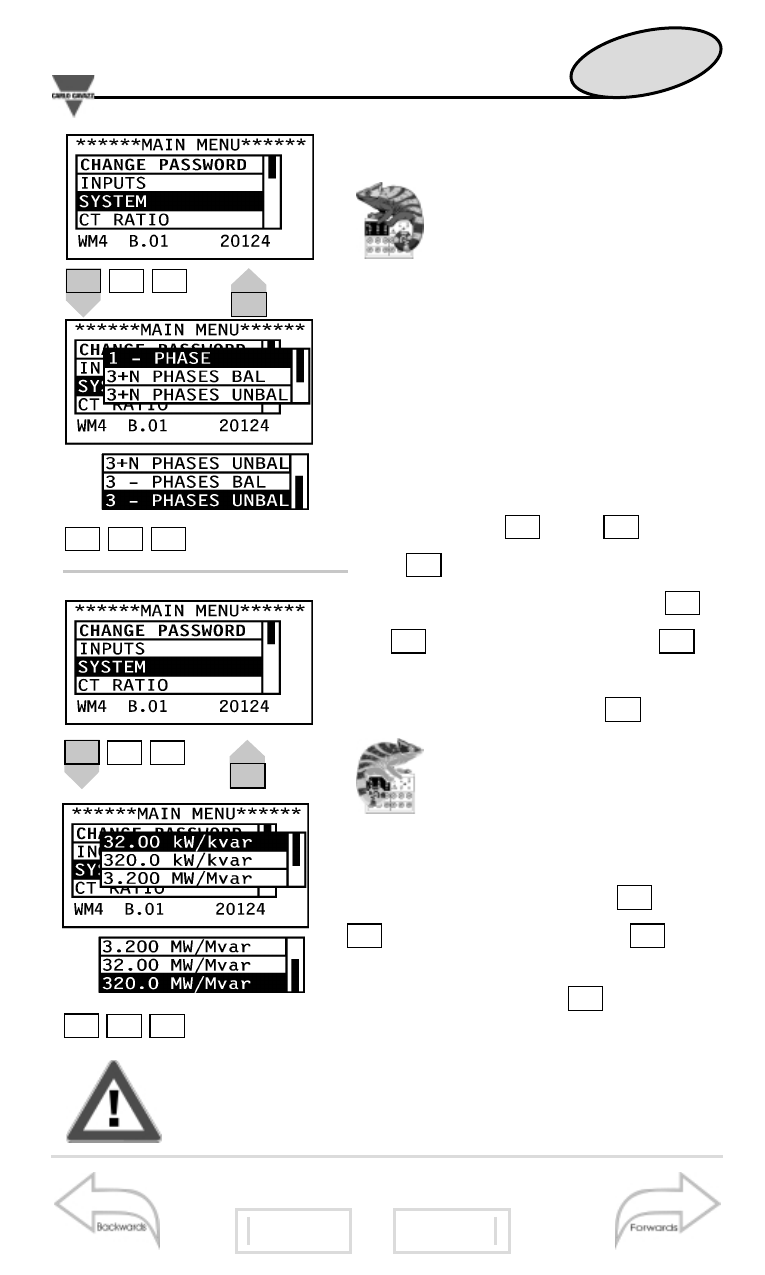

System

This function allows the
user to select the type of
electrical system by

choosing among single phase (1-
phase), balanced three-phase plus
neutral (3+N phases bal.), unbal-
anced three-phase plus neutral (3+N
phases unbal.), three phase bal-
anced (3 phases bal) and three-
phase unbalanced (3 phases unbal).
Choose the SYSTEM function by

means of the

and

keys,

press

to confirm, then select the

desired system by means of the

and

keys and confirm with

To reset your choice and go back to

the main menu, press the

key.

If the measuring input
module is not present, the
menu is to be modified by

displaying the selectable full scale
powers. Select the required full scale

power by means of the

and

keys and confirm with

. To

reset your choice and go back to the

main menu, press the

key.

▼

▲

▼

▲

▼

▲

▼

▲

▼

▲

▼

▲
